23. ACCESSORIES

Click Here for Microfiche Usage Tip

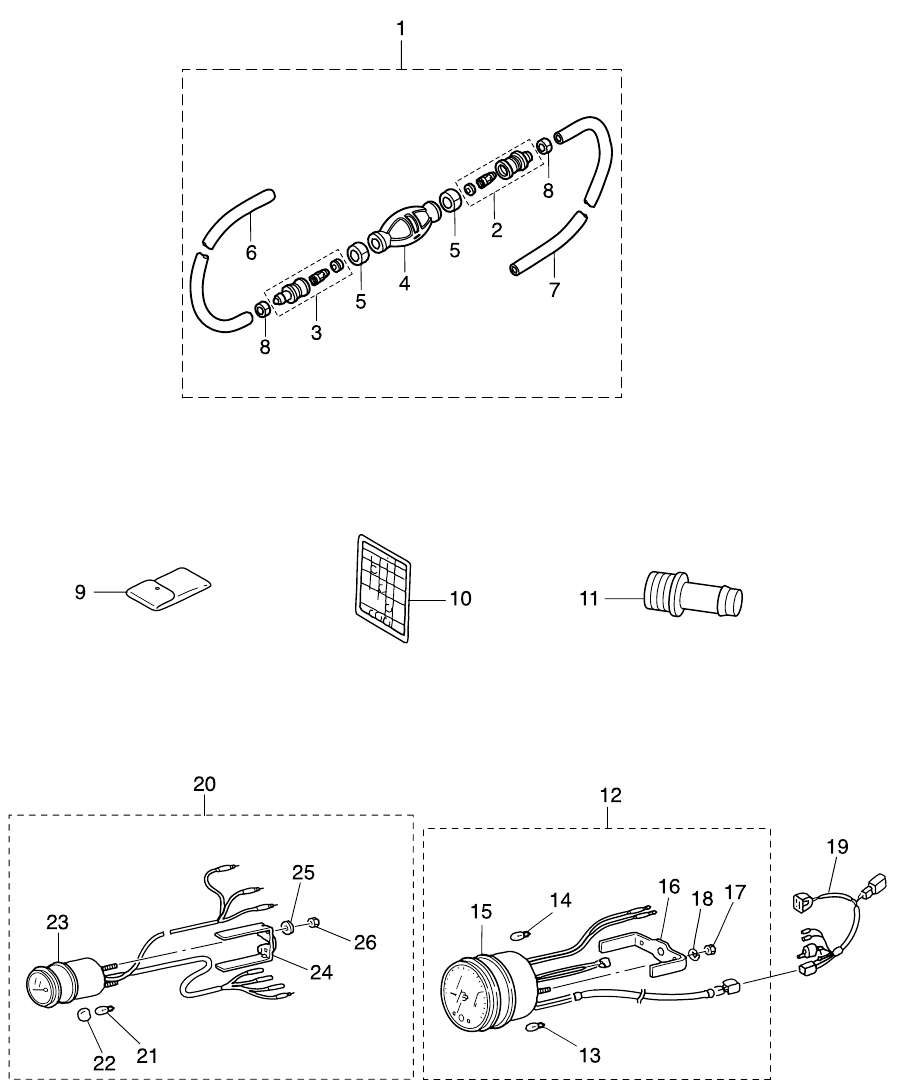

(1) PRIMER BULB ASSY(1) PRIMER BULB ASSY(2) JOINT ASSY (INLET)(3) JOINT ASSY (OUTLET)(4) PRIMER BULB(4) PRIMER BULB(5) CLAMP(5) CLAMP(6) HOSE(6) LOW PERMEATION HOSE L=700(7) HOSE(7) LOW PERMEATION HOSE L=1600(8) CLAMP(8) CLAMP(9) TOOL KIT(10) BUZZER CAUTION DECAL(11) HOSE JOINT (WATER-WORKS)(12) TACHOMETER (BLACK)(12) TACHOMETER (WHITE)(12) TACHOMETER W/OIL LAMP(13) OIL BULB 12V-1.7W(14) METER BULB 12V-1.8W(15) METER DAMPER(16) FITTING PLATE(17) NUT(18) SPRING WASHER(19) METER LEAD WIRE L=8000(20) TRIM METER (BLACK)(20) TRIM METER (WHITE)(20) TRIM METER ASSY(21) METER BULB 12V-1.7W(22) METER BULB CAP(23) METER DAMPER(24) FITTING PLATE(25) SPRING WASHER(26) NUT



Parts List
2014 :: 115 HP :: TLDI Nissan NSD115A2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3T1702001M 3T1-70200-1 STD $81.34 1
(1) PRIMER BULB ASSY 3FF702004M 3FF-70200-4 LOW PERMEATION PARTS / FOR USA MODEL $81.34 1
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 STD $22.31 1
(4) PRIMER BULB 3GF702111M 3GF-70211-0 LOW PERMEATION PARTS / FOR USA MODEL $53.09 1
(5) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(6) RUBBER HOSE 98AB70700M 98AB-7-0700 STD / 98AB-701000 $13.44 1
(6) LOW PERMEATION HOSE L=700 3GF702411M 3GF-70241-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(7) HOSE 98AB701600M 98AB-701600 STD / 98AB-701000 X2 $13.44 1
(7) LOW PERMEATION HOSE L=1600 3GF702401M 3GF-70240-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(8) CLAMP 332702010M 332-70201-0 $2.07 2
(9) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(10) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(11) HOSE JOINT 3T1724050M 3T1-72405-0 $5.73 1
(12) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(12) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(12) TACHOMETER 3Z5726401M 3Z5-72640-1 FOR JAPAN $0.00 1 Sold Out View More Details
(13) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR 3Z5-72640-1 $3.27 3
(14) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3Z5-72640-1 $0.00 1 Sold Out View More Details
(15) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3Z5-72640-1 $3.27 1
(16) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3Z5-72640-1 $25.33 1
(17) NUT 9302030500M 930203-0500 FOR 3Z5-72640-1 $0.60 2
(18) SPRING WASHER 9413030500M 941303-0500 FOR 3Z5-72640-1 $0.90 2
(19) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(20) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(20) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(20) TRIM METER 3T1725710M 3F3-72574-1 $0.00 1 Sold Out View More Details
(21) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 FOR 3T1-72571-0 $3.85 1 Sold Out View More Details
(22) METER BULB CAP 3T1726530M 3T1-72653-0 FOR 3T1-72571-0 $2.40 1 Sold Out View More Details
(23) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3T1-72571-0 $2.68 1
(24) FITTING PLATE 3T1726650M 3T1-72665-0 FOR 3T1-72571-0 $12.61 1 Sold Out View More Details
(25) SPRING WASHER 9413030400M 941303-0400 FOR 3T1-72571-0 $0.90 2
(26) NUT 9302030400M 930203-0400 FOR 3T1-72571-0 $0.00 2 Sold Out View More Details
