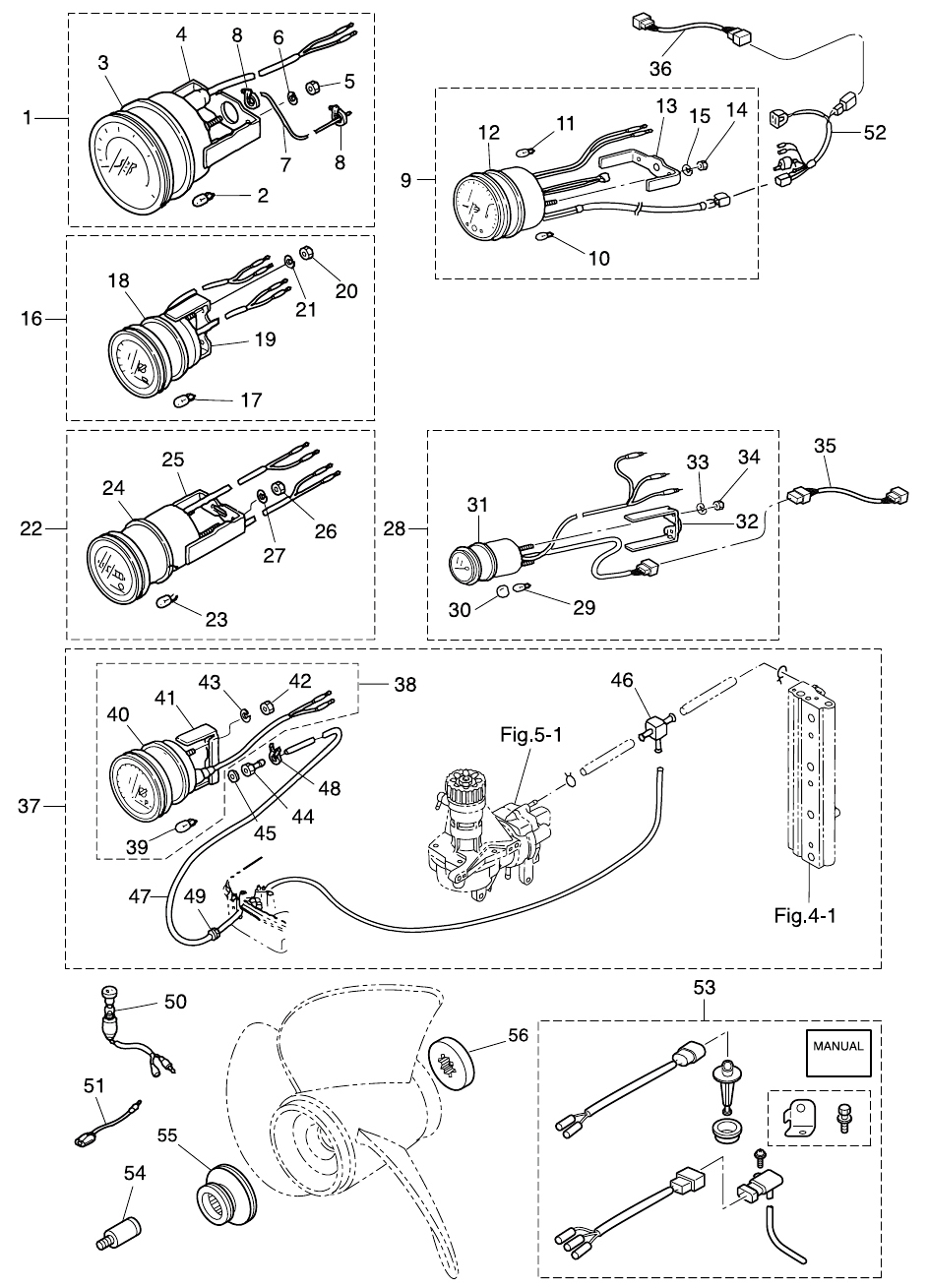

26. OPTIONAL PARTS (2)

Click Here for Microfiche Usage Tip
(1) SPEEDOMETER (BLACK)(1) SPEEDOMETER (WHITE)(1) SPEEDOMETER ASSY (75MPH)(1) SPEEDOMETER ASSY (50MPH)(2) METER BULB 12V-1.8W(3) METER DAMPER(4) FITTING PLATE(5) NUT(6) SPRING WASHER(7) SPEEDOMETER TUBE L=6000(8) SPEEDOMETER BAND(8) SPEEDOMETER BAND(9) TACHOMETER (BLACK)(9) TACHOMETER (WHITE)(9) TACHOMETER W/OIL LAMP(10) OIL BULB 12V-1.7W(11) METER BULB 12V-1.8W(12) METER DAMPER(13) FITTING PLATE(14) NUT(15) SPRING WASHER(16) VOLTMETER (BLACK)(16) VOLTMETER (WHITE)(16) VOLTMETER ASSY(17) METER BULB 12V-1.7W(18) METER DAMPER(19) FITTING PLATE(20) NUT(21) SPRING WASHER(22) HOUR METER (BLACK)(22) HOUR METER (WHITE)(22) HOUR METER ASSY(23) METER BULB 12V-1.7W(24) METER DAMPER(25) FITTING PLATE(26) NUT(27) SPRING WASHER(28) TRIM METER (BLACK)(28) TRIM METER (WHITE)(28) TRIM METER ASSY(29) METER BULB 12V-1.7W(30) METER BULB CAP(31) METER DAMPER(32) FITTING PLATE(33) SPRING WASHER(34) NUT(35) EXTENSION CORD (TRIM SENSOR) L=6000(35) EXTENSION CORD (TRIM SENSOR) L=2000(36) EXTENSION CORD L=2000 (2P)(37) WATER PRESSURE METER (BLACK)(37) WATER PRESSURE METER (WHITE)(37) WATER PRESSURE METER KIT(38) WATER PRESSURE METER ASSY(39) METER BULB 12V-1.7W(40) METER DAMPER(41) FITTING PLATE(42) NUT(43) SPRING WASHER(44) WATER PRESSURE METER NIPPLE(45) GASKET 2-8-1(46) PIPE JOINT 4-4(47) HOSE(48) CLIP o10(49) GROMMET 16-2.5(50) METER LAMP SWITCH(51) ASSIST CORD (BLU) L=200(51) ASSIST CORD (BLK) L=200(51) ASSIST CORD (RED) L=200(52) METER LEAD WIRE L=8000(53) ALTITUDE ADJUSTMENT KIT(54) FLUSHING PLUG(55) THRUST HOLDER(56) STOPPER



Parts List
2014 :: 75 HP :: TLDI Tohatsu MD75C2 :: OPTIONAL PARTS (2)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(1) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(1) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 $0.00 1 Sold Out View More Details
(1) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 $0.00 1 Sold Out View More Details
(2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3E0-72649-0 & 3E0-72648-0 $0.00 1 Sold Out View More Details
(3) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3E0-72649-0 & 3E0-72648-0 $3.27 1
(4) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3E0-72649-0 & 3E0-72648-0 $25.33 1
(5) NUT 9302030500M 930203-0500 FOR 3E0-72649-0 & 3E0-72648-0 $0.60 2
(6) SPRING WASHER 9413030500M 941303-0500 FOR 3E0-72649-0 & 3E0-72648-0 $0.90 2
(7) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 FOR 3E0-72649-0 & 3E0-72648-0 $27.66 1 Sold Out View More Details
(8) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 FOR 3E0-72649-0 & 3E0-72648-0 $2.07 2 Sold Out View More Details
(9) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER 3Z5726401M 3Z5-72640-1 FOR JAPAN $0.00 1 Sold Out View More Details
(10) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR 3Z5-72640-1 $3.27 3
(11) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3Z5-72640-1 $0.00 1 Sold Out View More Details
(12) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3Z5-72640-1 $3.27 1
(13) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3Z5-72640-1 $25.33 1
(14) NUT 9302030500M 930203-0500 FOR 3Z5-72640-1 $0.60 2
(15) SPRING WASHER 9413030500M 941303-0500 FOR 3Z5-72640-1 $0.90 2
(16) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(16) VOLTMETER ASSY 3GL725290M 3GL725290M $34.36 1
(16) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(17) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72529-0 $0.00 1 Sold Out View More Details
(18) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72529-0 $2.68 1
(19) FITTING PLATE 3B7726620M 3B7-72662-0 FOR 3E0-72529-0 $19.58 1 Sold Out View More Details
(20) NUT 9302030400M 930203-0400 FOR 3E0-72529-0 $0.00 2 Sold Out View More Details
(21) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72529-0 $0.90 2
(22) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(22) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(22) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(23) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72524-0 $0.00 1 Sold Out View More Details
(24) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72524-0 $2.68 1
(25) FITTING PLATE 3B7726640M 3B7-72664-0 FOR 3E0-72524-0 $19.58 1 Sold Out View More Details
(26) NUT 9302030400M 930203-0400 FOR 3E0-72524-0 $0.00 2 Sold Out View More Details
(27) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72524-0 $0.90 2
(28) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(28) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(28) TRIM METER 3T1725710M 3F3-72574-1 $0.00 1 Sold Out View More Details
(29) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 FOR 3T1-72571-0 $3.85 1 Sold Out View More Details
(30) METER BULB CAP 3T1726530M 3T1-72653-0 FOR 3T1-72571-0 $2.40 1 Sold Out View More Details
(31) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3T1-72571-0 $2.68 1
(32) FITTING PLATE 3T1726650M 3T1-72665-0 FOR 3T1-72571-0 $12.61 1 Sold Out View More Details
(33) SPRING WASHER 9413030400M 941303-0400 FOR 3T1-72571-0 $0.90 2
(34) NUT 9302030400M 930203-0400 FOR 3T1-72571-0 $0.00 2 Sold Out View More Details
(35) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(35) TRIM METER EXTENSION CORD 3Z4725730M 3Z4-72573-0 $29.42 1
(36) 2P EXTENSION CORD 3T5761120M 3T5-76112-0 2P $48.83 1
(37) WATER PRESSURE METER KIT 3GF725980M 3GF725980M $103.50 1
(37) WATER PRESSURE METER KIT 3GL725980M 3GL725980M $103.50 1
(37) WATER PRESSURE METER KIT 3E0725270M 3E0-72527-0 $0.00 1 Sold Out View More Details
(38) WATER PRESSURE METER 3E0725980M 3E0-72598-0 FOR 3E0-72598-0 $0.00 1 Sold Out View More Details
(39) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72598-0 $0.00 1 Sold Out View More Details
(40) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72598-0 $2.68 1
(41) FITTING PLATE 3B7726630M 3B7-72663-0 FOR 3E0-72598-0 $19.58 1 Sold Out View More Details
(42) NUT 9302030500M 930203-0500 FOR 3E0-72598-0 $0.60 2
(43) SPRING WASHER 9413030500M 941303-0500 FOR 3E0-72598-0 $0.90 2
(44) WATER PRESSURE METER NIPPLE 3B7726410M 3B7-72641-0 FOR 3E0-72598-0 $0.00 1 Sold Out View More Details
(45) GASKET 2-8-1 121331590M 121-33159-0 FOR 3E0-72598-0 $0.97 1
(46) HOSE JOINT T TYPE 394700130M 394-70013-0 FOR 3E0-72598-0 $2.19 1
(47) HOSE 98AB506000M 98AB-506000 FOR 3E0-72598-0 / 98AB-501000 X6 $11.41 1
(48) CLIP ø10 338022150M 338-02215-0 FOR 3E0-72598-0 $1.41 1
(49) GROMMET 345671930M 345-67193-0 FOR 3E0-72598-0 $3.00 1
(50) METER LAMP SWITCH 353725211M 353-72521-1 $19.47 1
(51) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 1
(51) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(51) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(52) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(53) ALTITUDE ADJUSTMENT KIT 3GF102300M 3GF-10230-0 HIGH ALTITUDE $110.13 1
(54) FLUSHING ATTACHMENT 3B7600070M 3B7-60007-0 $8.05 1
(55) THRUST HOLDER 3B7642312M 3B7642312M OPT / TEST PROPELLER $72.68 1
(56) STOPPER 3B7-64233-1 NA OPT / TEST PROPELLER $0.00 1 Sold Out View More Details
