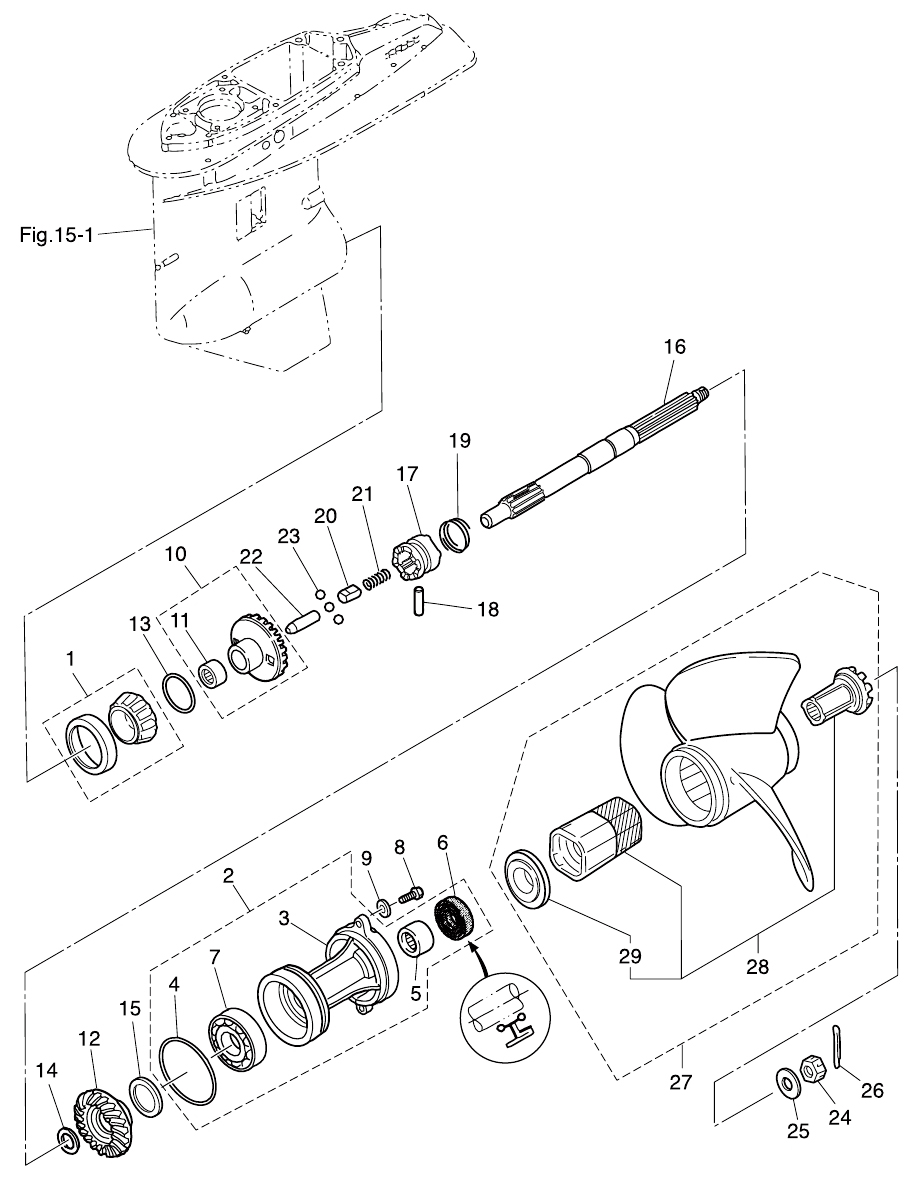

16. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) TAPERED ROLLER BEARING 30209(2) PROPELLER SHAFT HOUSING ASSY(3) PROPELLER SHAFT HOUSING(4) O-RING 3.1-94.4(5) ROLLER BEARING 30-40-30(6) OIL SEAL 30-50-12(7) BALL BEARING 6208(8) PRE-COATED BOLT 8-30(9) WASHER(10) BEVEL GEAR ASSY (A)(11) ROLLER BEARING 25-32-26(12) BEVEL GEAR C(13) SHIM 47-57-0.15(13) SHIM 47-57-0.1(14) WASHER T=3.2(14) WASHER T=3.0(14) WASHER T=2.8(15) SHIM 42-50-0.15(15) SHIM 42-50-0.1(16) PROPELLER SHAFT(17) CLUTCH(18) PIN(19) SNAP(20) SPRING RETAINER L=30.5(21) SPRING(22) PUSH ROD(23) BALL(24) PROPELLER NUT(25) WASHER 17-32-3(26) SPLIT PIN 3-25(27) PROPELLER ASSY (11")(27) PROPELLER ASSY (13")(27) PROPELLER ASSY (15")(27) PROPELLER ASSY (16")(27) PROPELLER ASSY (17")(27) PROPELLER ASSY (19")(27) PROPELLER ASSY (21")(28) PROPELLER HUB KIT(29) FORWARD THRUST WASHER



Parts List
2014 :: 75 HP :: TLDI Nissan NSD75C2 :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 30209 3C7602150M 3C7-60215-0 $61.67 1
(2) PROPELLER SHAFT HOUSING ASSY 3B7Q873231 3B7Q87323-1 $157.69 1
(3) PROPELLER SHAFT HOUSING 3B7Q601011 3B7S60101-1 $80.99 1
(4) O-RING 3.1-94.4 3B7601030M 3B7-60103-0 $4.54 1
(5) NEEDLE BEARING 30-40-30 3B7602110M 3B7-60211-0 $33.06 1
(6) OIL SEAL 30-50-12 3B7601110M 3B7-60111-0 $11.18 1
(7) BEARING 6208 960106208M 9601-0-6208 $30.77 1
(8) PRE-COATED BOLT 8-30 3C7601082M 3C7-60108-0 $5.92 2
(9) WASHER 9402E30800M 9402E3-0800 $1.11 2
(10) BEVEL GEAR ASSY (A) 3FW640100M 3FW-64010-0 $233.08 1
(11) NEEDLE BEARING 25-32-26 3B7640110M 3B7-64011-0 $34.51 1
(12) BEVEL GEAR C 3Y7640930M 3Y7-64093-0 $168.25 1
(13) SHIM 47-57-0.15 3B7640150M 3B7-64015-0 $0.87 0
(13) SHIM 47-57-0.1 3B7640160M 3B7-64016-0 $1.42 0
(14) BEVEL GEAR C WASHER 3B7640320M 3B7-64032-0 $34.08 0
(14) BEVEL GEAR C WASHER 3B7640340M 3B7-64034-0 $34.08 0
(14) BEVEL GEAR C WASHER 3B7640350M 3B7-64035-0 $7.23 0
(15) SHIM 42-50-0.15 3B7640360M 3B7-64036-0 $0.92 0 Sold Out View More Details
(15) SHIM 42-50-0.1 3B7640370M 3B7-64037-0 $0.87 0 Sold Out View More Details
(16) PROPELLER SHAFT 3B7642110M 3B7-64211-0 $295.84 1 Sold Out View More Details
(17) CLUTCH 3T1642152M 3T1-64215-2 $222.87 1
(18) CLUTCH PIN 3B7642180M 3B7-64218-0 $3.39 1
(19) CLUTCH PIN SNAP 3B7642191M 3B7-64219-1 $5.18 1
(20) SPRING RETAINER L=30.5 3T1642220M 3T1-64222-0 $11.00 1
(21) CLUTCH SPRING 346642210M 346-64221-0 $1.61 1
(22) PUSH ROD 3T1642230M 3T1-64223-0 $10.08 1
(23) BALL 3T1642240M 3T1-64224-0 $1.27 3
(24) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
(25) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(26) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
(27) PROPELLER ASSY (11) 3N4B645231 3E0-64176-0 OPT 3 X 355 X 279 $142.37 1
(27) PROPELLER ASSY (13) 3N4B645271 3E0-64181-0 OPT 3 X 355 X 330 $142.37 1
(27) PROPELLER ASSY (15) 3N4B645321 3E0-64185-0 OPT 3 X 349 X 381 $142.37 1
(27) PROPELLER ASSY (16) 3N4B645341 3E0-64187-0 OPT 3 X 336 X 406 $0.00 1 Sold Out View More Details
(27) PROPELLER ASSY (17) 3N4B645361 3E0-64189-0 OPT 3 X 336 X 432 $142.37 1
(27) PROPELLER ASSY (19) 3N4B645411 3N4B64541-1 OPT 3 X 330 X 483 $142.37 1
(27) PROPELLER ASSY (21) 3N4B645451 3N4B64545-1 OPT 3 X 324 X 533 $251.67 1 Sold Out View More Details
(28) PROPELLER HUB KIT 3Y9642380M 3Y9-64238-0 $0.00 1 Sold Out View More Details
(29) FORWARD THRUST WASHER 3E0642350M 3E0-64235-0 $142.56 1 Sold Out View More Details
