15. BOTTOM COWL

Click Here for Microfiche Usage Tip

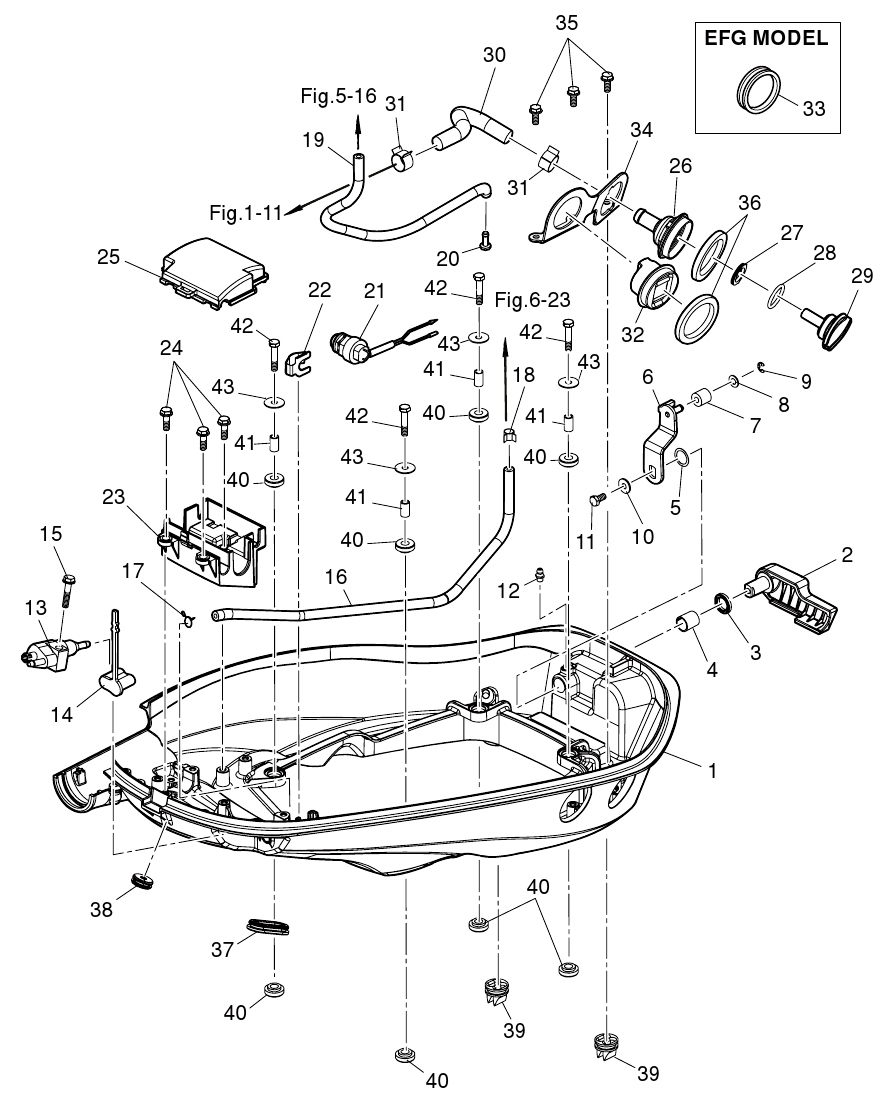

(1) BOTTOM COWL(2) HOOK LEVER(3) SEAL RING 13.8-22-3.7(4) HOOK LEVER BUSHING 14-16.5-17.7(5) WAVE WASHER D=14(6) COVER HOOK(7) ROLLER 6.1-14.7-14(8) WASHER 6.5-21-1(9) E-RING D=5(10) WASHER 6-16-1.5(11) BOLT(12) GREASE FITTING(13) FUEL CONNECTOR (MALE)(14) FUEL CONNECTOR PROTECTOR(15) BOLT(16) HOSE(16) LOW PERMEATION HOSE o5-o10, L=450(17) CLIP o10(18) CLIP o9.4(19) WATER HOSE(20) NIPPLE 6-8-11(21) NEUTRAL SWITCH(22) NEUTRAL SWITCH ACTUATOR(23) CABLE TERMINAL HOLDER(24) BOLT(25) COVER(26) FLUSHING CONNECTOR(27) SEAL RING(28) O-RING 3.1-24.4(29) FLUSHING CONNECTOR CAP(30) FLUSHING HOSE(31) CLIP o17.8(31) CLIP o17.8(32) PTT SWITCH ASSY(33) GROMMET(34) FLUSHING CONNECTOR BRACKET(35) BOLT(36) GASKET(37) GROMMET 40-18-3(38) GROMMET(39) GROMMET(39) GROMMET(40) MOUNT 8.5-14-2.5(40) MOUNT 8.5-14-2.5(40) MOUNT 8.5-14-2.5(40) MOUNT 8.5-14-2.5(40) MOUNT 8.5-14-2.5(40) MOUNT 8.5-14-2.5(40) MOUNT 8.5-14-2.5(41) SPACER 6.2-9-15.7(41) SPACER 6.2-9-15.7(41) SPACER 6.2-9-15.7(41) SPACER 6.2-9-15.7(42) BOLT(42) BOLT(42) BOLT(42) BOLT(43) WASHER 6.5-21-1(43) WASHER 6.5-21-1(43) WASHER 6.5-21-1(43) WASHER 6.5-21-1



Parts List
2014 :: 50 HP :: 4 Stroke Nissan NSF50A :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3KYQ671000 3KYQ671000 $346.04 1 Sold Out View More Details
(2) HOOK LEVER 3KY671410M 3KY671410M $17.74 1
(3) SEAL RING 338671470M 338-67147-0 $1.85 1
(4) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.66 1
(5) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(6) COVER HOOK 3KY671420M 3KY671420M $21.81 1
(7) ROLLER 6.1-14.7 -14 3R0675170M 3R0-67517-0 $4.86 1 Sold Out View More Details
(8) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(9) E-RING D=5 9453030500M 945303-0500 $0.86 1
(10) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(11) BOLT 9101030612M 910113-0612 $0.84 1
(12) GREASE FITTING 344671771M 344-67177-0 $2.56 1 Sold Out View More Details
(13) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(14) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(15) BOLT 9101E35630M 9101E3-5630 $1.15 1 Sold Out View More Details
(16) RUBBER PIPE 98AB50450M 98AB-50-450 FUEL CONNECTOR-FUEL FILTER / STD 98AB-501000 $11.41 1
(16) LOW PERMEATION HOSE ø5-ø10 L=450 3KY040550M 3KY040550M FUEL CONNECTOR-FUEL FILTER / USA EPA-KRI-15G $27.29 1
(17) CLIP ø10 338022150M 338-02215-0 FUEL CONNECTOR SIDE $1.41 1
(18) CLIP ø 9.5 3AB351430M 121-35143-0 FUEL FILTER SIDE $1.30 1
(19) WATER HOSE 3KY652120M 3KY652120M FUEL COOLER-WATER NIPPLE $2.82 1
(20) WATER NIPPLE 3T1011380M 3T1-01138-0 BLACK $2.94 1
(21) NEUTRAL SWITCH 361760800M 361-76080-0 $20.43 1
(22) NEUTRAL SWITCH ACTUATOR 3KY760830M 3KY760830M $4.02 1
(23) CABLE TERMINAL HOLDER 3KY062810M 3KY062810M $12.80 1 Sold Out View More Details
(24) BOLT 9101035620M 910103-5620 $1.30 3
(25) COVER 3KZ069020M 3KZ069020M $4.33 1
(26) FLUSHING CONNECTOR 3T1724030M 3T1-72403-0 $9.85 1
(27) SEAL RING 3T1671470M 3T1-67147-0 $6.76 1
(28) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(29) FLUSHING CONNECTOR CAP 3T1724040M 3T1-72404-0 $10.98 1
(30) FLUSHING HOSE 3KY724100M 3KY724100M $13.26 1
(31) CLIP ø17.8 3T1077371M 3T1-07737-1 $2.37 2
(32) PTT SWITCH 3AC726150M 3AC-72615-0 FOR EPT MODEL $61.81 1
(33) GROMMET 3KY726180M 3KY726180M PTT SWITCH / FOR EFG MODEL $2.48 1
(34) FLUSHING CONNECTOR BRACKET 3KY724130M 3KY724130M $19.88 1
(35) BOLT 9101035616M 910103-5616 $1.15 3
(36) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 $3.27 2
(37) SHIFT ROD GROMMET 3R3662260M 3R3-66226-0 PTT CORD $1.44 1
(38) GROMMET 3KY671170M 3KY671170M TRIM SENDER $3.82 1
(39) GROMMET 3T1671610M 3T1-67161-0 DRAIN $4.78 2
(40) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(41) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
(42) BOLT 9101030630M 910103-0630 $1.21 4
(43) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
