14. POWER TRIM & TILT

Click Here for Microfiche Usage Tip

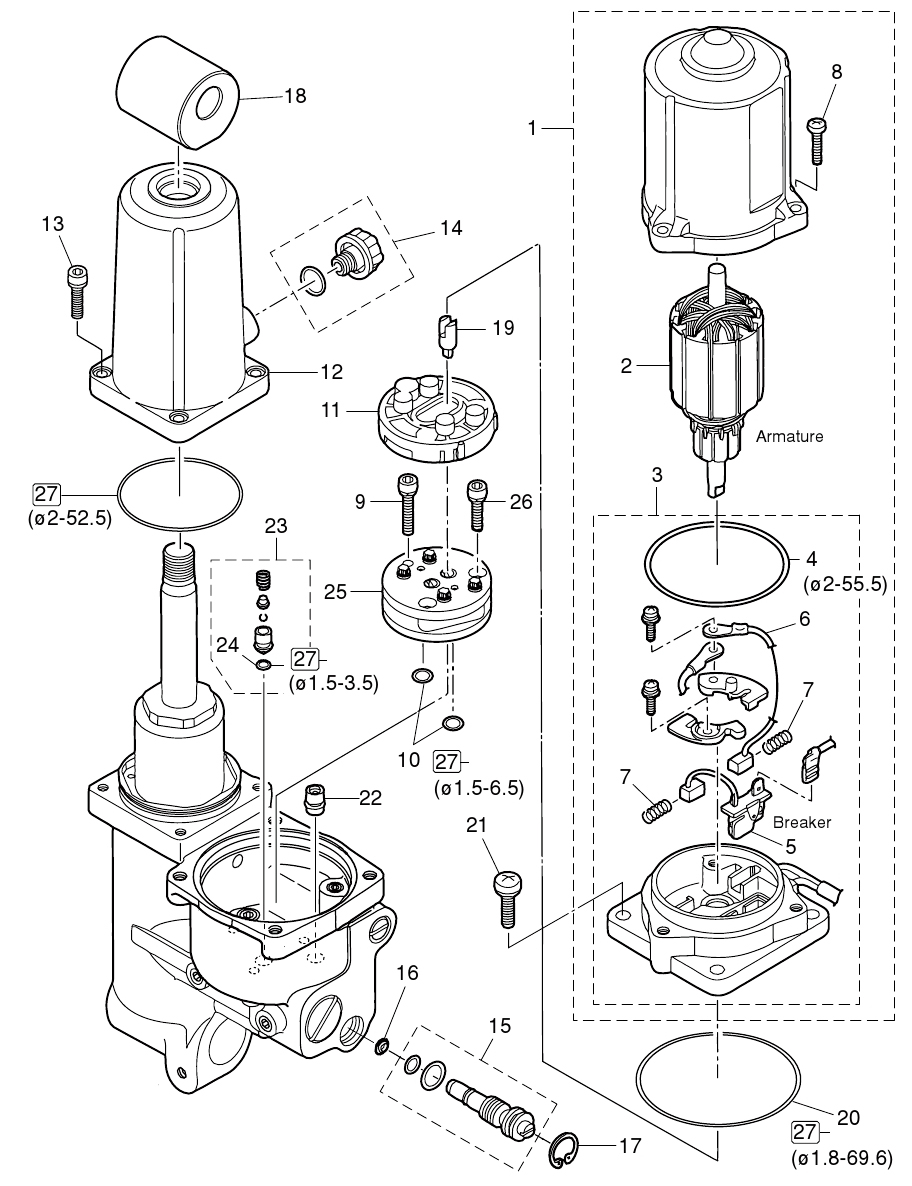

(1) MOTOR ASSY(2) ARMATURE ASSY(3) MOTOR BRACKET ASSY(4) O-RING 2-55.5(5) BREAKER(6) BRUSH(7) BRUSH SPRING(7) BRUSH SPRING(8) SCREW(9) BOLT(10) O-RING 1.5-6.5(11) FILTER(12) RESERVE TANK(13) BOLT(14) CAP ASSY(15) MANUAL VALVE ASSY(16) SEAL WASHER(17) C-RING(18) JOINT(19) COUPLING(20) O-RING 1.8-69.6(21) SCREW(22) VALVE ASSY(23) RELIEF VALVE ASSY(24) O-RING 1.5-3.5(25) PUMP(26) BOLT(27) PTT O-RING SET(27) PTT O-RING SET(27) PTT O-RING SET(27) PTT O-RING SET



Parts List
2014 :: 50 HP :: 4 Stroke Nissan NSF50A :: POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR 3Z5771800M 3Z5-77180-0 FOR PTT MODEL $548.44 1 Sold Out View More Details
(2) ARMATURE ASSY 3Z5771900M 3Z5-77190-0 $0.00 1 Sold Out View More Details
(3) MOTOR BRACKET ASSY 3Z5771920M 3Z5-77192-0 $317.17 1
(4) O-RING 2-55.5 3Z5771820M 3Z5-77182-0 $9.71 1 Sold Out View More Details
(5) BREAKER 3Z5771910M 3Z5-77191-0 $63.09 1
(6) BRUSH 3E0771830M 3E0-77183-0 $76.76 1
(7) BRUSH SPRING 3E0771840M 3E0-77184-0 $0.00 2 Sold Out View More Details
(8) SCREW 9215030520M 921503-0520 $0.46 3
(9) BOLT 3B7774311M 3B7-77431-1 $3.36 1
(10) O-RING 1.5 - 6.5 3B7774330M 3B7-77433-0 $3.34 2
(11) FILTER 3B7774341M 3B7-77434-1 $43.47 1
(12) RESERVOIR TANK 3Z5771650M 3Z5-77165-0 $107.12 1 Sold Out View More Details
(13) BOLT 3Z5771590M 3Z5-77159-0 $6.81 4
(14) CAP ASSY 3Z5772210M 3Z5-77221-0 $12.54 1
(15) MANUAL VALVE ASSY 3Z5771750M 3Z5-77175-0 $107.12 1
(16) SEAL WASHER 3R0771730M 3R0-77173-0 $6.76 1
(17) C-RING 3Z5771710M 3Z5-77171-0 $3.52 1
(18) JOINT METAL 3Z5773670M 3Z5-77367-0 $92.55 1
(19) COUPLING 3Z5771660M 3Z5-77166-0 $11.78 1
(20) O-RING 1.8-69.6 3B7771670M 3B7-77167-0 $6.35 1 Sold Out View More Details
(21) SCREW 3Z5771940M 3Z5-77194-0 $4.81 4
(22) VALVE ASSY 3Z5774600M 3Z5-77460-0 $32.81 1
(23) RELIEF VALVE ASSY 3Z5774500M 3Z5-77450-0 $35.66 1
(24) O-RING 1.5 - 3.5 3R0774510M 3R0-77451-0 $2.71 1
(25) PUMP 3B7774300M 3B7-77430-0 $0.00 1 Sold Out View More Details
(26) BOLT 3B7774321M 3B7-77432-1 $3.27 2
(27) O-RING SET 3Z5772250M 3Z5-77225-0 $16.63 1 Sold Out View More Details
