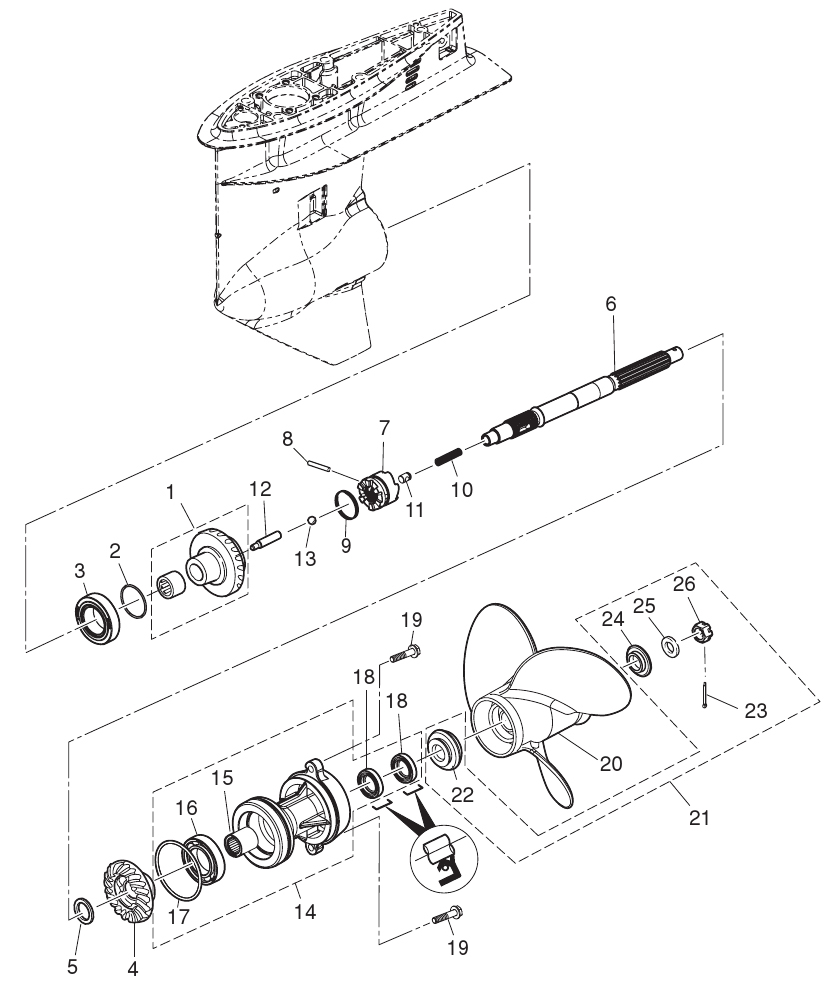

12. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) BEVEL GEAR ASSY (A)(2) SHIM 36-44-0.1(2) SHIM 36-44-0.15(2) SHIM 36-44-0.3(3) TAPERED ROLLER BEARING 32007(4) BEVEL GEAR C(5) WASHER 22.1-26-3(6) PROPELLER SHAFT(7) CLUTCH(8) PIN(9) SNAP(10) SPRING(11) SPRING RETAINER(12) PUSH ROD(13) BALL 3/8(14) PROPELLER SHAFT HOUSING ASSY(15) ROLLER BEARING(16) BALL BEARING 6007(17) O-RING(18) OIL SEAL 22-37-8(18) OIL SEAL 22-37-8(19) BOLT(19) BOLT(20) PROPELLER ASSY (7")(20) PROPELLER ASSY (9")(20) PROPELLER ASSY (11")(20) PROPELLER ASSY (12")(20) PROPELLER ASSY (13")(20) PROPELLER ASSY (14")(20) PROPELLER ASSY (15")(20) PROPELLER ASSY (16")(20) PROPELLER ASSY (17")(21) PROPELLER HARDWARE KIT(22) THRUST HOLDER(23) SPLIT PIN 3-25(24) STOPPER(25) WASHER 17-32-3(26) PROPELLER NUT M16P1.5



Parts List
2014 :: 50 HP :: 4 Stroke Nissan NSF50A :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BEVEL GEAR ASSY (A) 3KY640100M 3KY640100M $84.58 1
(2) SHIM 36-44-0.1 353640380M 353-64038-0 T=0.1 $1.79 0
(2) SHIM 36-44-0.15 353640370M 353-64037-0 T=0.15 $1.56 0
(2) SHIM 36-44-0.3 353640360M 353-64036-0 T=0.3 $1.56 0
(3) TAPER ROLLER BEARING 32007 345602150M 345-60215-0 $50.65 1
(4) BEVEL GEAR C 3KY640300M 3KY640300M $87.29 1
(5) WASHER 22.1-26-3 3KY640320M 3KY640320M $6.56 1
(6) PROPELLER SHAFT 3KY642110M 3KY642110M $163.67 1 Sold Out View More Details
(7) CLUTCH 3KY642150M 3KY642150M $114.55 1
(8) CLUTCH PIN 3C8642170M 3C8-64217-0 $3.04 1 Sold Out View More Details
(9) CLUTCH PIN SNAP 3C8642191M 3C8-64219-1 $1.61 1
(10) CLUTCH SPRING 3C8642210M 3C8-64221-0 $1.85 1
(11) CLUTCH SPRING RETAINER 3C8642220M 3C8-64222-0 $10.81 1
(12) PUSH ROD 3KY642230M 3KY642230M $7.65 1
(13) STEEL BALL 318 9650020803M 965002-0803 $1.13 1
(14) PROPELLER SHAFT HOUSING ASSY 3KYQ873230 3KYQ873230 $122.76 1
(15) ROLLER BEARING 3KY601020M 3KY601020M $25.93 1
(16) BEARING 6007 960106007M 9601-0-6007 $17.62 1
(17) O-RING 3KY601030M 3KY601030M $2.65 1 Sold Out View More Details
(18) OIL SEAL 22-37-8 3F3602230M 3F3-60223-0 $4.63 2
(19) BOLT 9101E35830M 9101E3-5830 $1.89 2
(20) PROPELLER ASSY (7) 348B641081 348B641081 OPT 4 X 290 X 180 $169.01 1
(20) PROPELLER ASSY (9) 3T5B645180 3T5-64518-0 OPT 3 X 311 X 229 $131.96 1
(20) PROPELLER ASSY (11) 3T5B645230 3T5-64523-0 OPT 3 X 290 X 279 $131.96 1
(20) PROPELLER ASSY (12) 3T5B645250 3T5-64525-0 OPT 3 X 283 X 305 $131.96 1
(20) PROPELLER ASSY (13) 3T5B645270 3T5-64527-0 40PS / STD 3 X 277 X 330 $131.96 1
(20) PROPELLER ASSY (14) 3T5B645290 3T5-64529-0 50PS / STD 3 X 279 X 356 $131.96 1
(20) PROPELLER ASSY (15) 3T5B645320 3T5-64532-0 OPT 3 X 278 X 381 $131.96 1
(20) PROPELLER ASSY (16) 3KYB645340 3KYB645340 OPT 3 X 406 X 279 $131.96 1
(20) PROPELLER ASSY (17) 3KYB645360 3KYB645360 OPT 3 X 432 X 280 $131.96 1
(21) PROPELLER HARDWARE KIT 3T5873260M 3T5-87326-0 $74.09 1
(22) THRUST HOLDER 3C8642310M 3C8-64231-0 $50.42 1
(23) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
(24) PROPELLER STOPPER 348642320M 348-64232-0 $19.84 1
(25) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(26) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
