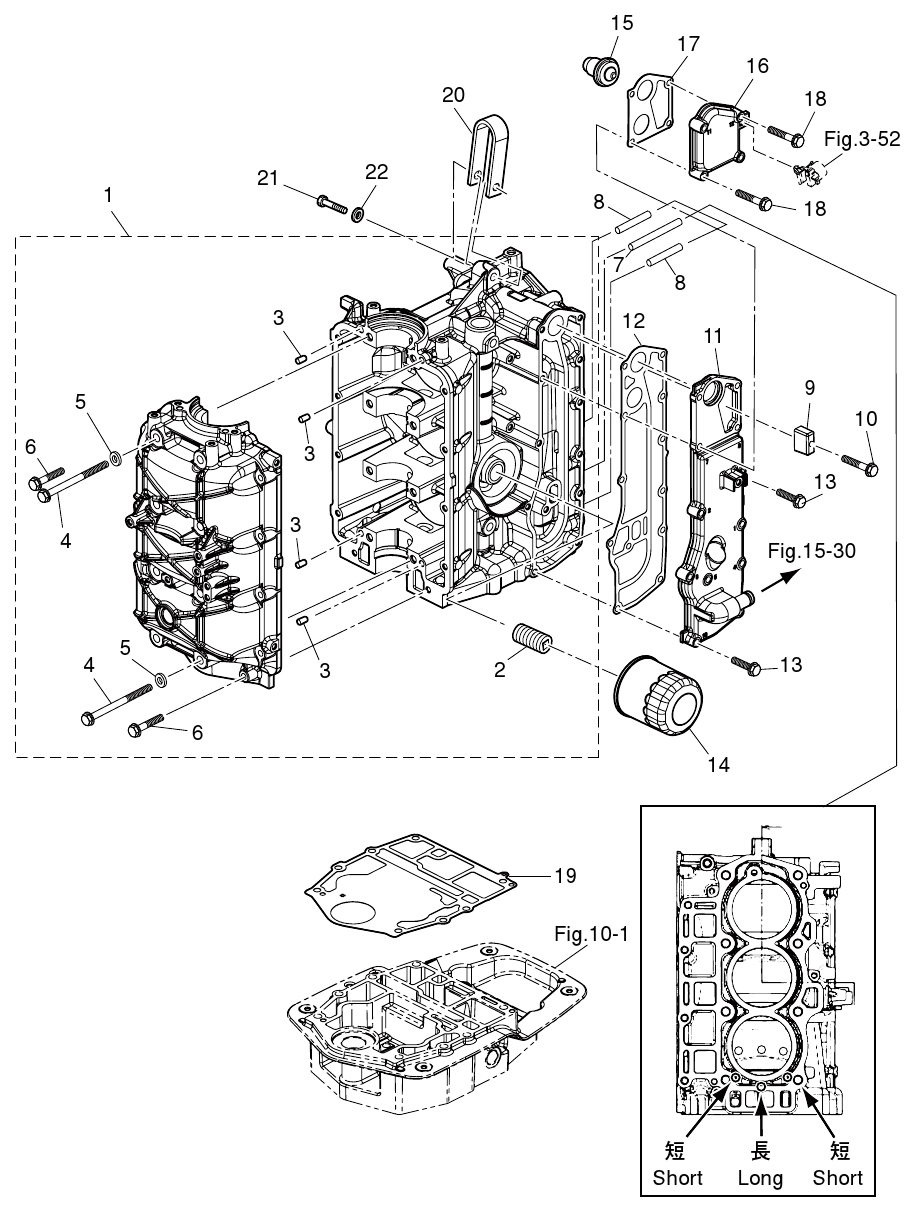

1. CYLINDER & CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYL BLOCK & CRANKCASE ASSY(2) OIL FILTER BOLT(3) DOWEL PIN 6-12(3) DOWEL PIN 6-12(3) DOWEL PIN 6-12(3) DOWEL PIN 6-12(4) BOLT 8-90(4) BOLT 8-90(5) WASHER(5) WASHER(6) BOLT M6-35(6) BOLT M6-35(7) WATER JACKET INSERT (R) L=55(8) WATER JACKET INSERT (L) L=35(8) WATER JACKET INSERT (L) L=35(9) ANODE(10) BOLT(11) EXHAUST COVER ASSY(12) EXHAUST COVER GASKET(13) BOLT(13) BOLT(14) OIL FILTER(15) THERMOSTAT(16) THERMOSTAT CAP(17) THERMOSTAT CAP GASKET(18) BOLT(18) BOLT(19) ENGINE BASEMENT GASKET(20) HANGER(21) BOLT(22) WASHER



Parts List
2014 :: 50 HP :: 4 Stroke Nissan NSF50A :: CYLINDER & CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYL BLOCK & CRANKCASE ASSY 3KYB011000 3KYB011000 $3,109.31 1
(2) BOLT OIL FILTER 3H8076360M 3H8-07636-0 $6.49 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 CRANKCASE-CYLINDER BLOCK $1.30 4
(4) BOLT 8-90 3R0011131M 3R0-01113-1 $2.86 8
(5) WASHER 9401030800M 940113-0800 $0.84 8
(6) BOLT M6-35 3KY011140M 3KY011140M $2.17 10
(7) WATER JACKET INSERT (R) L=55 3KY011950M 3KY011950M LONG $2.72 1
(8) WATER JACKET INSERT (L) L=35 3KY011960M 3KY011960M SHOT $2.72 2
(9) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(10) BOLT 9101035635M 910103-5635 $1.96 1 Sold Out View More Details
(11) EXHAUST COVER ASSY 3KYB023000 3KYB023000 $79.08 1
(12) EXHAUST COVER GASKET 3KY023050M 3KY023050M $13.83 1
(13) BOLT 9101E35625M 910113-5625 $1.47 8
(14) OIL FILTER 3R0076151M 3R0076151M $11.78 1
(15) THERMOSTAT 3KY010300M 3KY010300M MARK 60 $47.85 1
(16) THERMOSTAT CAP 3KYB010310 3KYB010310 $21.81 1
(17) THERMOSTAT CAP GASKET 3KY010320M 3KY010320M $3.45 1
(18) BOLT 9101E35635M 910114-5635 $1.96 4 Sold Out View More Details
(19) ENGINE BASEMENT GASKET 3KY013030M 3KY013030M $30.64 1 Sold Out View More Details
(20) HANGER 3KY015130M 3KY015130M $17.74 1
(21) BOLT 9101140835M 910114-0835 $1.50 1
(22) WASHER 9401210800M 940121-0800 $0.37 1
