30. COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

Click Here for Microfiche Usage Tip

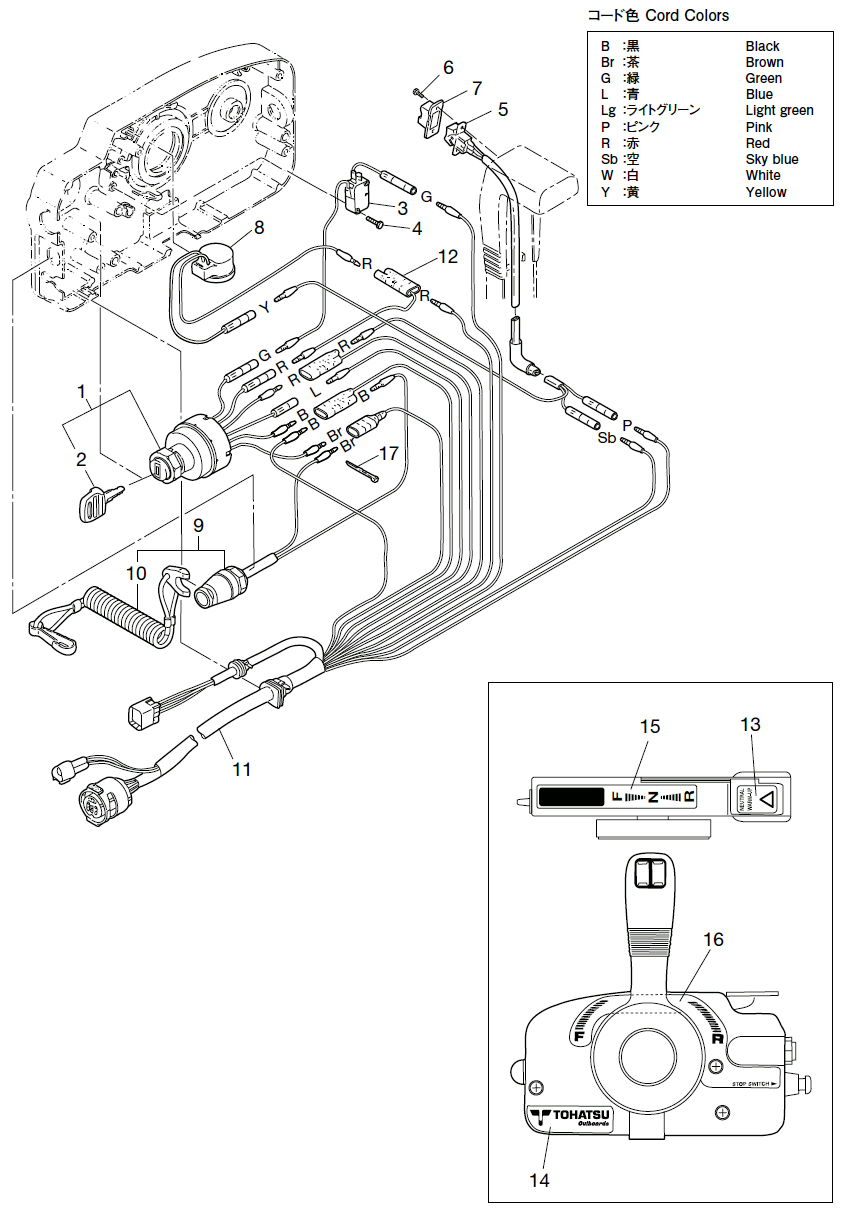

(1) MAIN SWITCH ASSY(2) MAIN SWITCH KEY NO.301(2) MAIN SWITCH KEY NO.302(2) MAIN SWITCH KEY NO.303(3) NEUTRAL SWITCH (REMOTE CONT)(4) SCREW(5) PTT SWITCH ASSY(6) SCREW(7) PTT SWITCH COVER(8) OVERHEAT BUZZER(9) STOP SWITCH ASSY(10) STOP SWITCH LANYARD ASSY(11) CORD ASSY L=6200(12) ASSIST CORD (RED) L=200(13) DECAL (LEVER)(14) DECAL (TOHATSU)(15) SHIFT POSITION DECAL(16) SHIFT POSITION SIDE DECAL(17) BAND



Parts List
2014 :: 50 HP :: TLDI Tohatsu MD50B2 :: COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MAIN SWITCH 353760203M 353-76020-3 $56.65 1
(2) MAIN SWITCH KEY (NO.301) 3F3762170M 3F3-76217-0 $17.62 0
(2) MAIN SWITCH KEY (NO.302) 3F3762180M 3F3-76218-0 $17.62 0
(2) MAIN SWITCH KEY (NO.303) 3F3762190M 3F3-76219-0 $17.62 0
(3) NEUTRAL SWITCH (REMOTE CONTROL) 3T5760860M 3T5-76086-0 $24.62 1
(4) SCREW 9215035316M 9215035316M $0.81 2
(5) PTT SWITCH ASSYPTT 3A3725600M 3A3-72560-0 $51.24 1
(6) SCREW 9215030206M 921503-0206 $0.46 2
(7) PTT SWITCH COVER 3A3725910M 3A3-72591-0 $6.65 1
(8) OVER-HEAT BUZZER 3C8761710M 3C8-76171-0 $34.51 1
(9) STOP SWITCH 3A3068300M 3A3-06830-0 $39.63 1
(10) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(11) CORD ASSY L=6200 3T5761151M 3T5-76115-0 $380.60 1
(12) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(13) DECAL (LEVER) 3N5843310M 3N5-84331-0 $4.54 1
(14) DECAL (TOHATSU) 3N5843330M 3N5-84333-0 $6.07 1
(15) SHIFT POSITION DECAL 3N5843360M 3N5-84336-0 $7.87 1
(16) SHIFT POSITION SIDE DECAL 3N5844650M 3N5-84465-0 $13.34 1
(17) BAND 3A3843980M 3A3-84398-0 $1.67 2
