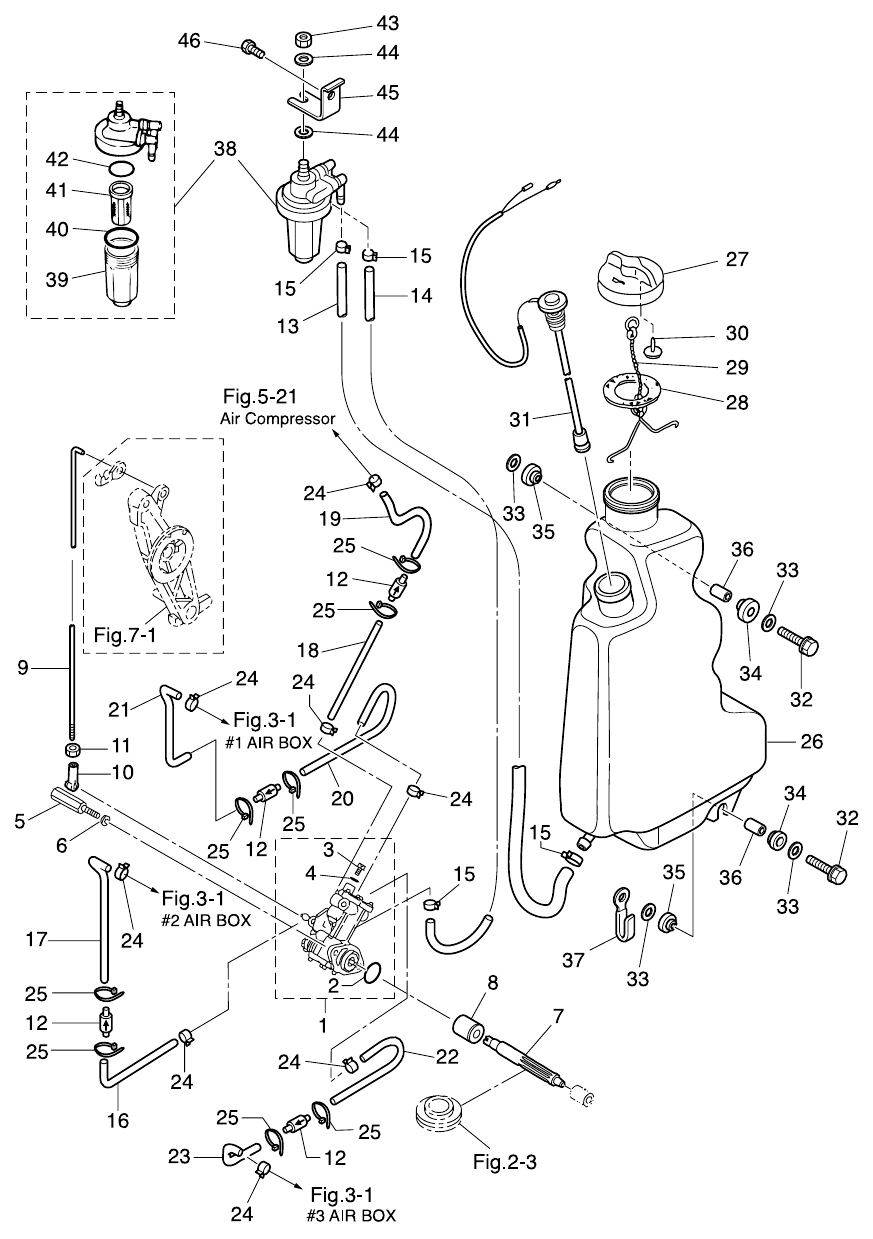

12. OIL PUMP

Click Here for Microfiche Usage Tip
(1) OIL PUMP ASSY(2) O-RING 1.6-19.2(3) AIR VENT BOLT(4) WASHER(5) OIL PUMP BOLT(6) SPRING WASHER(7) OIL PUMP DRIVEN GEAR(8) BUSHING 9-20-20.8(9) OIL PUMP ROD(10) BALL JOINT CONNECTOR(11) NUT(12) CHECK VALVE COMPLETE(12) CHECK VALVE COMPLETE(12) CHECK VALVE COMPLETE(12) CHECK VALVE COMPLETE(13) PIPE(14) PIPE(15) CLIP o9.4(15) CLIP o9.4(15) CLIP o9.4(15) CLIP o9.4(16) PIPE(17) PIPE(18) PIPE(19) PIPE(20) PIPE(21) PIPE(22) PIPE(23) PIPE(24) CLIP o6.9(24) CLIP o6.9(24) CLIP o6.9(24) CLIP o6.9(24) CLIP o6.9(24) CLIP o6.9(24) CLIP o6.9(24) CLIP o6.9(25) BAND 104(25) BAND 104(25) BAND 104(25) BAND 104(25) BAND 104(25) BAND 104(25) BAND 104(25) BAND 104(26) OIL TANK(27) OIL FILLER CAP(28) GASKET 36-52-2(29) CAP HOOK(30) OIL TANK CAP CHECK VALVE(31) OIL LEVEL SENSOR(32) BOLT(32) BOLT(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(34) MOUNT 8.5-14-2.5(34) MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(36) SPACER 6.2-9-15.7(36) SPACER 6.2-9-15.7(37) CLAMP 6.5-87P(38) OIL FILTER ASSY(39) CUP(40) O-RING(41) FILTER(42) O-RING(43) NUT(44) WASHER(44) WASHER(45) PLATE(46) BOLT



Parts List
2014 :: 50 HP :: TLDI Tohatsu MD50B2 :: OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PUMP 3T5090000M 3T5-09000-0 $145.00 1
(2) O-RING 1.6-19.2 3B7090020M 3B7-09002-0 $3.97 1
(3) AIR VENT BOLT 3B7090040M 3B7-09004-0 $6.90 1
(4) WASHER 3B7090060M 3B7-09006-0 $0.99 1
(5) OIL PUMP BOLT 3C8090501M 3C8-09050-1 $0.00 2 Sold Out View More Details
(6) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(7) OIL PUMP DRIVEN GEAR 3C8090650M 3C8-09065-0 $69.03 1
(8) BUSHING 9-20-20.8 3C8090690M 3C8-09069-0 $23.01 1
(9) OIL PUMP ROD 3C8090531M 3C8-09053-0 $6.47 1
(10) BALL JOINT CONNECTOR 3B7052430M 3B7-05243-0 $2.56 1
(11) NUT 9301030500M 930103-0500 $0.86 1
(12) CHECK VALVE 3B7090751M 3B7-09075-1 $12.94 4
(13) OIL PIPE A 99AA60570M 99AA-6-0570 OIL TANK-OIL FILTER / 99AA-6-1000 $12.80 1
(14) OIL PIPE B 99AA60175M 99AA-6-0175 OIL FILTER-OIL PUMP / 99AA-6-1000 $12.80 1
(15) CLIP ø 9.5 3AB351430M 121-35143-0 OIL TANK-OIL FILTER / OIL FILTER-OIL PUMP $1.30 4
(16) OIL PIPE G 99AA20200M 99AA-2-0200 OIL PUMP-#2C/VALVE / 99AA-2-1000 $13.60 1
(17) OIL PIPE F 99AA20140M 99AA-2-0140 #2C/VALVE-#2AIR BOX / 99AA-2-1000 $13.60 1
(18) OIL PIPE I 99AA20120M 99AA-2-0120 OIL PUMP-#4C/VALVE / 99AA-2-1000 $13.60 1
(19) OIL PIPE J 99AA20160M 99AA-2-0160 #4C/VALVE-AIR COMP / 99AA-2-1000 $13.60 1
(20) OIL PIPE F 99AA20140M 99AA-2-0140 OIL PUMP-#1C/VALVE / 99AA-2-1000 $13.60 1
(21) OIL PIPE G 99AA20200M 99AA-2-0200 #1C/VALVE-#1AIR BOX / 99AA-2-1000 $13.60 1
(22) OIL PIPE G 99AA20200M 99AA-2-0200 OIL PUMP-#3C/VALVE / 99AA-2-1000 $13.60 1
(23) OIL PIPE H 99AA20100M 99AA-2-0100 #3C/VALVE-#3AIR BOX / 99AA-2-1000 $13.60 1
(24) CLIP ø 6.9 3B7090520M 3B7-09052-0 OIL PUMP AIR BOX / AIR COMPRESSOR $0.00 8 Sold Out View More Details
(25) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 CHECK VALVE $0.00 8 Sold Out View More Details
(26) OIL TANK 3T5710100M 3T5-71010-0 $80.91 1
(27) OIL TANK CAP 3C8710150M 3C8-71015-0 $10.12 1
(28) GASKET 36-52-2 3C8710160M 3C8-71016-0 $2.56 1
(29) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.12 1
(30) TANK CAP CHECK VALVE 3C8710180M 3C8-71018-0 $8.52 1
(31) OIL LEVEL SENSOR 3T5710200M 3T5-71020-0 $39.68 1
(32) BOLT 9101036630M 910103-6630 $1.30 2
(33) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(34) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(35) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(36) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(37) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 $1.53 1
(38) OIL FILTER 3C7710300M 3C7-71030-0 $51.01 1
(39) CUP 3B7022370M 3B7-02237-0 $7.34 1
(40) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(41) FILTER 3C7710330M 3C7-71033-0 $12.70 1
(42) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(43) NUT 9301030800M 930103-0800 $1.99 1
(44) WASHER 9401030800M 940113-0800 $0.84 2
(45) FILTER PLATE 3T5022390M 3T5-02239-0 $3.97 1
(46) BOLT 9101036614M 910103-6614 $1.09 1
