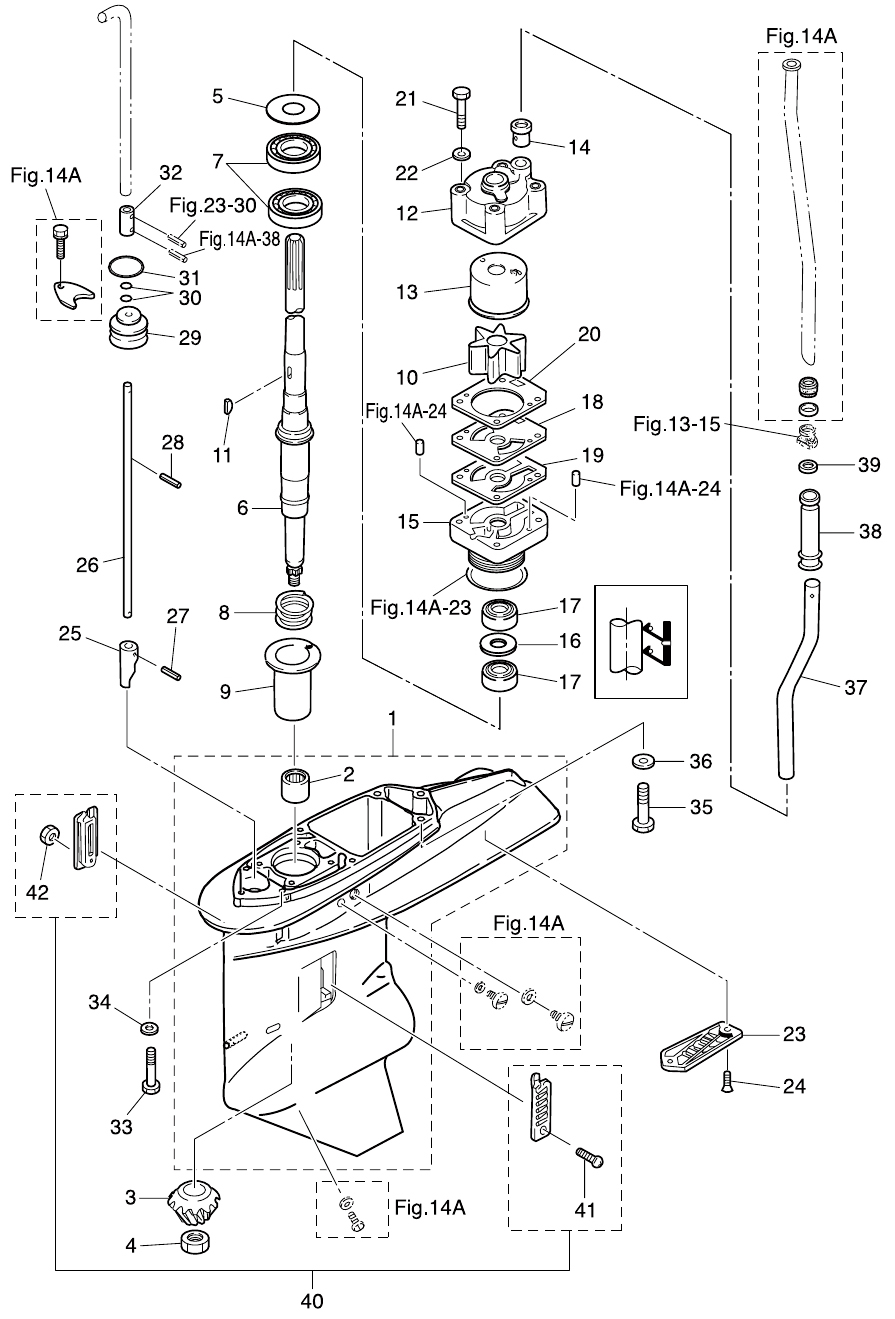

15. GEAR CASE (DRIVE SHAFT) MWD50B2

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(2) ROLLER BEARING 25-33-30(3) BEVEL GEAR B(4) NUT(5) SHIM 44-50.5-0.1(5) SHIM 44-50.5-0.15(5) SHIM 44-50.5-0.3(6) DRIVE SHAFT (L)(7) BALL BEARING 6205R(8) DRIVE SHAFT SPRING(9) DRIVE SHAFT SPRING GUIDE(10) WATER PUMP IMPELLER(11) KEY(12) PUMP CASE SUB-ASSY (UPPER)(13) PUMP CASE LINER(14) WATER PIPE SEAL (LOWER)(15) PUMP CASE (LOWER)(16) SHIM 36.9-30-0.5(17) OIL SEAL 22-37-8(17) OIL SEAL 22-37-8(18) WATER PUMP GUIDE PLATE(19) GUIDE PLATE GASKET(20) PUMP CASE GASKET(21) BOLT(22) WASHER(23) SUB-WATER INLET STRAINER(24) SCREW(25) CLUTCH CAM(26) CAM ROD (L)(27) SPRING PIN 3.5-14(28) SPRING PIN 3.5-10(29) CAM ROD BUSHING(30) O-RING 1.9-6.8(31) O-RING 3.5-27.7(32) SHIFT ROD JOINT(33) BOLT 8-35(34) WASHER(35) BOLT 10-40(36) WASHER(37) EXTENSION PIPE(38) JOINT HOSE(39) COLLAR 18-20-4.5(40) WATER STRAINER SET(41) SCREW(42) NYLON NUT 4-P0.7



Parts List
2014 :: 50 HP :: TLDI Nissan NSD50B2 :: GEAR CASE (DRIVE SHAFT) MWD50B2
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE ASSY 3S7Q600901 3S7Q60090-1 SUB WATER PIPE $0.00 0 Sold Out View More Details
(2) ROLLER BEARING 25-33-30 353602110M 353-60211-0 $33.06 0
(3) BEVEL GEAR B 3F3640200M 3F3-64020-0 $121.16 0
(4) NUT 353640270M 353-64027-0 $8.31 0
(5) SHIM 44-50.5-0.1 353640810M 353-64081-0 $2.90 0 Sold Out View More Details
(5) SHIM 44-50.5-0.15 353640820M 353-64082-0 $2.90 0 Sold Out View More Details
(5) SHIM 44-50.5-0.3 353640830M 353-64083-0 $2.90 0 Sold Out View More Details
(6) DRIVE SHAFT (L) 3S7643020 3S7-64302-0 FOR TRANSOM L $0.00 0 Sold Out View More Details
(7) BALL BEARING 6205R 3S7602130M 3S7-60213-0 $0.00 0 Sold Out View More Details
(8) SPRING DRIVE SHAFT 353643270M 353-64327-0 $2.25 0
(9) DRIVE SHAFT SPRING GUIDE 3A3643280M 3A3-64328-0 $25.77 0
(10) IMPELLER WATER PUMP 3B7650212M 3B7-65021-2 $22.74 0
(11) KEY 3B7650221M 3B7650221M PUMP IMPELER $10.98 0
(12) UPPER PUMP CASE ASSY 3B7650160M 3B7-65016-0 $52.05 0
(13) LINER CHROME PLATED PUMP CASE 3B7652380M 3B7-65011-0 CHROME PLATED $29.93 0
(14) SEAL RUBBER LOWER WATER PIPE 3B7650140M 3B7-65014-0 $2.31 0
(15) PUMP CASE (LOWER) 3F3650171M 3F3-65017-1 $54.68 0
(16) SHIM 36.9-30-0.5 3F3640840M 3F3-64084-0 $3.57 0
(17) OIL SEAL 22-37-8 3F3602230M 3F3-60223-0 $4.63 0
(18) WATER PUMP GUIDE PLATE 3F3652392M 3F3652392M CHROME PLATED $53.09 0
(19) GASKET GUIDE PLATE 3B7650290M 3B7-65029-0 $2.56 0
(20) GASKET PUMP CASE 3B7650180M 3B7-65018-0 $2.86 0
(21) BOLT 9161E30880M 916113-0880 $3.37 0
(22) WASHER 9401030800M 940113-0800 $0.84 0
(23) SUB-WATER INLET STRAINER 3F3602040M 3F3-60204-0 $7.08 0
(24) SCREW 9215030608M 921503-0608 $0.72 0
(25) CLUTCH CAM 3S7660110 3S7-66011-0 $0.00 0 Sold Out View More Details
(26) CAM ROD (L) 3S7660130 3S7-66013-0 FOR TRANSOM L $0.00 0 Sold Out View More Details
(27) SPRING PIN 3.5-14 9514033514M 951403-3514 $0.49 0
(28) SPRING PIN 3.5-10 9514033510M 951403-3510 $0.49 0
(29) CAM ROD BUSHING 3B7660311M 3B7-66031-1 $23.01 0
(30) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 0
(31) O-RING 3.5-27.7 3B7660230M 3B7-66023-0 $2.76 0
(32) SHIFT ROD JOINT 3S7662410 3S7-66241-0 $0.00 0 Sold Out View More Details
(33) BOLT 8-35 3T1600011M 916189-0835 $5.35 0
(34) WASHER 9402E30800M 9402E3-0800 $1.11 0
(35) BOLT 10-40 3B7600015M 3B7-60001-2 $8.33 0
(36) WASHER 9402E31000M 940213-1000 $1.04 0
(37) EXTENSION PIPE 3S7602520 3S7-60252-0 $0.00 0 Sold Out View More Details
(38) JOINT HOSE 3S7602510 3S7-60251-0 $0.00 0 Sold Out View More Details
(39) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 0
(40) WATER STRAINER SET 3B7602050M 3B7-60205-0 $13.35 0
(41) SCREW 9215030438M 921503-0438 $0.72 0
(42) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 0
