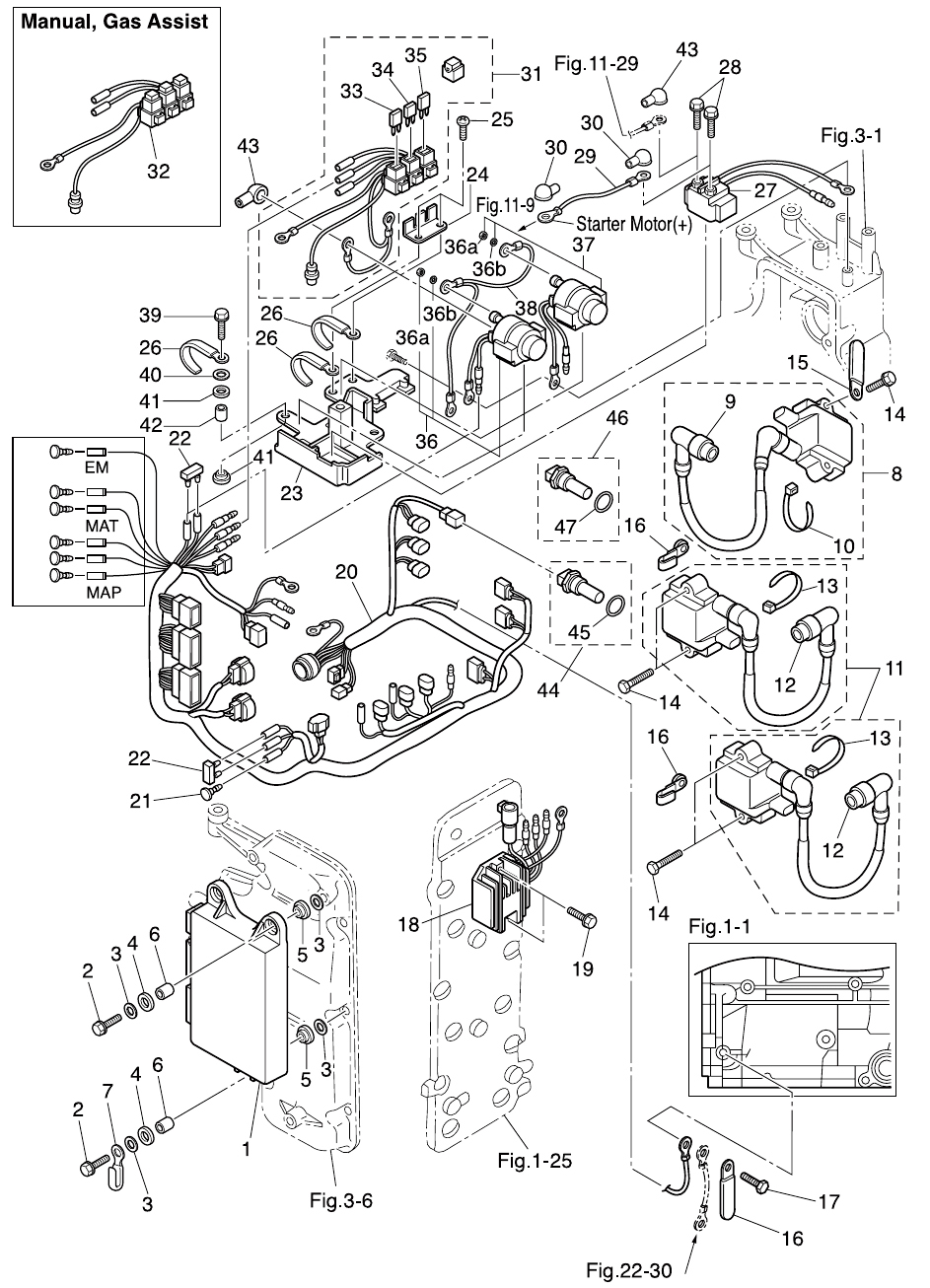

10. ELECTRIC PARTS (ECU & DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU ASSY(2) BOLT(2) BOLT(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(4) MOUNT 8.5-14-2.5(4) MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(6) SPACER 6.2-9-16.6(6) SPACER 6.2-9-16.6(7) CLAMP 6.5-47.5P(8) IGNITION COIL W/R-CAP(9) PLUG CAP W/RESISTANCE(10) BAND 158(11) IGNITION COIL W/R-CAP(12) PLUG CAP W/RESISTANCE(12) PLUG CAP W/RESISTANCE(13) BAND 158(13) BAND 158(14) BOLT(14) BOLT(14) BOLT(15) CLAMP 6.5-47.5P(16) CLAMP 6.5-87P(16) CLAMP 6.5-87P(16) CLAMP 6.5-87P(17) BOLT(18) RECTIFIER COMPLETE(19) BOLT(20) CORD ASSY(21) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(23) SOLENOID SWITCH BRACKET ASSY(24) FUSE HOLDER BRACKET(25) TAPPING SCREW 6-16(26) CLAMP 6.5-87P(26) CLAMP 6.5-87P(26) CLAMP 6.5-87P(27) STARTER SOLENOID(28) BOLT(29) STARTER CABLE L=270(30) TERMINAL CAP(30) TERMINAL CAP(31) FUSE WIRE ASSY(32) FUSE WIRE ASSY(33) FUSE 30A(34) FUSE 25A(35) FUSE 15A(36) PTT SOLENOID SWITCH (A)(36A) NUT(36A) NUT(36B) SPRING WASHER(36B) SPRING WASHER(37) PTT SOLENOID SWITCH (B)(38) GROUND CABLE L=140&285(39) BOLT(40) WASHER 6-16-1.5(41) RUBBER MOUNT 8.5-12-2(41) RUBBER MOUNT 8.5-12-2(42) COLLAR 6.2-9-10.7(43) TERMINAL CAP(43) TERMINAL CAP(44) WATER TEMPERATURE SENSOR(45) O-RING 2-10(46) WATER TEMPERATURE SENSOR(47) O-RING 2-10



Parts List
2014 :: 50 HP :: TLDI Nissan NSD50B2 :: ELECTRIC PARTS (ECU & DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU ASSY 3GF064010M 3GF-06401-0 50PS ENGINE CONTROL UNIT / LABEL 3GF09AA $1,777.08 1
(2) BOLT 9101036630M 910103-6630 $1.30 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.22 3
(7) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(8) IGNITION COIL #1 3Z5064690M 3Z5-06469-0 #1 $84.69 1
(9) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
(10) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 1
(11) IGNITION COIL #2 & # 3 3Z5064700M 3Z5-06470-0 #2 #3 $84.69 2
(12) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
(13) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 1
(14) BOLT 9101037635M 910103-7635 $2.35 6
(15) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(16) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 $1.53 3
(17) BOLT 9101036614M 910103-6614 $1.09 1
(18) RECTIFIER COMPLETE 3Z5760602M 3Z5-76060-0 $114.50 1
(19) BOLT 9101035620M 910103-5620 $1.30 2
(20) CORD ASSY 3GF761100M 3GF-76110-0 $520.08 1 Sold Out View More Details
(21) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EFTO MODEL $1.50 1
(21) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR MANUAL & GAS ASSIST MODEL $1.50 1
(22) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR EFTO MODEL $2.53 1
(22) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR MANUAL & GAS ASSIST MODEL $2.53 2
(23) SOLENOID SWITCH BRACKET 3T5725850M 3T5-72585-0 $0.00 1 Sold Out View More Details
(24) FUSE HOLDER BRACKET 3T9760640M 3T9-76064-0 $0.00 1 Sold Out View More Details
(25) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.27 2
(26) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 $1.53 3
(27) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(28) BOLT 9101035610M 910103-5610 $1.02 2
(29) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 STARTER SOLENOID / -STARTER MOTOR $24.89 1
(30) CAP CORD 3A3761450M 3A3-76145-0 $3.39 2
(31) FUSE WIRE ASSY 3Y9760621M 3Y9-76062-1 FOR PTT MODEL $113.37 1 Sold Out View More Details
(32) FUSE HOLDER B (EFO TYPE) 3Z5760660M 3Z5-76066-0 FOR MANUAL & GAS ASSIST MODEL $0.00 1 Sold Out View More Details
(33) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 1
(34) FUSE 25A 3Y9762480M 3Y9-76248-0 $1.98 1
(35) FUSE 15A 3T5762460M 3T5-76246-0 $3.34 1
(36) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP / FOR PTT MODEL $42.82 1
(36A) NUT 9301030600M 930113-0600 $0.84 3
(36B) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(37) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DN / FOR PTT MODEL $42.82 1
(38) GROUND CABLE L=140&285 3T5761421M 3T5-76142-1 FOR PTT MODEL / PTT UP/DOWN-GROUND $8.60 1
(39) BOLT 9101036625M 910103-6625 $1.01 3
(40) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 3
(41) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 6
(42) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 3
(43) CAP CORD 3A3761450M 3A3-76145-0 FOR PTT MODEL $3.39 3
(44) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 CYLINDER BLOCK $26.18 1
(45) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(46) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 AIR COMPRESSOR $26.18 1
(47) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
