24. OPTIONAL PARTS (2)

Click Here for Microfiche Usage Tip

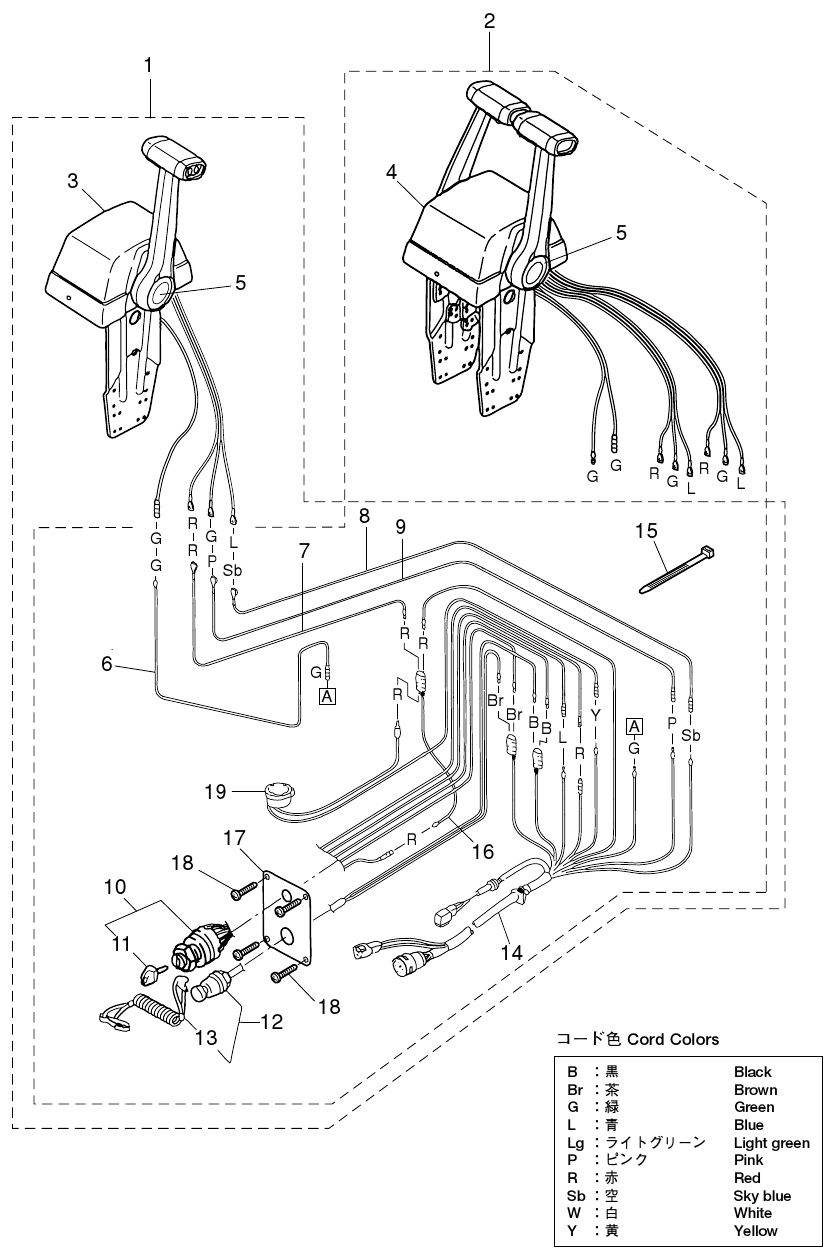

(1) CONTROL HEAD ASSY (TOP-SINGLE)(2) CONTROL HEAD ASSY (TOP-TWIN)(3) REMOTE CONT HEAD (TOP-SINGLE)(4) REMOTE CONT HEAD (TOP-TWIN)(5) DECAL (TOHATSU)(5) DECAL (TOHATSU)(6) NEUTRAL SWITCH CORD(7) PTT SWITCH CORD PTT(8) PTT SWITCH CORD PTT(5) DECAL (TOHATSU)(5) DECAL (TOHATSU)(9) PTT SWITCH CORD PTT(10) MAIN SWITCH ASSY(11) MAIN SWITCH KEY NO.301(11) MAIN SWITCH KEY NO.302(11) MAIN SWITCH KEY NO.303(12) STOP SWITCH ASSY(13) STOP SWITCH LANYARD ASSY(14) CORD ASSY L=6200(15) BAND 200(16) ASSIST CORD (RED) L=200(17) MAIN SWITCH PANEL(18) SCREW(18) SCREW(19) OVERHEAT BUZZER



Parts List
2014 :: 40 HP :: 4 Stroke Tohatsu MFS40A :: OPTIONAL PARTS (2)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CONTROL HEAD ASSY (TOP-SINGLE) 3T5844902M 3T5-84490-2 FOR SINGLE $389.01 1
(2) CONTROL HEAD ASSY (TOP-TWIN) 3T5845402M 3T5-84540-2 FOR TWIN $0.00 1 Sold Out View More Details
(3) REMOTE CONT HEAD (TOP-SINGLE) 3T5844801M 3T5-84480-1 FOR SINGLE $389.01 1
(4) REMOTE CONT HEAD (TOP-TWIN) 3T5845201M 3T5-84520-1 FOR TWIN $0.00 1 Sold Out View More Details
(5) DECAL (TOHATSU) 3Z5844620M 3Z5-84462-0 FOR SINGLE $0.00 1 Sold Out View More Details
(5) DECAL (TOHATSU) 3Z5844620M 3Z5-84462-0 FOR TWIN $0.00 2 Sold Out View More Details
(6) NEUTRAL SWITCH CORD ( GREEN 3C7844711M 3C7-84471-1 GREEN / SINGLE X1 TWIN X2 $6.30 1
(7) PTT SWITCH CORD RED 3C7844750M 3C7-84475-0 RED / SINGLE X1 TWIN X2 $3.11 1
(8) PTT SWITCH CORD SKY BLUE 3C7844760M 3C7-84476-0 SKY BLUE / SINGLE X1 TWIN X2 $3.11 1
(9) PTT SWITCH CORD PINK 3C7844770M 3C7-84477-0 PINK / SINGLE X1 TWIN X2 $3.11 1
(10) MAIN SWITCH 353760203M 353-76020-3 SINGLE X1 TWIN X2 $56.65 1
(11) MAIN SWITCH KEY (NO.301) 3F3762170M 3F3-76217-0 $17.62 0
(11) MAIN SWITCH KEY (NO.302) 3F3762180M 3F3-76218-0 $17.62 0
(11) MAIN SWITCH KEY (NO.303) 3F3762190M 3F3-76219-0 $17.62 0
(12) STOP SWITCH 3A3068300M 3A3-06830-0 SINGLE X1 TWIN X2 $39.63 1
(13) STOP SWITCH LANYARD 353068210M 353-06821-0 SINGLE X1 TWIN X2 $16.48 1 Sold Out View More Details
(14) CORD ASSY L=6200 3T5761151M 3T5-76115-0 SINGLE X1 TWIN X2 $380.60 1
(15) BAND 200 178341470M 178-34147-0 SINGLE X1 TWIN X2 $0.00 1 Sold Out View More Details
(16) ASSIST CORD (RED) 353725460M 353-72546-0 SINGLE X1 TWIN X2 $5.92 1
(17) MAIN SWITCH PANEL 3T5762010M 3T5-76201-0 SINGLE X1 TWIN X2 $54.33 1
(18) SCREW 9211464516M 921146-4516 SINGLE X1 TWIN X2 $0.65 4 Sold Out View More Details
(19) OVER-HEAT BUZZER 3C8761710M 3C8-76171-0 SINGLE X1 TWIN X2 $34.51 1
