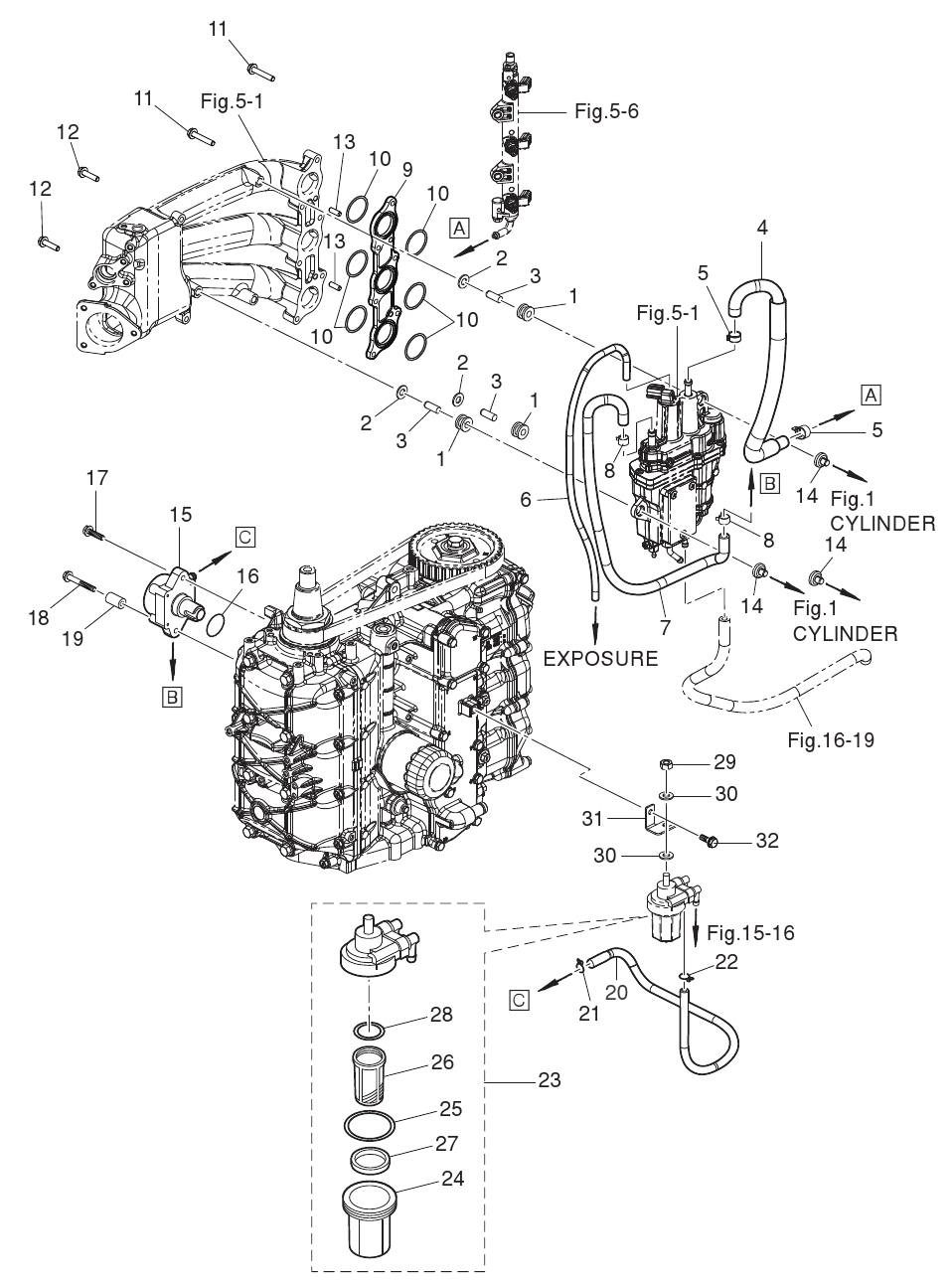

6. FUEL SYSTEM

Click Here for Microfiche Usage Tip
(1) RUBBER MOUNT(1) RUBBER MOUNT(1) RUBBER MOUNT(2) WASHER(2) WASHER(2) WASHER(3) PIN o8-22(3) PIN o8-22(3) PIN o8-22(4) FUEL HOSE W/PROTECTOR(5) CLAMP o16.8(5) CLAMP o16.8(6) FUEL HOSE 4-9(7) FUEL HOSE W/PROTECTOR o12(7) FUEL HOSE W/PROTECTOR o12(8) CLIP o11.3(8) CLIP o11.3(9) INSULATOR(10) O-RING 1.9-33.2(10) O-RING 1.9-33.2(10) O-RING 1.9-33.2(10) O-RING 1.9-33.2(11) BOLT(11) BOLT(12) BOLT(12) BOLT(13) DOWEL PIN 6-16(13) DOWEL PIN 6-16(14) BUSHING(14) BUSHING(14) BUSHING(15) FUEL PUMP ASSY(16) O-RING 3.5-25.7(17) BOLT(18) BOLT(19) SPACER 6.2-13-22(20) LOW PERMEATION HOSE L=445(20) FUEL HOSE 5-10, L=445(21) CLIP o11.3(22) CLIP o9.4(23) FUEL FILTER ASSY(24) CUP(25) O-RING(26) FILTER(27) FLOAT(28) O-RING(29) NUT(30) WASHER(30) WASHER(31) PLATE(32) BOLT



Parts List
2014 :: 40 HP :: 4 Stroke Tohatsu MFS40A :: FUEL SYSTEM
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RUBBER MOUNT 3KY069200M 3KY069200M $5.18 3
(2) WASHER 9401030800M 940113-0800 $0.84 3
(3) PIN ø8-22 3KY010800M 3KY010800M $3.17 3
(4) FUEL HOSE W/PROTECTOR 3KY021650M 3KY021650M V/SEPARATOR-FUEL RAIL / EPA-KRI-15G $62.71 1
(5) CLAMP ø16.8 3AC100870M 3AC-10087-0 $3.14 2
(6) FUEL HOSE 4-9 3KY022030M 3KY022030M V/SEPARATOR-EXPOSURE $7.65 1
(7) FUEL HOSE W/PROTECTOR ø12 3KY040770M 3KY040770M FUEL PUMP-V/SEPARATOR / USA EPA-KRI-15G $42.27 1
(7) FUEL HOSE W/PROTECTOR ø12 3KY040850M 3KY040850M FUEL PUMP-V/SEPARATOR / STD $23.18 1
(8) CLIP ø11.3 345701141M 345-70114-1 $2.82 2
(9) INSULATOR 3KY039520M 3KY039520M $6.70 1
(10) O-RING 1.9-33.2 3KY020120M 3KY020120M $4.55 6 Sold Out View More Details
(11) BOLT 9101035635M 910103-5635 $1.96 6 Sold Out View More Details
(12) BOLT 9101035625M 910103-5625 $1.47 2
(13) KNOCK 6-16 3B2011110M 3B2-01111-0 INTAKE MANIFOLD-VAPOR SEPARATOR ASSY $1.41 2
(14) BUSHING 3KY101550M 3KY101550M $5.18 3
(15) FUEL PUMP ASSY 3KY040000M 3KY040000M $190.95 1
(16) O-RING 3.5-25.7 3H8624150M 345-62415-0 $1.10 1 Sold Out View More Details
(17) BOLT 9101035625M 910103-5625 $1.47 1
(18) BOLT 9101035645M 910103-5645 $0.00 1 Sold Out View More Details
(19) SPACER 6.2-13-22 3KY026050M 3KY026050M $4.33 1
(20) LOW PERMEATION HOSE L=445 3KY040600M 3KY040600M FUEL FILTER-FUEL PUMP / USA EPA-KRI-15G $30.00 1
(20) FUEL HOSE 5-10 L=445 3KY022110M 3KY022110M FUEL FILTER-FUEL PUMP / STD $11.33 1
(21) CLIP ø11.3 345701141M 345-70114-1 $2.82 1
(22) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 1
(23) FUEL FILTER 3T5022300M 3T5-02230-0 $47.18 1
(24) CUP 3B7022370M 3B7-02237-0 $7.34 1
(25) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(26) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(27) FLOAT 3T5022290M 3T5-02229-0 $6.84 1
(28) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(29) NUT 9301030800M 930103-0800 $1.99 1
(30) WASHER 9401030800M 940113-0800 $0.84 2
(31) PLATE 3KY022390M 3KY022390M $12.54 1
(32) BOLT 9101035612M 910103-5612 $1.07 1
