4. PULLEY & TIMING BELT

Click Here for Microfiche Usage Tip

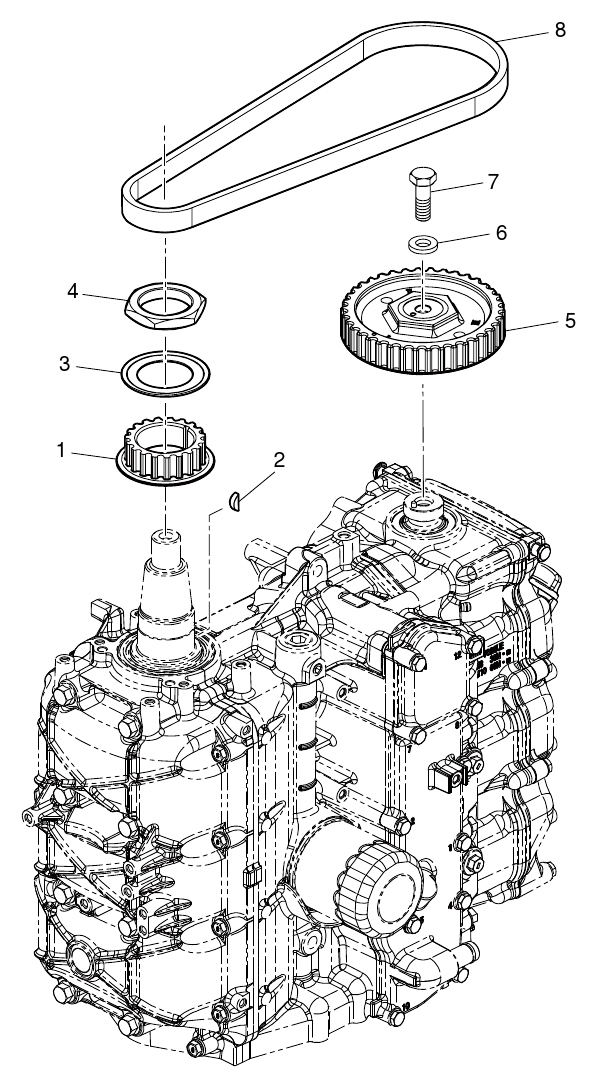

(1) DRIVE PULLEY(2) KEY T=4(3) BELT GUIDE(4) NUT 39-P1.5(5) DRIVEN PULLEY(6) WASHER 10.5-20-3.2(7) BOLT 10-P1.25(8) TIMING BELT



Parts List
2014 :: 40 HP :: 4 Stroke Tohatsu MFS40A :: PULLEY & TIMING BELT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE PULLEY 3KY100600M 3KY100600M TIMING PULLEY $72.27 1
(2) KEY 3T5101310M 3T5-10131-0 CRANKSHAFT $1.56 1
(3) BELT GUIDE 3KY100630M 3KY100630M $13.09 1
(4) NUT 39-P1.5 3KY100680M 3KY100680M $17.74 1
(5) DRIVEN PULLEY 3KY100620M 3KY100620M CAMSHAFT PULLEY $69.53 1 Sold Out View More Details
(6) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 1
(7) BOLT 10-P1.25 9111031030M 9111031030M $5.48 1 Sold Out View More Details
(8) TIMING BELT 3KY100450M 3KY100450M $45.03 1
