17. STEERING

Click Here for Microfiche Usage Tip

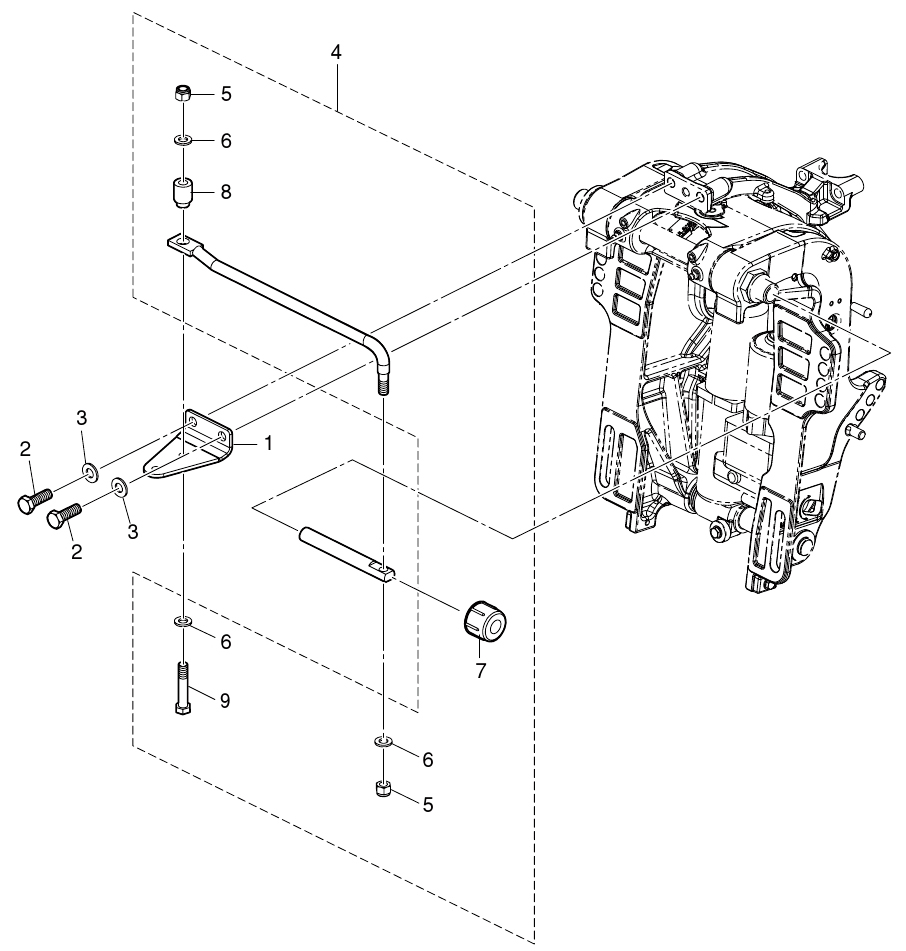

(1) STEERING HOOK PLATE(2) BOLT(2) BOLT(3) WASHER(3) WASHER(4) DRAG LINK ASSY(5) NYLON NUT 3/8-24UNF(5) NYLON NUT 3/8-24UNF(6) WASHER 9.6-18-2(6) WASHER 9.6-18-2(6) WASHER 9.6-18-2(7) SEAL RING(8) SPACER 9.6-19-19(9) BOLT 3/8-45



Parts List
2014 :: 40 HP :: 4 Stroke Nissan NSF40A :: STEERING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STEERING HOOK PLATE 3KY838300M 3KY838300M FOR EPT MODEL $21.81 1 Sold Out View More Details
(2) BOLT 9101031030M 910103-1030 FOR EPT MODEL $2.51 2
(3) WASHER 9401031000M 940103-1000 FOR EPT MODEL $1.50 2
(4) DRAG LINK ASSY 3KY849050M 3KY849050M FOR EPT MODEL $139.09 1
(5) NYLON NUT 3/8 353849180M 353-84918-0 FOR EPT MODEL $6.59 2
(6) WASHER 9.6-18-2 353849160M 353-84916-0 FOR EPT MODEL $1.45 3
(7) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR EPT MODEL $2.56 1 Sold Out View More Details
(8) SPACER DRAG LINK 3B7849140M 3B7-84914-0 FOR EPT MODEL $8.29 1
(9) BOLT 3/8-45 353849170M 353-84917-0 FOR EPT MODEL $8.22 1
