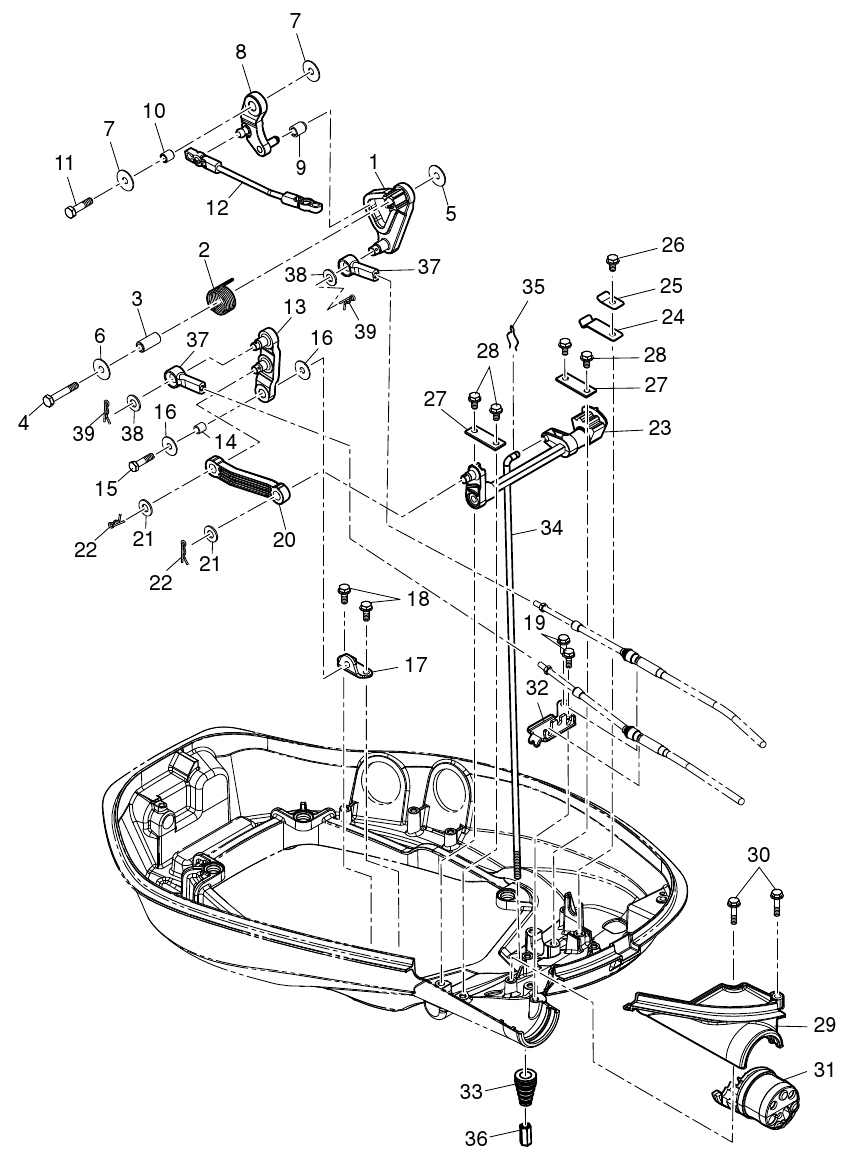

16. SHIFT & THROTTLE

Click Here for Microfiche Usage Tip
(1) THROTTLE CAM(2) SPRING(3) COLLAR 6.5-10.5-22.6(4) BOLT(5) WASHER 6.5-21-1(6) WASHER 6.5-23-1.5(7) WASHER 6.5-21-1(7) WASHER 6.5-21-1(8) THROTTLE ARM(9) THROTTLE ROLLER(10) COLLAR 6.5-10.5-9.3(11) BOLT(12) THROTTLE ROD(13) SHIFT ARM(14) COLLAR 6.5-10.5-9.3(15) BOLT(16) WASHER 6.5-21-1(16) WASHER 6.5-21-1(17) BRACKET(18) BOLT(19) BOLT(20) SHIFT LEVER ROD(21) WASHER 8.5-18-1.6(21) WASHER 8.5-18-1.6(22) SNAP PIN D=8(22) SNAP PIN D=8(23) SHIFT LEVER SHAFT ASSY(24) SHIFT LEVER STOPPER(25) SHIFT LEVER STOPPER T=0.8(26) BOLT(27) HOLDER(27) HOLDER(28) BOLT(28) BOLT(29) REMOTE CONTROL CABLE STAY COVER(30) BOLT(31) GROMMET(32) CABLE CLIP(33) GROMMET 17-3(34) SHIFT ROD (S)(34) SHIFT ROD (L)(35) SNAP PIN D=5(36) SHIFT ROD JOINT M6-22(37) CABLE JOINT(37) CABLE JOINT(38) WASHER 8.5-18-1.6(38) WASHER 8.5-18-1.6(39) SNAP PIN D=8(39) SNAP PIN D=8



Parts List
2014 :: 40 HP :: 4 Stroke Nissan NSF40A :: SHIFT & THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) THROTTLE CAM 3KY637180M 3KY637180M $5.87 1
(2) SPRING 3KY637270M 3KY637270M $2.72 1
(3) COLLAR 6.5-10.5-22.6 3R3661240M 3H6-63618-0 $4.28 1
(4) BOLT 9101030635M 910103-0635 $1.02 1
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(6) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 1
(7) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(8) THROTTLE ARM 3KY637510M 3KY637510M $17.74 1
(9) THROTTLE ROLLER 3KY031710M 3KY031710M $2.60 1
(10) COLLAR 6.5-10.5-9.3 3KY760790M 3KY760790M $6.56 1
(11) BOLT 9101030620M 910103-0620 $1.04 1
(12) THROTTLE ROD 3KY637090M 3KY637090M $24.06 1
(13) SHIFT ARM 3KY661220M 3KY661220M $5.18 1
(14) COLLAR 6.5-10.5-9.3 3KY760790M 3KY760790M $6.56 1
(15) BOLT 9101030625M 910113-0625 $0.95 1
(16) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(17) BRACKET 3KY661260M 3KY661260M $8.33 1
(18) BOLT 9101035616M 910103-5616 SHIFT ARM BRACKET $1.15 2
(19) BOLT 9101035616M 910103-5616 CABLE CLIP $1.15 2
(20) SHIFT LEVER ROD 3KY661340M 3KY661340M $8.33 1
(21) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 2
(22) SNAP PIN D=8 9516030800M 951603-0800 $0.70 2
(23) SHIFT LEVER SHAFT ASSY 3KY661300M 3KY661300M $22.54 1
(24) SHIFT LEVER STOPPER 3EF661210M 3EF661210M $0.00 1 Sold Out View More Details
(25) SHIFT LEVER STOPPER T=0.8 3Y1661170M 3Y1-66117-0 $3.05 1
(26) BOLT 9101035612M 910103-5612 $1.07 1
(27) HOLDER 3V1661450M 3V1-66145-0 $2.30 2
(28) BOLT 9101035612M 910103-5612 $1.07 4
(29) REMOTE CONTROL CABLE STAY COVER 3KYQ674830 3KYQ674830 $40.92 1 Sold Out View More Details
(30) BOLT 9101035625M 910103-5625 $1.47 2
(31) GROMMET 3KY761160M 3KY761160M $17.74 1
(32) CABLE CLIP 3KY837340M 3KY837340M $12.47 1
(33) GROMMET 17-3 3M2662260M 3M2662260M $6.56 1
(34) SHIFT ROD (S) 3KY662140M 3KY662140M SHIFT ROD $25.93 1
(34) SHIFT ROD (L) 3KY662150M 3KY662150M FOR TRANSOM S $28.64 1 Sold Out View More Details
(35) R-PIN D=5 9516030500M 951603-0500 FOR TRANSOM L&UL $0.60 1
(36) SHIFT ROD JOINT M6-22 3KY662410M 3KY662410M $6.82 1
(37) CABLE JOINT 3B7837152M 3B7-83715-0 $4.83 2
(38) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 2
(39) SNAP PIN D=8 9516030800M 951603-0800 $0.70 2
