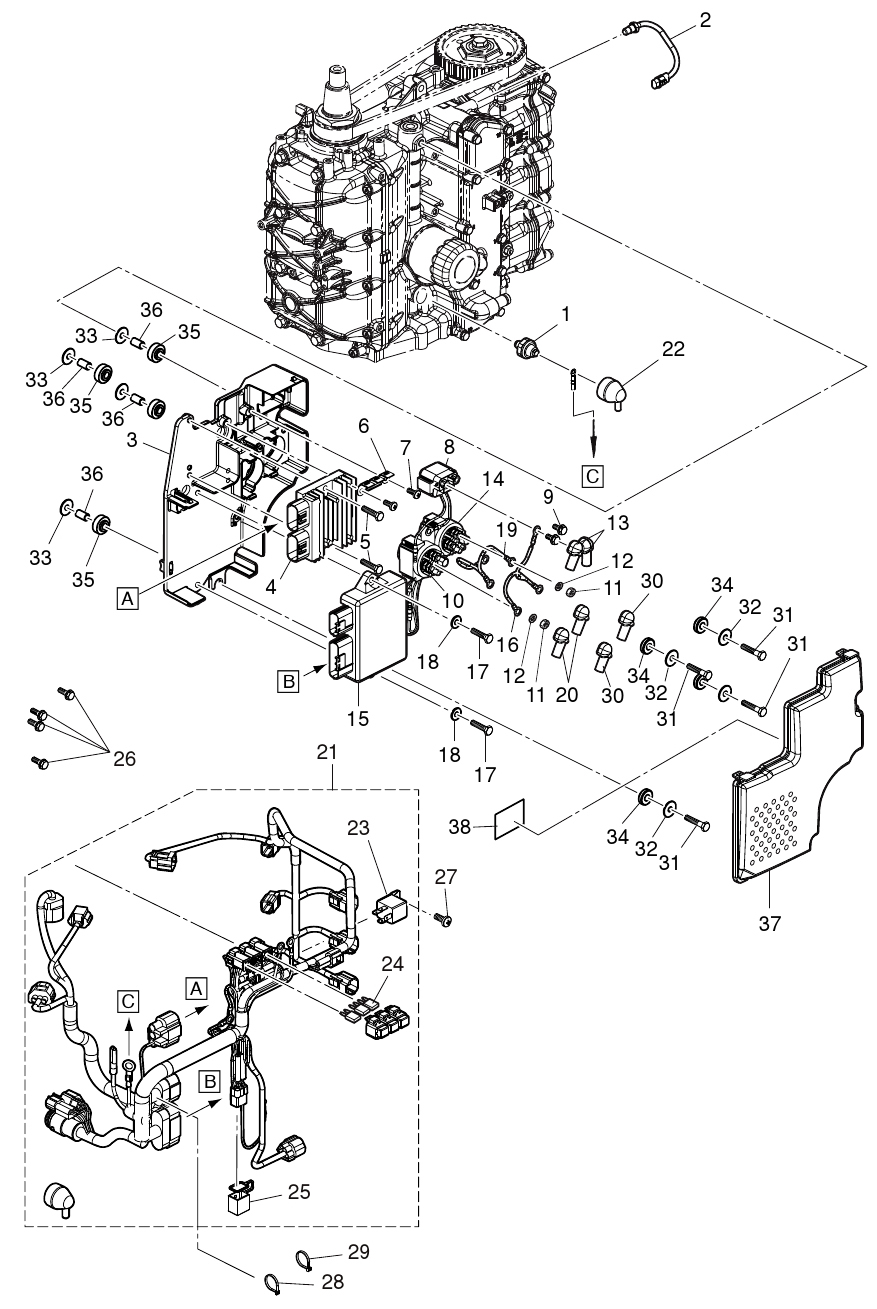

9. ELECTRIC PARTS

Click Here for Microfiche Usage Tip
(1) OIL PRESSURE SWITCH(2) ENGINE TEMP SENSOR(3) BRACKET(4) RECTIFIER COMPLETE(5) BOLT(6) FUSE HOLDER BRACKET(7) SCREW(8) STARTER SOLENOID(9) BOLT(10) PTT SOLENOID SWITCH (A)(11) NUT(11) NUT(12) SPRING WASHER(12) SPRING WASHER(13) TERMINAL CAP 8-13-28(14) PTT SOLENOID SWITCH (B)(15) ECU ASSY (EU USE ONLY)(15) ECU ASSY(16) SOLENOID SWITCH CORD (A)(17) BOLT(17) BOLT(18) WASHER 6-16-1.5(18) WASHER 6-16-1.5(19) SOLENOID SWITCH CORD (B)(20) TERMINAL CAP 8-13-28(21) CORD ASSY(22) GROMMET(23) RELAY(24) FUSE 30A(24) FUSE 20A(25) CABLE TERMINAL PLUG(26) BOLT(27) SCREW(28) BAND 104(29) BAND 203(30) TERMINAL CAP 8-13-28(30) TERMINAL CAP 8-13-28(30) TERMINAL CAP 8-13-28(31) BOLT(31) BOLT(31) BOLT(32) WASHER 6-16-1.5(32) WASHER 6-16-1.5(32) WASHER 6-16-1.5(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(34) MOUNT 8.5-14-2.5(34) MOUNT 8.5-14-2.5(34) MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(36) SPACER 6.2-9-15.7(36) SPACER 6.2-9-15.7(36) SPACER 6.2-9-15.7(36) SPACER 6.2-9-15.7(37) COVER(38) WIRING DIAGRAM DECAL



Parts List
2014 :: 40 HP :: 4 Stroke Nissan NSF40A :: ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(2) ENGINE TEMP SENSOR 3KY725100M 3KY725100M $24.79 1 Sold Out View More Details
(3) BRACKET 3KY069010M 3KY069010M ELECTRIC BRACKET $54.54 1
(4) RECTIFIER COMPLETE 3KY760650M 3KY760650M $141.83 1
(5) BOLT 9101035625M 910103-5625 $1.47 2
(6) FUSE HOLDER BRACKET 3KY760640M 3KY760640M $3.25 1 Sold Out View More Details
(7) SCREW 9215030512M 921503-5512 $0.83 2
(8) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(9) BOLT 9101035608M 910103-5608 $1.59 2
(10) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP SIDE (SB) / FOR PTT MODEL $42.82 1
(11) NUT 9301030600M 930113-0600 $0.84 3
(12) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(13) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED / FOR GAS ASSIST MODEL $2.25 2
(14) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DOWN SIDE (P) / FOR PTT MODEL $42.82 1
(15) ECU ASSY (EU USE ONLY) 3NS-06401-0 NA 40PS / EU USE ONLY $0.00 1 Sold Out View More Details
(15) ECU ASSY 3KZ064010M 3KZ064010M 40PS / STD $1,264.59 1
(16) SOLENOID SWITCH CORD (A) 3KY725820M 3KY725820M RED / FOR PTT MODEL $6.40 1
(17) BOLT 9101030620M 910103-0620 $1.04 2
(18) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(19) SOLENOID SWITCH CORD (B) 3KY725830M 3KY725830M BLACK / FOR PTT MODEL $6.40 1
(20) TERMINAL CAP 3Y1761450M 3Y1-76145-0 RED / FOR PTT MODEL $2.25 6
(21) CORD ASSY 3KY761100M 3KY761100M $479.12 1
(22) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(23) RELAY 3T1063300M 3T1-06330-0 $50.37 1
(24) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 1
(24) FUSE (20A) 3T5762470M 3T5-76247-0 $2.99 2
(25) CABLE TERMINAL PLUG 3KY760370M 3KY760370M $2.72 1
(26) BOLT 9101035612M 910103-5612 $1.07 4
(27) SCREW 9215030512M 921503-5512 $0.83 1
(28) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(29) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 1 Sold Out View More Details
(30) CAP CORD 3A3761450M 3A3-76145-0 BLACK / FOR PTT MODEL $3.39 2
(31) BOLT 9101030630M 910103-0630 $1.21 4
(32) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 INSIDE $1.41 4
(33) WASHER 6.5-21-1 346671150M 346-67115-0 OUTSIDE $1.41 4
(34) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 INSIDE $1.66 4
(35) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 OUTSIDE $1.59 4
(36) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
(37) COVER 3KY069020M 3KY069020M $14.98 1
(38) WIRING DIAGRAM DECAL 3KY720280M 3KY720280M $4.24 1
