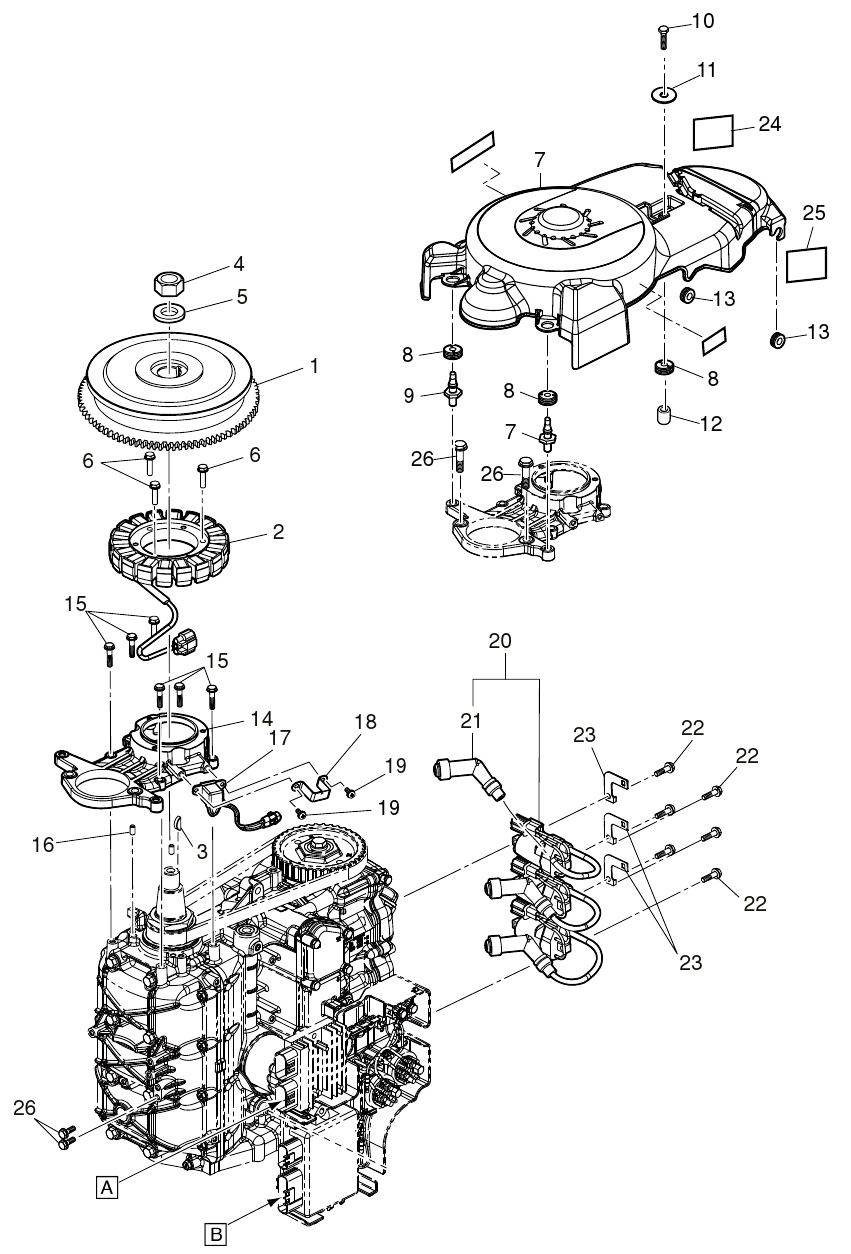

7. MAGNETO

Click Here for Microfiche Usage Tip
(1) FLYWHEEL W/GEAR(2) ALTERNATOR ASSY(3) KEY 19-7-5(4) NUT 20-P1.25(5) WASHER 20.5-37-5(6) BOLT(6) BOLT(7) RING GEAR COVER(7) RING GEAR COVER(8) GROMMET 16-2.5(8) GROMMET 16-2.5(8) GROMMET 16-2.5(9) HOOK(10) BOLT(11) WASHER 6-16-1.5(12) COLLAR 6.2-9-7.4(13) GROMMET 13-2(13) GROMMET 13-2(14) COIL BRACKET(15) BOLT(15) BOLT(16) DOWEL PIN 6-12(17) PULSAR COIL(18) PULSAR COIL GUARD(19) SCREW(19) SCREW(20) IGNITION COIL W/R-CAP(21) PLUG CAP W/RESISTANCE(22) BOLT(22) BOLT(22) BOLT(23) STAY(23) STAY(24) CAUTION DECAL (B)(24) CAUTION DECAL (B)(25) FUSE DECAL(26) BOLT(26) BOLT(26) BOLT



Parts List
2014 :: 40 HP :: 4 Stroke Nissan NSF40A :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL W/GEAR 3KY060910M 3KY060910M $387.73 1
(2) ALTERNATOR ASSY 3KY061230M 3KY061230M $342.93 1
(3) KEY MAGNETO 334001310M 334-00131-0 MAGNET $3.62 1
(4) NUT 20-P1.25 3C7001320M 3C7-00132-0 $6.93 1
(5) WASHER 20.5-37-5 3C7001330M 3C7-00133-0 $5.93 1
(6) BOLT 9101035625M 910103-5625 $1.57 3
(7) RING GEAR COVER 3KY063010M 3KY063010M $31.20 1
(8) GROMMET 16-2.5 3T1670050M 3T1-67005-0 $2.31 3
(9) RING GEAR COVER HOOK 1E0360560M 1E0-36056-0 $1.98 2
(10) BOLT 9101030620M 910103-0620 $1.11 1
(11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 1
(12) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $1.91 1 Sold Out View More Details
(13) GROMMET 13.2 172360080M 172-36008-0 $2.58 2 Sold Out View More Details
(14) COIL BRACKET 3KY060080M 3KY060080M $33.73 1 Sold Out View More Details
(15) BOLT 9101035625M 910103-5625 $1.57 6
(16) DOWEL PIN 6-12 345011110M 345-01111-0 CYLINDER BLOCK-COIL BRACKET $1.39 2
(17) PULSAR COIL 3KY060710M 3KY060710M $55.61 1
(18) PULSAR COIL GUARD 3KY060700M 3KY060700M $3.98 1
(19) SCREW 9215035512M 921503-5512 $0.88 2 Sold Out View More Details
(20) IGNITION COIL W/R-CAP 3KY064690M 3KY064690M $91.94 3
(21) PLUG CAP (WITH RESISTANCE) 3AC069990M 3AC-06999-0 $15.76 1
(22) BOLT 9101035620M 910103-5620 $1.39 6 Sold Out View More Details
(23) STAY 3KY761740M 3KY761740M $3.64 3
(24) CAUTION DECAL (B) 3KZ721810M 3KZ721810M $0.00 1 Sold Out View More Details
(24) CAUTION DECAL (B) 3KY721810M 3KY721810M $10.24 1
(25) FUSE DECAL 3KY721940M 3KY721940M $3.11 1
(26) BOLT 9101035830M 9101E3-5830 $2.02 2 Sold Out View More Details
