5. INTAKE MANIFOLD

Click Here for Microfiche Usage Tip

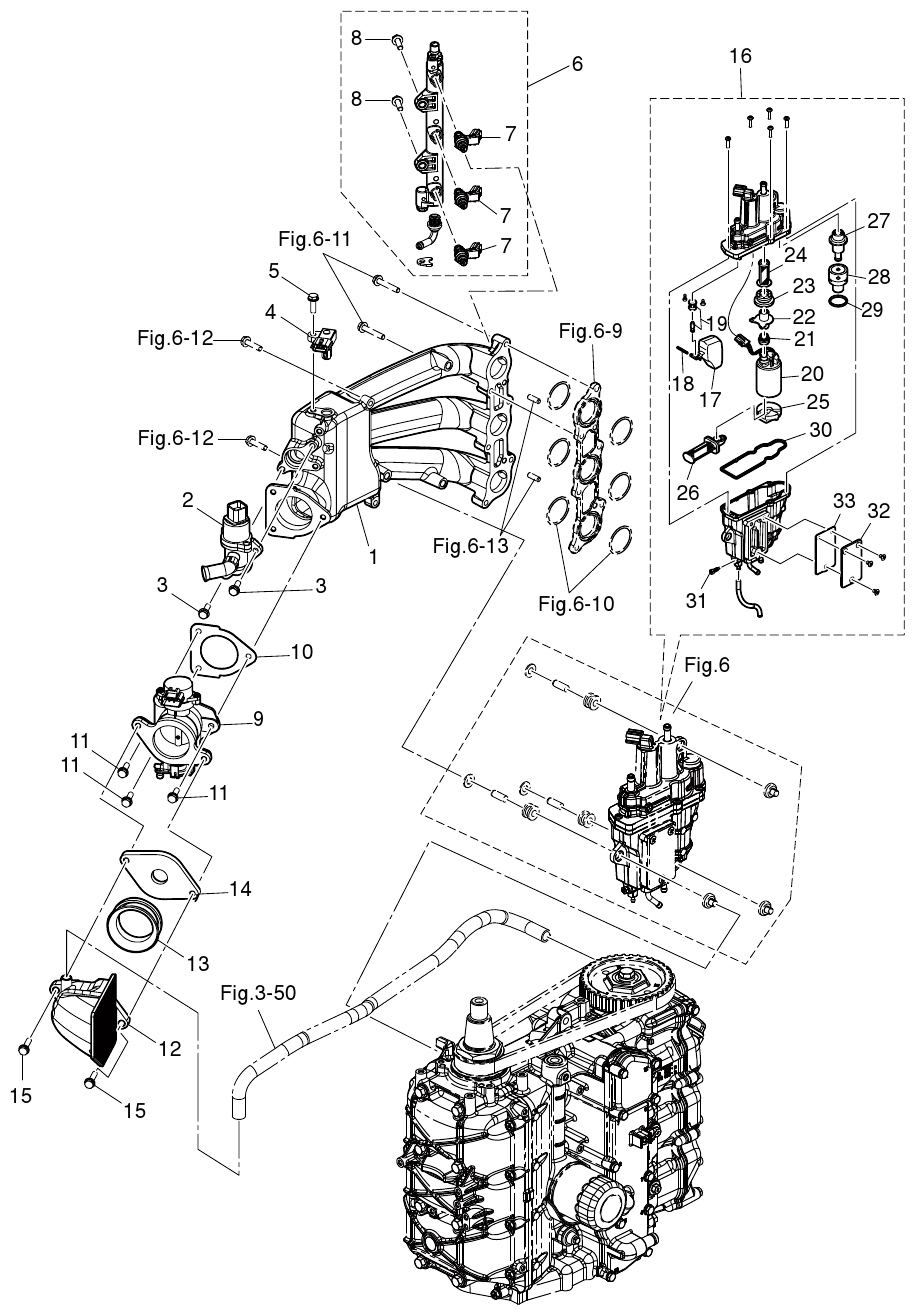

(1) INTAKE MANIFOLD(2) ISC VALVE(3) BOLT(3) BOLT(4) MAP SENSOR(5) BOLT(6) FUEL RAIL ASSY(7) FUEL INJECTOR ASSY(7) FUEL INJECTOR ASSY(7) FUEL INJECTOR ASSY(8) BOLT(8) BOLT(9) THROTTLE BODY ASSY(10) GASKET(11) BOLT(11) BOLT(11) BOLT(12) INTAKE SILENCER ASSY(13) GASKET(14) RESTRICTOR(15) BOLT(15) BOLT(16) VAPOR SEPARATOR ASSY(17) FLOAT(18) FLOAT ARM PIN(19) FLOAT VALVE ASSY(20) FUEL FEED PUMP(21) GROMMET(22) JOINT(23) GROMMET(24) FILTER (OUTLET)(25) GROMMET(26) FILTER (INLET)(27) FUEL REGULATOR(28) HOLDER(29) O-RING(30) O-RING(31) DRAIN SCREW(32) COVER(33) SEAL



Parts List
2014 :: 40 HP :: 4 Stroke Nissan NSF40A :: INTAKE MANIFOLD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3KY020910M 3KY020910M $247.78 1
(2) ISC VALVE 3KY102110M 3KY102110M IDLE SPEED CONTROL VALVE $190.95 1
(3) BOLT 9101035620M 910103-5620 $1.30 2
(4) MAP SENSOR 3KY102140M 3KY102140M MANIFOLD AIR TEMPERATURE & PRESSURE $114.55 1
(5) BOLT 9101035620M 910103-5620 $1.30 1
(6) FUEL RAIL ASSY 3KY102000M 3KY102000M $498.58 1
(7) FUEL INJECTOR ASSY 3KY103000M 3KY103000M $175.12 3
(8) BOLT 9101035620M 910103-5620 $1.30 2
(9) THROTTLE BODY ASSY 3KY101000M 3KY101000M ø45 $300.02 1
(10) GASKET 3KY101040M 3KY101040M $3.17 1
(11) BOLT 9101035620M 910103-5620 $1.30 3
(12) INTAKE SILENCER ASSY 3KY024090M 3KY024090M $27.01 1
(13) GASKET 3KY024180M 3KY024180M $7.05 1
(14) RESTRICTOR 3KY035360M 3KY035360M 40PS $3.22 1
(15) BOLT 9101035625M 910103-5625 $1.47 2
(16) VAPOR SEPARATOR ASSY 3KY101500M 3KY101500M $827.64 1
(17) FLOAT 3KY032300M 3KY032300M $83.12 1
(18) FLOAT ARM PIN 3KY032320M 3KY032320M $7.22 1
(19) FLOAT VALVE ASSY 3KY032390M 3KY032390M $7.07 1
(20) FUEL FEED PUMP 3KY043020M 3KY043020M UPPER $379.91 1 Sold Out View More Details
(21) GROMMET 3KY043190M 3KY043190M UPPER $27.24 1 Sold Out View More Details
(22) JOINT 3KY043200M 3KY043200M UPPER $8.14 1
(23) GROMMET 3KY043130M 3KY043130M UPPER $8.33 1
(24) FILTER (OUTLET) 3KY043210M 3KY043210M LOWER $40.89 1 Sold Out View More Details
(25) GROMMET 3KY043140M 3KY043140M LOWER $16.36 1
(26) FILTER (INLET) 3KY043220M 3KY043220M $19.09 1
(27) FUEL REGULATOR 3KY101540M 3KY101540M $200.39 1
(28) HOLDER 3KY101570M 3KY101570M $8.14 1
(29) O-RING 3KY100950M 3KY100950M $7.50 1
(30) O-RING 3KY032350M 3KY032350M $11.46 1
(31) DRAIN SCREW 3KY032920M 3KY032920M $5.34 1
(32) COVER 3KY101790M 3KY101790M $31.35 1
(33) SEAL 3KY101800M 3KY101800M $50.44 1 Sold Out View More Details
