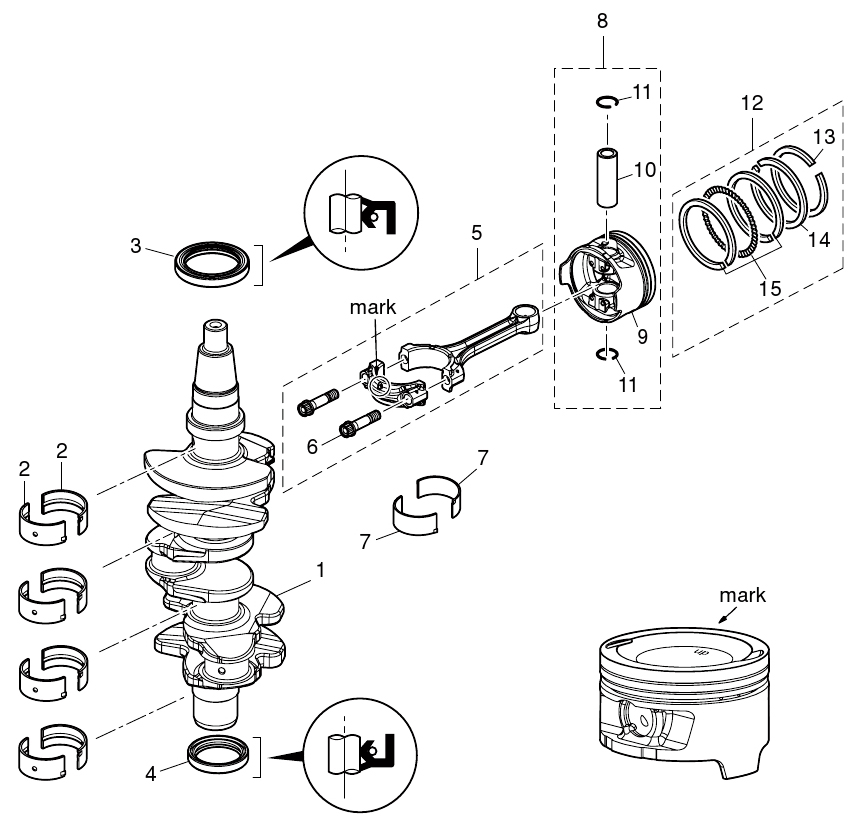

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANKSHAFT ASSY(2) PLAIN SHAFT BEARING(2) PLAIN SHAFT BEARING(2) PLAIN SHAFT BEARING(2) PLAIN SHAFT BEARING(2) PLAIN SHAFT BEARING(2) PLAIN SHAFT BEARING(3) OIL SEAL 50-68-9(4) OIL SEAL 38-50-8(5) CONNECTING ROD ASSY(6) CONNECTING ROD BOLT(7) BIG END BEARING (BROWN)(7) BIG END BEARING (BROWN)(7) BIG END BEARING (BLACK)(7) BIG END BEARING (BLACK)(7) BIG END BEARING (BLUE)(7) BIG END BEARING (BLUE)(8) PISTON REPAIR KIT(8) PISTON REPAIR KIT (0.5 O/S)(9) PISTON o70(9) PISTON (0.5 O/S)o70.5(10) PISTON PIN(11) PISTON PIN CLIP(11) PISTON PIN CLIP(12) PISTON RING SET o70(12) PISTON RING SET (0.5 O/S) o70.5(OS)(13) PISTON RING(13) PISTON RING (0.5 O/S) o70.5(OS)(14) PISTON RING(14) PISTON RING (0.5 O/S) o70.5(OS)(15) PISTON RING-OIL(15) PISTON RING-OIL (0.5 O/S) o70.5(OS)



Parts List
2014 :: 40 HP :: 4 Stroke Nissan NSF40A :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3KY000300M 3KY000300M $937.60 1 Sold Out View More Details
(2) PLAIN SHAFT BEARING 3KY077070M 3KY077070M BROWN / SEE SERVICE MANUAL $6.82 0 Sold Out View More Details
(2) PLAIN SHAFT BEARING 3KY077080M 3KY077080M BLACK / SEE SERVICE MANUAL $6.82 0 Sold Out View More Details
(2) PLAIN SHAFT BEARING 3KY077500M 3KY077500M BLUE / SEE SERVICE MANUAL $6.82 0
(3) OIL SEAL 50-68-9 3KY001220M 3KY001220M UPPER $14.58 1
(4) OIL SEAL 38-50-8 3KY001210M 3KY001210M LOWER $40.92 1
(5) CONNECTING ROD ASSY 3KY000400M 3KY000400M $94.10 3
(6) CONNECTING ROD BOLT 3KY000590M 3KY000590M $7.50 2
(7) BIG END BEARING (BROWN) 3KY000800M 3KY000800M BROWN / SEE SERVICE MANUAL $6.70 0
(7) BIG END BEARING (BLACK) 3KY000810M 3KY000810M BLACK / SEE SERVICE MANUAL $6.70 0
(7) BIG END BEARING (BLUE) 3KY000820M 3KY000820M BLUE / SEE SERVICE MANUAL $6.70 0
(7) BIG END BEARING (BROWN) 3KY000800M 3KY000800M BROWN / SEE SERVICE MANUAL $6.70 0
(7) BIG END BEARING (BLACK) 3KY000810M 3KY000810M BLACK / SEE SERVICE MANUAL $6.70 0
(7) BIG END BEARING (BLUE) 3KY000820M 3KY000820M BLUE / SEE SERVICE MANUAL $6.70 0
(8) PISTON REPAIR KIT 3KY871300M 3KY871300M STD $57.07 3 Sold Out View More Details
(8) PISTON REPAIR KIT (0.5 O/S) 3KY871310M 3KY871310M OPT $71.71 3 Sold Out View More Details
(9) PISTON ø70 3KY000010M 3KY000010M STD $46.40 1
(9) PISTON (0.5 O/S)ø70.5 3KY000040M 3KY000040M OPT $62.06 1
(10) PISTON PIN 3KY000210M 3KY000210M $11.33 1
(11) PISTON PIN CLIP 3LC000240M 3LC000240M $1.18 2
(12) PISTON RING SET ø70 3KY871230M 3KY871230M STD $24.55 3
(12) PISTON RING SET (0.5 O/S) ø70.5(OS) 3KY871240M 3KY871240M OPT $34.30 3
(13) PISTON RING 3KY000110M 3KY000110M 1ST / STD $10.65 1
(13) PISTON RING (0.5 O/S) ø70.5(OS) 3KY000140M 3KY000140M OPT $13.72 1
(14) PISTON RING 3KY000120M 3KY000120M 2ND / STD $10.65 1
(14) PISTON RING (0.5 O/S) ø70.5(OS) 3KY000150M 3KY000150M 2ND / OPT $13.72 1
(15) PISTON RING-OIL 3KY000130M 3KY000130M OIL / STD $0.00 1 Sold Out View More Details
(15) PISTON RING-OIL (0.5 O/S) ø70.5(OS) 3KY000160M 3KY000160M OIL / OPT $0.00 1 Sold Out View More Details
