27. FUEL TANK

Click Here for Microfiche Usage Tip

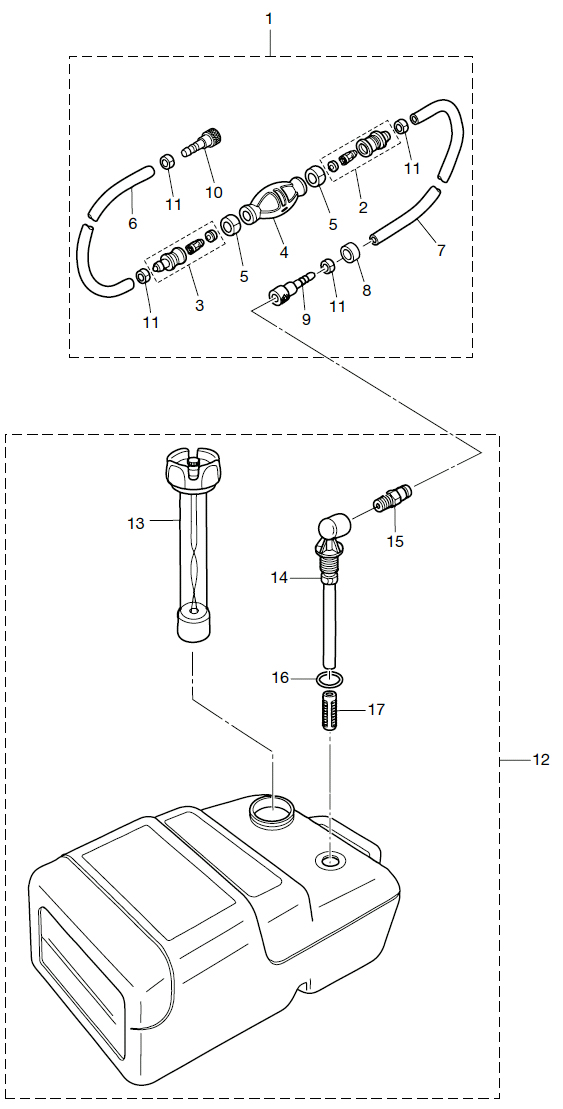

(1) PRIMER BULB ASSY(1) PRIMER BULB ASSY(2) JOINT ASSY (INLET)(3) JOINT ASSY (OUTLET)(4) PRIMER BULB(4) PRIMER BULB(5) CLAMP(5) CLAMP(6) HOSE(6) LOW PERMEATION HOSE L=700(7) HOSE(7) LOW PERMEATION HOSE L=1600(8) FUEL CONNECTOR MARK(9) FUEL CONNECTOR(10) FUEL CONNECTOR(11) CLAMP(11) CLAMP(11) CLAMP(11) CLAMP(12) FUEL TANK ASSY 25L (TOHATSU)(12) FUEL TANK ASSY 25L (NISSAN)(13) FUEL GAUGE VENT CAP ASSY (25L)(14) PICK-UP ELBOW ASSY (25L)(15) QUICK-CONNECTOR (MALE)(16) O-RING(17) FILTER



Parts List
2014 :: 40 HP :: TLDI Nissan NSD40B2 :: FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3B7702004M 3B7-70200-3 STD $125.87 1
(1) PRIMER BULB ASSY 3GF702004M 3GF-70200-4 LOW PERMEATION PARTS / FOR USA MODEL $137.78 1
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 STD $22.31 1
(4) PRIMER BULB 3GF702111M 3GF-70211-0 $53.09 1
(5) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(6) RUBBER HOSE 98AB70700M 98AB-7-0700 STD / 98AB-701000 $13.44 1
(6) LOW PERMEATION HOSE L=700 3GF702411M 3GF-70241-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(7) HOSE 98AB701600M 98AB-701600 STD / 98AB-701000 X2 $13.44 1
(7) LOW PERMEATION HOSE L=1600 3GF702401M 3GF-70240-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(8) FUEL CONNECTOR MARK 3B7702801M 3B7-70280-1 $2.62 1
(9) FUEL CONNECTOR 3GF702810M 3GF-70281-0 $24.91 1
(10) FUEL CONNECTOR 3GF702500M 3GF-70250-0 $22.14 1
(11) CLAMP 332702010M 332-70201-0 $2.07 4
(12) FUEL TANK ASSY 25L 3C7701771M 3C7-70177-1 TOHATSU $102.65 1
(12) FUEL TANK ASSY 25L (NISSAN) 3AE701771M 99998FT26M NISSAN $102.65 1
(13) FUEL GAUGE VENT CAP ASSY (25L) 3C7700501M 3C7-70050-0 $0.00 1 Sold Out View More Details
(14) ELBOW TUBING AND CLAMP ASSY 3C7701550M 3C7-70155-0 $13.52 1
(15) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(16) O-RING 3C7701990M 3C7-70199-0 $1.24 1
(17) FILTER 3C7701130M 3C7-70113-0 $3.20 1
