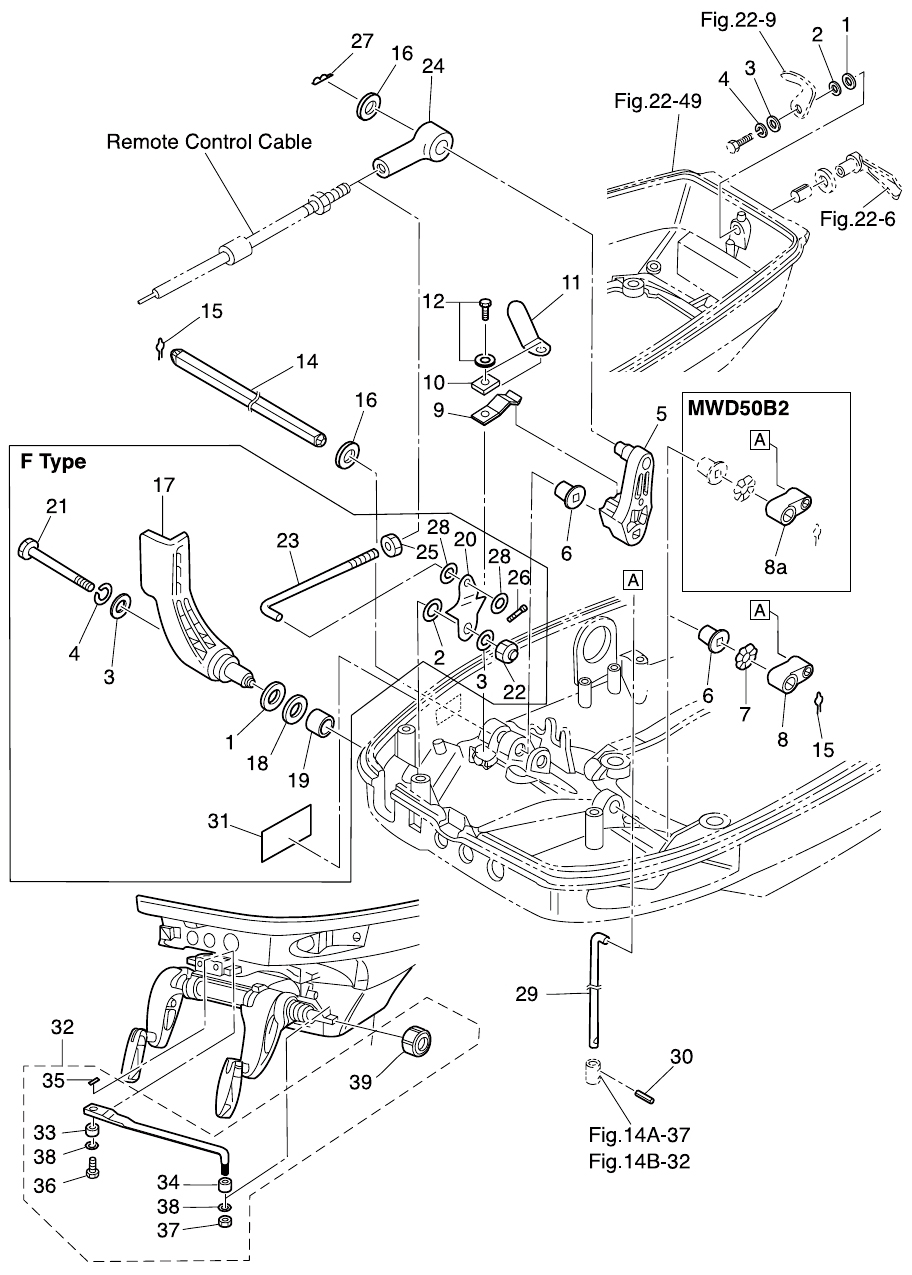

25. SHIFT

Click Here for Microfiche Usage Tip
(1) WASHER 14-22-1(1) WASHER 14-22-1(1) WASHER 14-22-1(1) WASHER 14-22-1(2) WAVE WASHER D=14(2) WAVE WASHER D=14(2) WAVE WASHER D=14(2) WAVE WASHER D=14(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(3) WASHER 6-16-1.5(4) SPRING WASHER(4) SPRING WASHER(4) SPRING WASHER(4) SPRING WASHER(5) SHIFT ARM(6) BUSHING(6) BUSHING(7) WAVE WASHER D=12(8) SHIFT ROD LEVER(8A) SHIFT ROD LEVER(9) SHIFT LEVER STOPPER(9) SHIFT LEVER STOPPER(10) SHIFT LEVER STOPPER(11) CLAMP 6.5-47.5P(12) BOLT(14) SHIFT LEVER SHAFT(15) SNAP RETAINER D=8(15) SNAP RETAINER D=8(16) WASHER 8.5-18-1.6(16) WASHER 8.5-18-1.6(16) WASHER 8.5-18-1.6(16) WASHER 8.5-18-1.6(16) WASHER 8.5-18-1.6(16) WASHER 8.5-18-1.6(17) SHIFT LEVER(18) SEAL RING 13.8-22-5(19) HOOK LEVER BUSHING 14-16.5-17.7(20) SHIFT LEVER (REMOTE CONTROL)(21) BOLT(22) NYLON NUT 6-P1.0(23) SHIFT LEVER ROD(24) CABLE JOINT(24) CABLE JOINT(25) NUT 10-32UNF(26) SPLIT PIN 2-12(27) SNAP PIN D=8(27) SNAP PIN D=8(28) WASHER(28) WASHER(29) SHIFT ROD(30) SPRING PIN 3-12(31) SHIFT DECAL(32) DRAG LINK ASSY(33) COLLAR 9.6-13-6.5(34) COLLAR 9.6-19-6(35) SPLIT PIN(36) BOLT 3/8-19(37) NYLON NUT 3/8-24UNF(38) WASHER 9.6-18-2(38) WASHER 9.6-18-2(39) SEAL RING



Parts List
2014 :: 40 HP :: TLDI Nissan NSD40B2 :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) WASHER 14-22-1 3C8671460M 3C8-67146-0 FOR EP TYPE / HOOK LEVER $1.57 1
(1) WASHER 14-22-1 3C8671460M 3C8-67146-0 FOR EF TYPE / HOOK LEVER SHIFT LEVER $1.57 2
(2) WAVE WASHER D=14 9414031400M 941403-1400 FOR EP TYPE / HOOK LEVER $0.88 1
(2) WAVE WASHER D=14 9414031400M 941403-1400 FOR EF TYPE / HOOK LEVER SHIFT LEVER $0.88 2
(3) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR EP TYPE / HOOK LEVER $1.50 1
(3) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR EF TYPE / HOOK LEVER SHIFT LEVER $1.50 3
(4) SPRING WASHER 9413030600M 941303-0600 FOR EP TYPE / HOOK LEVER $0.90 1
(4) SPRING WASHER 9413030600M 941303-0600 FOR EF TYPE / HOOK LEVER SHIFT LEVER $0.90 2
(5) SHIFT ARM 3C8661221M 3C8-66122-1 $8.88 1
(6) SHIFT LEVER SHAFT BUSHING 350671010M 350-67101-0 $2.21 2
(7) WAVE WASHER D=12 9414031200M 941403-1200 $0.83 1
(8) SHIFT ROD LEVER 3C8662250M 3C8-66225-0 MD30/40/50B2 $8.12 1
(8A) SHIFT ROD LEVER 3S7662250 3S7-66225-0 MWD50B2 $0.00 0 Sold Out View More Details
(9) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 FOR EP TYPE / SHIFT ARM $2.02 1
(9) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 FOR EF TYPE $2.02 2
(10) SHIFT LEVER STOPPER PLATE 3BA661170M 3BA-66117-0 $3.18 1
(11) CLAMP 6.5-47.5P 3PR-06972-0 NA $2.21 1
(12) BOLT 9101035616M 910103-5616 $1.22 1 Sold Out View More Details
(14) SHIFT SHAFT 3C8661350M 3C8-66135-0 $16.73 1
(15) SNAP RETAINER D=8 9517030800M 951703-0800 SHIFT LEVER SHAFT $0.88 2
(16) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EP TYPE / SHIFT LEVER SHAFT $2.56 1
(16) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EF TYPE / LEVER SHAFT SHIFT ARM $2.56 2
(16) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EP TYPE / SHIFT ARM $2.56 1
(17) SHIFT LEVER 3T5661100M 3T5-66110-0 FOR EF TYPE $64.68 1
(18) SEAL RING 13.8-22-5 3T5671470M 3T5-67147-0 FOR EF TYPE $8.91 1
(19) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 FOR EF TYPE $1.78 1
(20) SHIFT LEVER B 3T5661290M 3T5-66129-0 FOR EF TYPE $13.69 1
(21) BOLT 9101030670M 910103-0670 FOR EF TYPE $3.00 1
(22) NYLON NUT 6-P 1.0 9304030600M 930403-0600 FOR EF TYPE $2.40 1
(23) SHIFT LEVER ROD 3T5661340M 3T5-66134-0 FOR EF TYPE $9.44 1
(24) CABLE JOINT 3B7837152M 3B7-83715-0 ROD END / FOR EF TYPE $5.16 1
(24) CABLE JOINT 3B7837152M 3B7-83715-0 CABLE END / FOR EP TYPE $5.16 1
(25) NUT (NO. 10-32VNF) 3B2838650M 3B2-83865-0 FOR EF TYPE $1.36 1
(26) SPLIT PIN 2-12 9515030212M 951503-0212 FOR EF TYPE $1.02 1
(27) SNAP PIN D=8 9516030800M 951603-0800 ROD END / FOR EF TYPE $0.75 1
(27) SNAP PIN D=8 9516030800M 951603-0800 CABLE END / FOR EP TYPE $0.75 1
(28) WASHER 9401030500M 940103-0500 FOR EF TYPE $0.56 2
(29) SHIFT ROD 3C8662110M 3C8-66211-0 $16.97 1
(30) SPRING PIN 3-12 9514030312M 951403-0312 $0.88 1
(31) SHIFT DECAL 3T5675780M 3T5-67578-0 FOR EF TYPE $2.40 1
(32) DRAG LINK E 3C8849102M 3C8-84910-2 FOR EP TYPE $141.41 1
(33) COLLAR 9.6-13-6.5 3C8849141M 3C8-84914-1 FOR EP TYPE $3.50 1
(34) COLLAR 9.6-19-6 3C8849160M 3C8-84916-0 FOR EP TYPE $5.43 1
(35) SPLIT PIN 2-15 9515030215M 951503-0214 FOR EP TYPE $0.90 1
(36) SPLIT PIN 2-15 9515030215M 951503-0214 FOR EP TYPE $0.90 1
(37) NYLON NUT 3/8 353849180M 353-84918-0 FOR EP TYPE $7.05 1
(38) WASHER 9.6-18-2 353849160M 353-84916-0 FOR EP TYPE $1.56 2
(39) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR EP TYPE $2.74 1
