25. OPTIONAL PARTS & ACCESSORIES (1)

Click Here for Microfiche Usage Tip

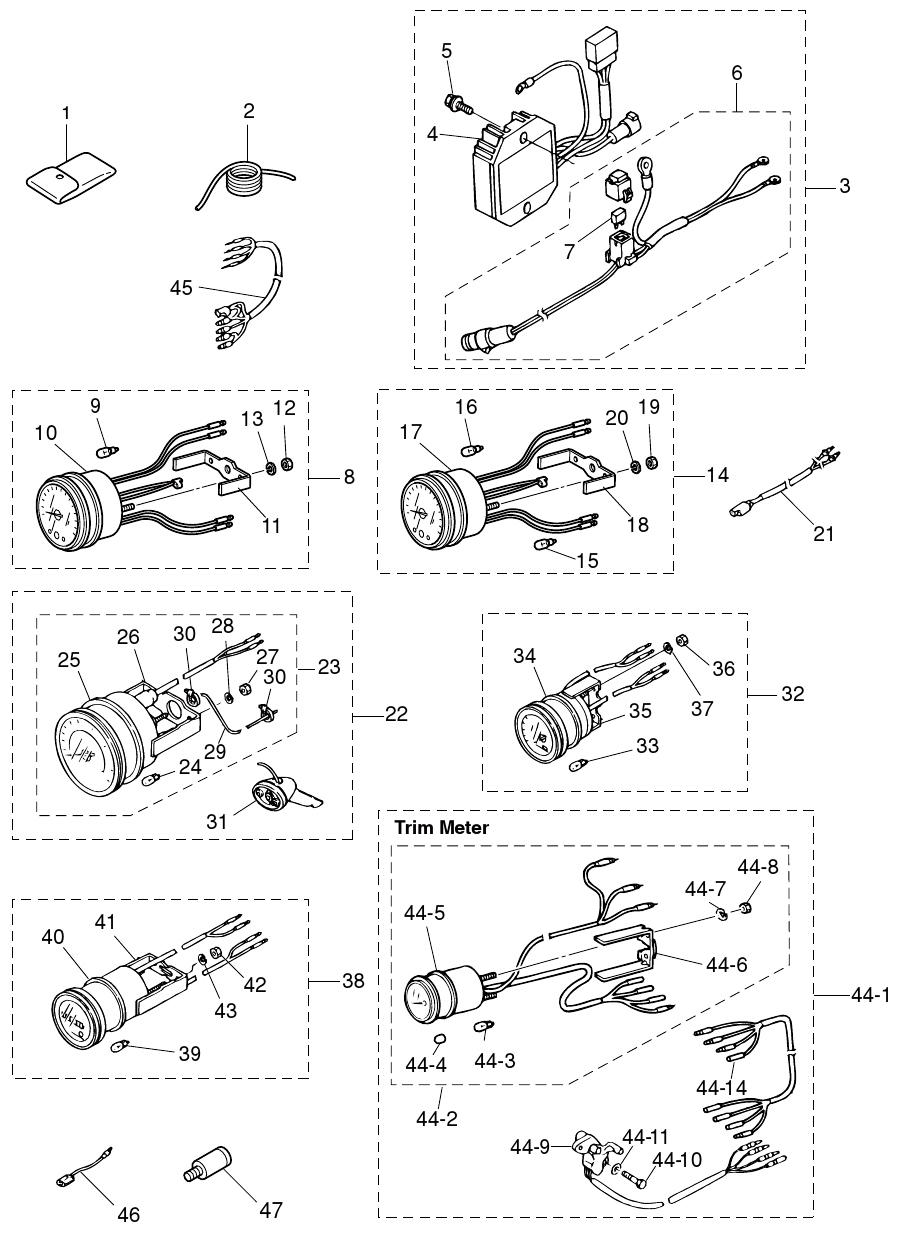

(1) TOOL KIT(2) SAFETY ROPE o6-1600(3) RECTIFIER KIT(4) RECTIFIER COMPLETE(5) BOLT(6) EXTENSION CORD L=3000(7) FUSE 20A(8) TACHOMETER (BLACK)(8) TACHOMETER (WHITE)(8) TACHOMETER ASSY(9) METER BULB 12V-1.8W(10) METER DAMPER(11) FITTING PLATE(12) NUT(13) SPRING WASHER(14) TACHOMETER (BLACK)(14) TACHOMETER (WHITE)(14) TACHOMETER W/OIL LAMP(15) OIL BULB 12V-1.7W(16) METER BULB 12V-1.8W(17) METER DAMPER(18) FITTING PLATE(19) NUT(20) SPRING WASHER(21) TACHOMETER LEAD WIRE L=6000(22) SPEEDOMETER (BLACK)(22) SPEEDOMETER (WHITE)(22) SPEEDOMETER KIT (50MPH)(22) SPEEDOMETER KIT (75MPH)(23) SPEEDOMETER (BLACK)(23) SPEEDOMETER (WHITE)(23) SPEEDOMETER ASSY (50MPH)(23) SPEEDOMETER ASSY (75MPH)(24) METER BULB 12V-1.8W(25) METER DAMPER(26) FITTING PLATE(27) NUT(28) SPRING WASHER(29) SPEEDOMETER TUBE L=6000(30) SPEEDOMETER BAND(30) SPEEDOMETER BAND(31) SPEEDOMETER SENSOR(32) VOLTMETER (BLACK)(32) VOLTMETER (WHITE)(32) VOLTMETER ASSY(33) METER BULB 12V-1.7W(34) METER DAMPER(35) FITTING PLATE(36) NUT(37) SPRING WASHER(38) HOUR METER (BLACK)(38) HOUR METER (WHITE)(38) HOUR METER ASSY(39) METER BULB 12V-1.7W(40) METER DAMPER(41) FITTING PLATE(42) NUT(43) SPRING WASHER(44-1) TRIM METER (BLACK)(44-1) TRIM METER (WHITE)(44-1) TRIM METER KIT(44-2) TRIM METER ASSY(44-3) METER BULB 12V-1.7W(44-4) METER BULB CAP(44-5) METER DAMPER(44-6) FITTING PLATE(44-7) SPRING WASHER(44-8) NUT(44-9) TRIM SENSOR L=1700(44-10) BOLT(44-11) WASHER 6-16-1.5(44-14) EXTENSION CORD (TRIM SENSOR) L=6000(45) METER LEAD WIRE L=2000(46) ASSIST CORD (BLU) L=200(46) ASSIST CORD (BLK) L=200(46) ASSIST CORD (RED) L=200(47) FLUSHING PLUG



Parts List
2014 :: 25 HP :: 4 Stroke Nissan NSF25B :: OPTIONAL PARTS & ACCESSORIES (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3BJ721000M 3H6-72100-0 $28.06 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(3) RECTIFIER KIT 3AC761602M 3AC-76160-2 $191.46 1
(4) RECTIFIER COMPLETE 3AC760652M 3AC-76065-2 $127.36 1
(5) BOLT 9101035625M 910103-5625 RECTIFIER $1.47 2
(6) EXTENSION CORD L=3000 3AC761610M 3AC-76161-0 $70.66 1
(7) FUSE (20A) 3T5762470M 3T5-76247-0 $2.99 2
(8) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(8) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(8) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 FOR JAPAN $0.00 1 Sold Out View More Details
(9) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3B7-72530-2 $0.00 1 Sold Out View More Details
(10) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3B7-72530-2 $3.27 1
(11) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3B7-72530-2 $25.33 1
(12) NUT 9301030500M 930103-0500 FOR 3B7-72530-2 $0.86 2
(13) SPRING WASHER 9413030500M 941303-0500 FOR 3B7-72530-2 $0.90 2
(14) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(14) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(14) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 FOR JAPAN $0.00 1 Sold Out View More Details
(15) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR 3N8-72640-1 $3.27 1
(16) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3N8-72640-1 $0.00 1 Sold Out View More Details
(17) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3N8-72640-1 $3.27 1
(18) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3N8-72640-1 $25.33 1
(19) NUT 9301030500M 930103-0500 FOR 3N8-72640-1 $0.86 2
(20) SPRING WASHER 9413030500M 941303-0500 FOR 3N8-72640-1 $0.90 2
(21) TACHOMETER LEAD CABLE 361725390M 361-72539-0 $50.65 1
(22) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(22) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(22) SPEEDOMETER 50MPH KIT 3E0725220M 3E0-72522-0 $0.00 1 Sold Out View More Details
(22) SPEEDOMETER 75MPH KIT 3E0726440M 3E0-72644-0 $0.00 1 Sold Out View More Details
(23) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(23) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(23) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 FOR 3E0-72644-0 & 3E0-72648-0 $0.00 1 Sold Out View More Details
(23) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 FOR 3E0-72644-0 & 3E0-72648-0 $0.00 1 Sold Out View More Details
(24) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3E0-72644-0 & 3E0-72648-0 $0.00 1 Sold Out View More Details
(25) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3E0-72644-0 & 3E0-72648-0 $3.27 1
(26) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3E0-72644-0 & 3E0-72648-0 $25.33 1
(27) NUT 9302030500M 930203-0500 FOR 3E0-72644-0 & 3E0-72648-0 $0.60 2
(28) SPRING WASHER 9413030500M 941303-0500 FOR 3E0-72644-0 & 3E0-72648-0 $0.90 2
(29) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 FOR 3E0-72644-0 & 3E0-72648-0 $27.66 1 Sold Out View More Details
(30) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 FOR 3E0-72644-0 & 3E0-72648-0 $2.07 2 Sold Out View More Details
(31) SPEEDOMETER SENDER 3B7726430M 3B7-72643-0 FOR 3E0-72644-0 & 3E0-72648-0 $52.86 1 Sold Out View More Details
(32) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(32) VOLTMETER (WHITE) 3FL725290M NA $0.00 1 Sold Out View More Details
(32) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(33) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72529-0 $0.00 1 Sold Out View More Details
(34) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72529-0 $2.68 1
(35) FITTING PLATE 3B7726620M 3B7-72662-0 FOR 3E0-72529-0 $19.58 1 Sold Out View More Details
(36) NUT 9302030400M 930203-0400 FOR 3E0-72529-0 $0.00 2 Sold Out View More Details
(37) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72529-0 $0.90 2
(38) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(38) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(38) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(39) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72524-0 $0.00 1 Sold Out View More Details
(40) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72524-0 $2.68 1
(41) FITTING PLATE 3B7726640M 3B7-72664-0 FOR 3E0-72524-0 $19.58 1 Sold Out View More Details
(42) NUT 9302030400M 930203-0400 FOR 3E0-72524-0 $0.00 2 Sold Out View More Details
(43) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72524-0 $0.90 2
(44-1) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(44-1) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(44-1) TRIM METER KIT 3R0725252M 3R0-72525-2 $0.00 1 Sold Out View More Details
(44-2) TRIM METER 3T1725710M 3F3-72574-1 FOR 3R0-72525-2 $0.00 1 Sold Out View More Details
(44-3) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 FOR 3R0-72525-2 $3.85 1 Sold Out View More Details
(44-4) METER BULB CAP 3T1726530M 3T1-72653-0 FOR 3R0-72525-2 $2.40 1 Sold Out View More Details
(44-5) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3R0-72525-2 $2.68 1
(44-6) FITTING PLATE 3T1726650M 3T1-72665-0 FOR 3R0-72525-2 $12.61 1 Sold Out View More Details
(44-7) SPRING WASHER 9413030400M 941303-0400 FOR 3R0-72525-2 $0.90 2
(44-8) NUT 9302030400M 930203-0400 FOR 3R0-72525-2 $0.00 2 Sold Out View More Details
(44-9) TRIM SENSOR 3Z4725740M 3Z4-72574-0 FOR 3R0-72525-2 $220.86 1
(44-10) BOLT 9101030620M 910103-0620 FOR 3R0-72525-2 $1.04 2
(44-11) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR 3R0-72525-2 $1.41 2
(44-14) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 FOR 3R0-72525-2 $42.93 1
(45) LEAD WIRE METER 3R0725371M 3R0-72537-1 $65.87 1
(46) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 1
(46) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(46) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(47) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
