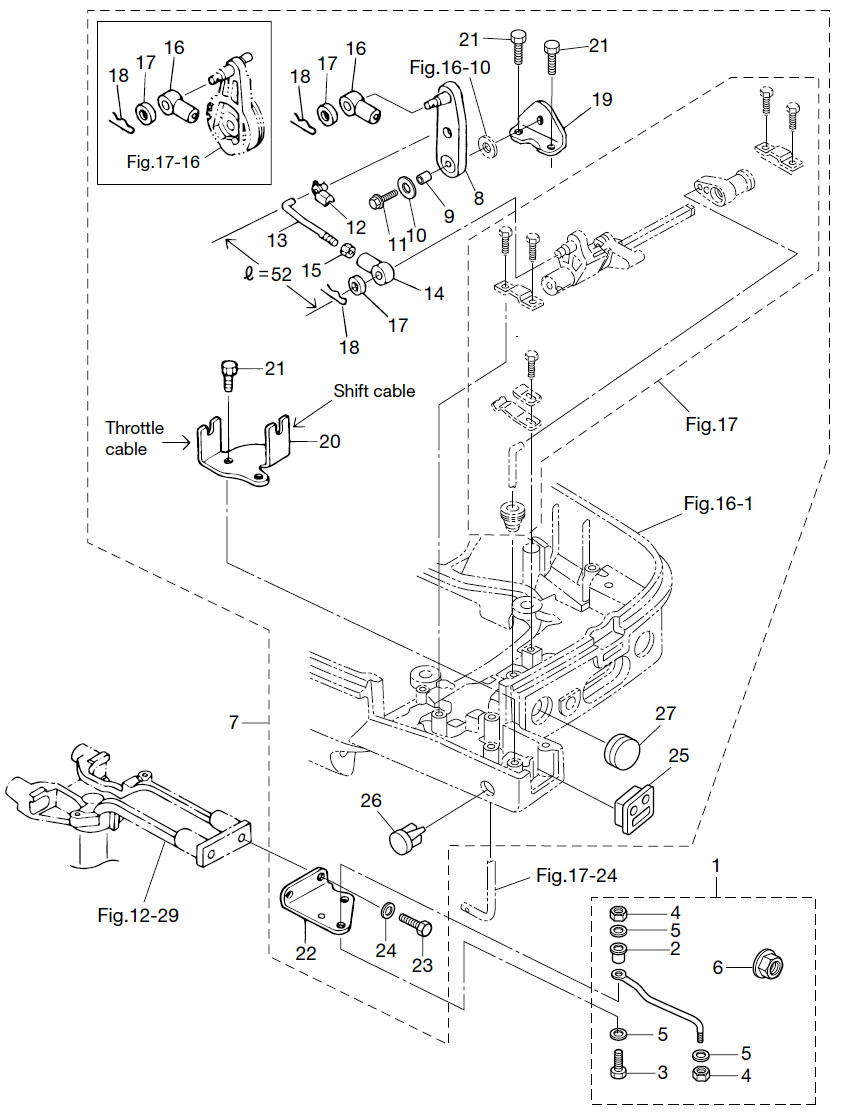

19. REMOTE CONTROL

Click Here for Microfiche Usage Tip
(1) DRAG LINK ASSY(2) SPACER(3) BOLT 3/8-50(4) NYLON NUT 3/8-24UNF(4) NYLON NUT 3/8-24UNF(5) WASHER 9.6-18-2(5) WASHER 9.6-18-2(5) WASHER 9.6-18-2(6) SEAL RING(7) REMOTE CONTROL FITTING ASSY(8) SHIFT ARM(9) COLLAR 6.2-9-9.3(10) WASHER 6-16-1.5(11) BOLT(12) ROD SNAP 5-3(13) SHIFT LEVER ROD 4.5-40.5(14) CABLE JOINT(15) NUT(16) CABLE JOINT(16) CABLE JOINT(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(17) WASHER 8.5-18-1.6(18) SNAP PIN D=8(18) SNAP PIN D=8(18) SNAP PIN D=8(19) BRACKET(20) CABLE CLIP ASSY(21) BOLT(21) BOLT(21) BOLT(22) STEERING HOOK PLATE(23) BOLT(24) WASHER(25) GROMMET(26) PLUG(27) GROMMET 17-2.7



Parts List
2014 :: 25 HP :: 4 Stroke Nissan NSF25B :: REMOTE CONTROL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 FOR EP/EPT $154.19 1
(2) SPACER 3E0849140M 3E0-84914-0 FOR EP/EPT $7.32 1
(3) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 FOR EP/EPT $11.28 1
(4) NYLON NUT 3/8 353849180M 353-84918-0 FOR EP/EPT $6.59 2
(5) WASHER 9.6-18-2 353849160M 353-84916-0 FOR EP/EPT $1.45 3
(6) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR EP/EPT $2.56 1 Sold Out View More Details
(7) REMOTE CONTROL FITTING ASSY 3AC838802M 3AC838802M $68.31 1
(8) SHIFT ARM 3AC661220M 3AC-66122-0 $3.83 1
(9) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(10) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 SHIFT ARM $1.59 1 Sold Out View More Details
(11) BOLT 9101E30620M 9101E3-0620 $1.04 1
(12) ROD SNAP 5-3 3C8637330M 3C8-63733-0 $1.45 1
(13) LINK 4.5 - 40.5 3R0637090M 3R0-63709-0 $2.10 1
(14) CABLE JOINT 3R0837150M 3R0-83715-0 $2.40 1
(15) NUT 9301030500M 930103-0500 $0.86 1
(16) CABLE JOINT 3B7837152M 3B7-83715-0 $4.83 2
(17) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 3
(18) SNAP PIN D=8 9516030800M 951603-0800 $0.70 3
(19) BRACKET SHIFT ARM 3R0661260M 3R0-66126-0 $11.51 1
(20) BRACKET CABLE 3R0838200M 3R0-83820-0 $8.12 1
(21) BOLT (OR 910113-5616) 9101E35616M 910113-5616 SHIFT ARM / CABLE CLIP $1.15 3
(22) STEERING HOOK PLATE 3R0838300M 3R0-83830-0 $10.35 1
(23) BOLT 9101031030M 910103-1030 $2.51 2
(24) WASHER 9401031000M 940103-1000 $1.50 2
(25) GROMMET CONTROL CABLE 3R0837320M 3R0-83732-0 $4.15 1
(26) PLUG 3B7010460M 3B7-01046-0 $1.41 1
(27) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 2 Sold Out View More Details
