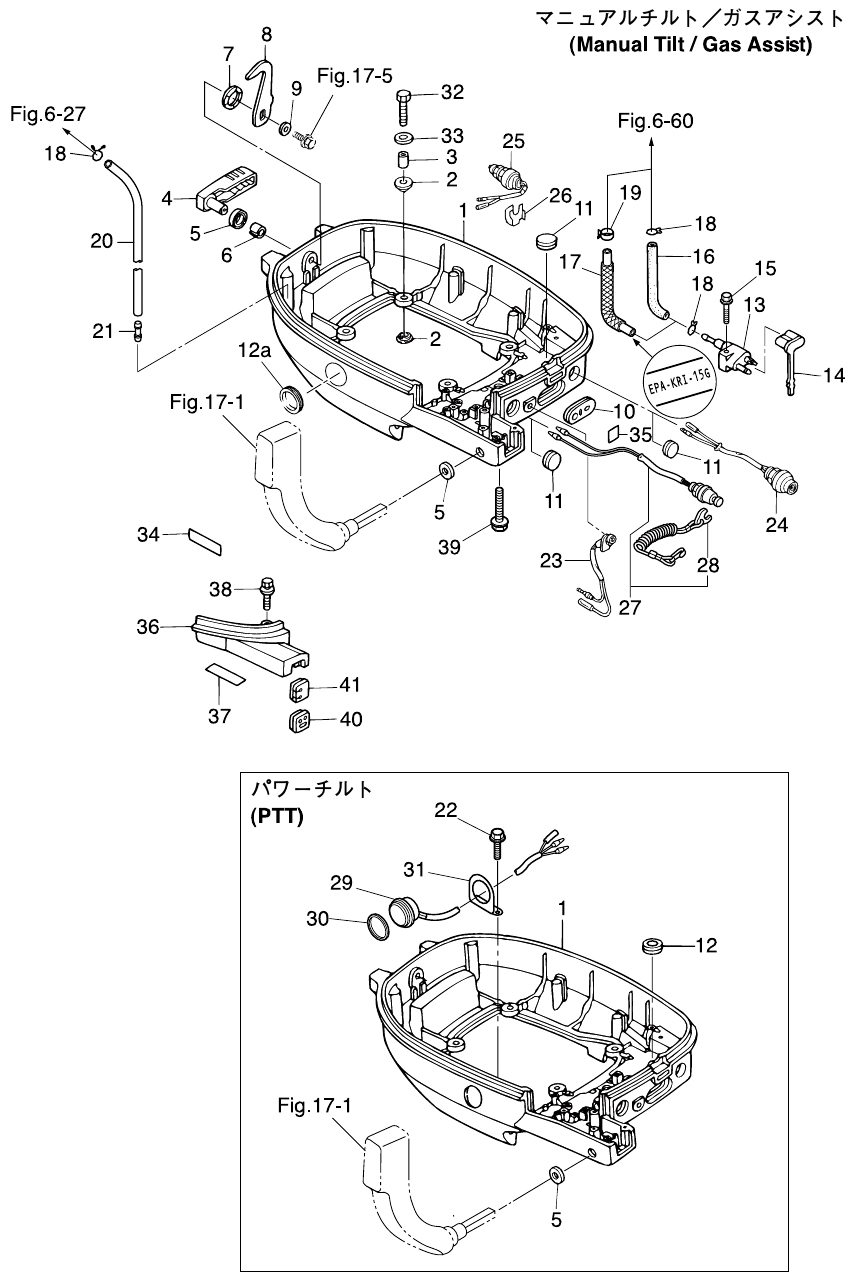

17. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(1) BOTTOM COWL(2) MOUNT 8.5-14-2.5(2) MOUNT 8.5-14-2.5(3) SPACER 6.2-9-15.7(4) HOOK LEVER(5) SEAL RING 13.8-22-3.7(5) SEAL RING 13.8-22-3.7(5) SEAL RING 13.8-22-3.7(5) SEAL RING 13.8-22-3.7(5) SEAL RING 13.8-22-3.7(5) SEAL RING 13.8-22-3.7(6) HOOK LEVER BUSHING 14-16.5-17.7(7) WAVE WASHER D=14(8) COVER HOOK(9) WASHER 6-16-1.5(9) WASHER 6-16-1.5(10) GROMMET(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(11) GROMMET 17-2.7(12) GROMMET 18-2.5(12A) GROMMET(13) FUEL CONNECTOR (MALE)(14) FUEL CONNECTOR PROTECTOR(15) BOLT(16) HOSE(17) FUEL HOSE W/PROTECTOR L=300(18) CLIP o10(18) CLIP o10(18) CLIP o10(18) CLIP o10(18) CLIP o10(18) CLIP o10(19) CLIP o9.4(20) HOSE(21) NIPPLE(22) BOLT(22) BOLT(23) PILOT LAMP ASSY(24) MAIN SWITCH ASSY(25) NEUTRAL SWITCH(26) NEUTRAL SWITCH ACTUATOR(27) STOP SWITCH ASSY(28) STOP SWITCH LANYARD ASSY(29) PTT SWITCH ASSY(30) GASKET(31) PTT SWITCH ASSY BRACKET(32) BOLT(33) WASHER 6.5-21-1(34) STORAGE DECAL(35) WARNING DECAL(36) SHIFT LEVER BRACKET COVER(37) SHIFT DECAL(38) BOLT(39) BOLT(40) GROMMET(41) GROMMET



Parts List
2014 :: 25 HP :: 4 Stroke Nissan NSF25B :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3ADQ671000 3ADQ67100-0 $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(3) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
(4) HOOK LEVER 3R3Q671410 3R3Q67141-0 $15.25 1
(5) SEAL RING 338671470M 338-67147-0 HOOK LEVER / FOR EP/EPT $1.85 1
(5) SEAL RING 338671470M 338-67147-0 HOOK LEVER SHIFT LEVER / FOR MF & EF/EFT $1.85 2
(6) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.66 1
(7) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(8) COVER HOOK 3R3671420M 3R3-67142-0 $7.05 1
(9) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR MF & EF/EFT / HOOK LEVER $1.59 1 Sold Out View More Details
(9) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EP/EPT HOOK LEVER / & SEE FIG.18-10 SHIFT ARM $1.59 3 Sold Out View More Details
(10) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.31 1
(11) GROMMET 17-2.7 345671170M 345-67117-0 FOR EP MAIN SW / PTT CORD STOP SW $2.31 3 Sold Out View More Details
(11) GROMMET 17-2.7 345671170M 345-67117-0 FOR MF/EPT / PTT CORD STOP SW $2.31 2 Sold Out View More Details
(11) GROMMET 17-2.7 345671170M 345-67117-0 FOR EF/EFG / PTT CORD $2.31 1 Sold Out View More Details
(12) GROMMET 18-2.5 338671630M 338-67163-0 FOR EFT/EPT $2.07 1
(12A) GROMMET 3F3726180M 3F3-72618-0 FOR MF/EF/EP $3.91 1
(13) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(14) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(15) BOLT 9101E35630M 9101E3-5630 $1.15 1 Sold Out View More Details
(16) FUEL PIPE 98AB50300M 98AB-5-0300 STD / 98AB-501000 $11.41 1
(17) FUEL HOSE W/PROTECTOR L=300 3AC021650M 3AC-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $24.82 1
(18) CLIP ø10 338022150M 338-02215-0 FUEL HOSE WATER HOSE / STD $1.41 3
(18) CLIP ø10 338022150M 338-02215-0 FUEL HOSE WATER HOSE / FOR USA MODEL $1.41 2
(19) CLIP ø 9.5 3AB351430M 121-35143-0 FUEL HOSE / FOR USA MODEL $1.30 1
(20) HOSE 98AR50600M 98AR-5-0600 FUEL COOLER-WATER NIPPLE / 98AR-501000 $5.12 1
(21) WATER NIPPLE 3BA011380M 353-01138-0 BOTTOM COWL $2.21 1
(22) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EPT PTT SWITCH & SEE FIG.18-21 $1.15 5
(22) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EFT PTT SWITCH $1.15 2
(23) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(24) MAIN SWITCH 3AA760260M 3AA-76026-0 FOR EF/EFT $13.94 1
(25) NEUTRAL SWITCH 361760800M 361-76080-0 FOR EF/EFT $20.43 1
(26) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF/EFT $4.02 1
(27) STOP SWITCH 398068300M 398-06830-0 FOR MF & EF/EFT $48.44 1
(28) STOP SWITCH LANYARD 353068210M 353-06821-0 FOR MF & EF/EFT $16.48 1 Sold Out View More Details
(29) PTT SWITCH 3AC726150M 3AC-72615-0 FOR EFT/EPT $61.81 1
(30) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 FOR EFT/EPT $3.27 1
(31) BRACKET PTT SWITCH 3F3726171M 3F3-72617-1 FOR EFT/EPT $7.59 1
(32) BOLT 9101E30630M 910114-5630 $1.21 4
(33) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(34) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(35) WARNING DECAL 3AC761900M 3AC761900M $0.00 1 Sold Out View More Details
(36) SHIFT LEVER BRACKET COVER 3R0Q761180 3R0Q76118-0 $37.55 1
(37) SHIFT DECAL 3V9-67578-3 NA FOR MF & EF/EFT $7.07 1
(38) BOLT 9101E35635M 910114-5635 SHIFT LEVER BRACKET COVER $1.96 1 Sold Out View More Details
(39) BOLT 9101E35650M 9101035650M SHIFT LEVER BRACKET COVER $2.59 3
(40) GROMMET CONTROL CABLE 3R0837320M 3R0-83732-0 FOR EP/EPT $4.15 1
(41) GROMMET THROTTLE CABLE 3R0636210M 3R0-63621-0 FOR MF & EF/EFT $2.74 1
