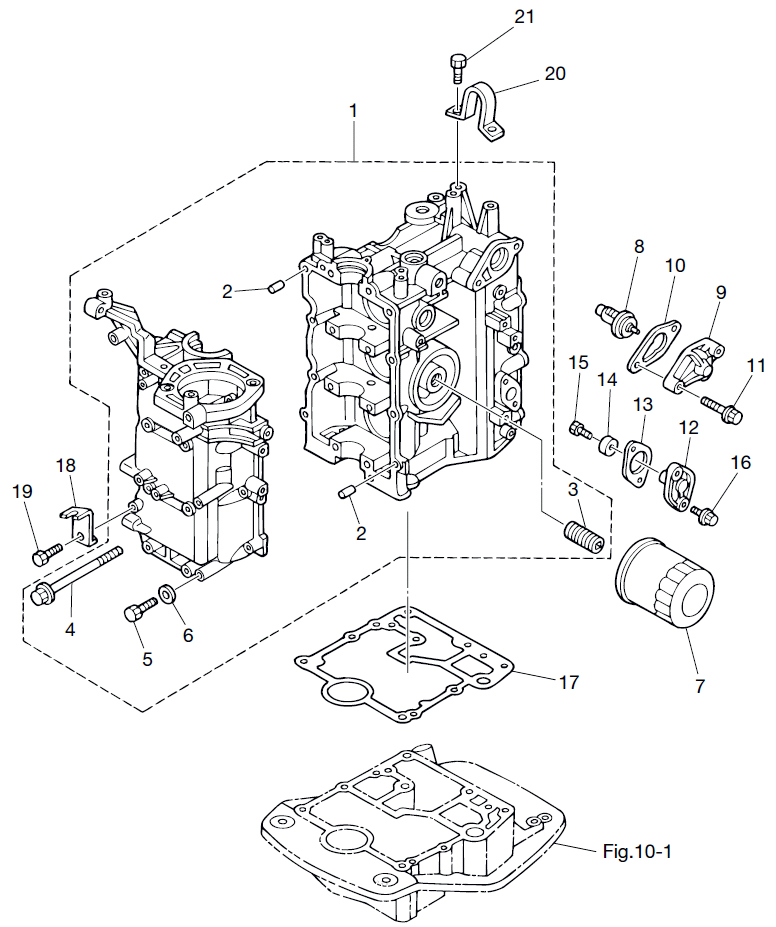

1. CYLINDER & CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYL BLOCK & CRANKCASE ASSY(2) DOWEL PIN 6-12(2) DOWEL PIN 6-12(3) OIL FILTER BOLT(4) BOLT 8-90(5) BOLT(6) WASHER(7) OIL FILTER(8) THERMOSTAT(9) THERMOSTAT CAP(10) THERMOSTAT CAP GASKET(11) BOLT(12) ANODE PLUG(13) GASKET(14) ANODE(15) BOLT(16) BOLT(17) ENGINE BASEMENT GASKET(18) STARTER LOCK CABLE BRACKET(19) BOLT(20) HANGER(21) BOLT



Parts List
2014 :: 25 HP :: 4 Stroke Nissan NSF25B :: CYLINDER & CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYL BLOCK & CRANKCASE ASSY 3ACB011000 3ACB01100-0 $877.20 1 Sold Out View More Details
(2) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(3) BOLT OIL FILTER 3H8076360M 3H8-07636-0 $6.49 1
(4) BOLT 8-90 3R0011131M 3R0-01113-1 $2.86 8
(5) BOLT 9161F90640M 9161F9-0640 $1.59 8
(6) WASHER 9401E30600M 9401E3-0600 $0.00 8 Sold Out View More Details
(7) OIL FILTER 3R0076151M 3R0076151M $11.78 1
(8) THERMOSTAT 3R3010300M 3R3-01030-0 MARK 60 $39.63 1
(9) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(10) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(11) BOLT 9101E35630M 9101E3-5630 $1.15 2 Sold Out View More Details
(12) ANODE CAP 3H8B011431 3H8B01143-0 $17.31 1
(13) ANODE CAP GASKET 3R3011440M 3R3-01144-0 $2.01 1
(14) ANODE 369602181M 369-60218-1 $7.42 1
(15) BOLT 9101030616M 910113-0616 $0.98 1
(16) BOLT 9101E35620M 910113-5620 $1.30 2
(17) GASKET ENGINE BASE 3R0013030M 3R0-01303-0 $31.56 1
(18) STARTER LOCK CABLE BRACKET 3AC690000M 3AC-69000-0 $2.05 1 Sold Out View More Details
(19) BOLT 9101E30612M 9101E3-0612 $0.84 1
(20) HANGER 3C7015132M 3C7-01513-2 $0.00 1 Sold Out View More Details
(21) BOLT 9101F45820M 9101F4-5820 $1.43 2 Sold Out View More Details
