8. MAGNETO & ELECTRIC PARTS

Click Here for Microfiche Usage Tip

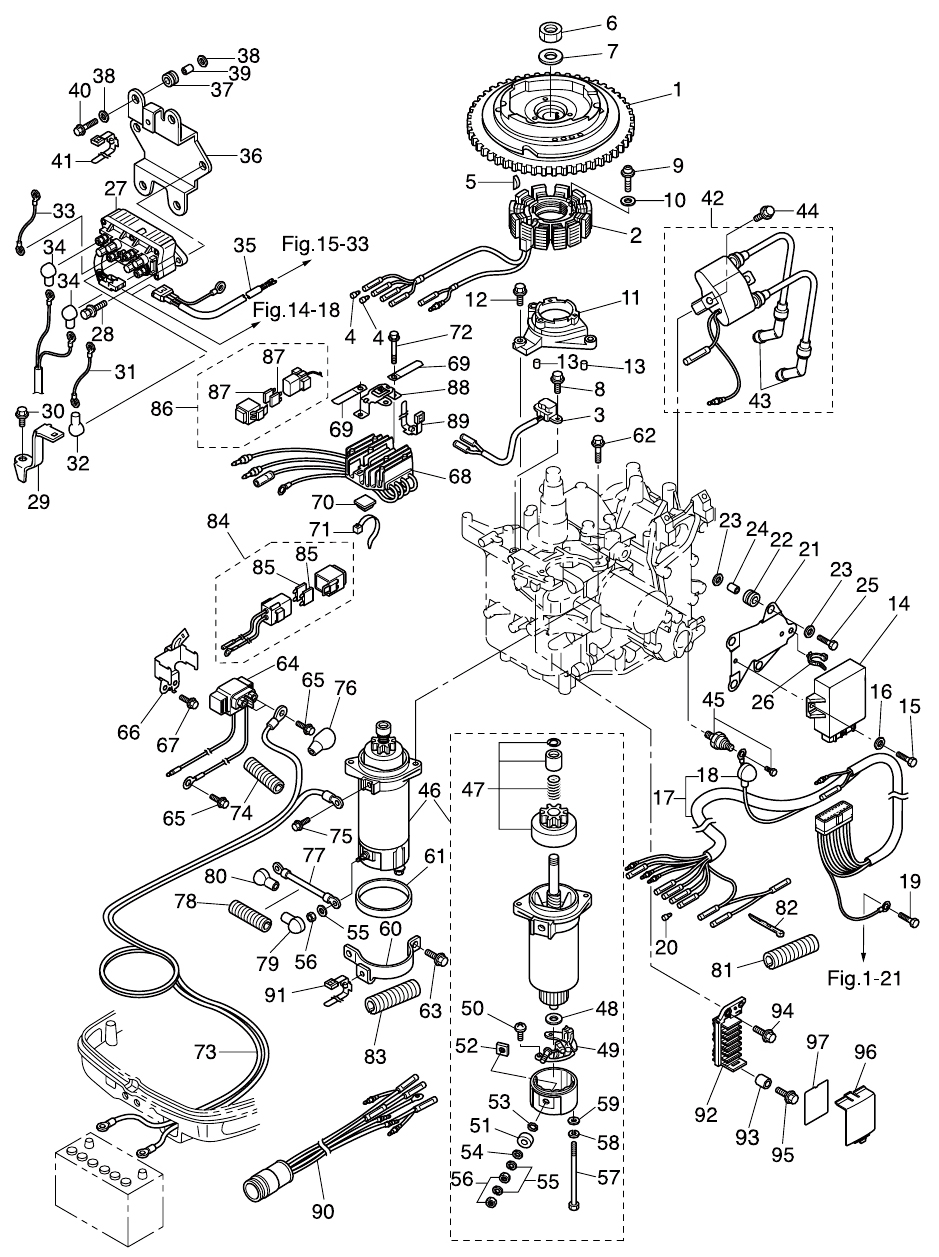

(1) FLYWHEEL W/RING GEAR(2) ALTERNATOR ASSY(3) PULSAR COIL(4) CABLE TERMINAL PLUG(4) CABLE TERMINAL PLUG(5) KEY T=4(6) NUT(7) WASHER 16-27-3.2(8) BOLT(9) SCREW(10) WASHER(11) COIL BRACKET(12) PRE-COATED BOLT 6-25(13) DOWEL PIN 6-12(13) DOWEL PIN 6-12(14) CD UNIT(15) PRE-COATED BOLT 6-16(16) WASHER 6-16-1.5(17) CD UNIT CORD ASSY(18) GROMMET(19) BOLT(20) CABLE TERMINAL PLUG(20) CABLE TERMINAL PLUG(20) CABLE TERMINAL PLUG(20) CABLE TERMINAL PLUG(20) CABLE TERMINAL PLUG(21) CD UNIT BRACKET(22) RUBBER MOUNT 11.8-14-1.5(23) WASHER 6-16-1.5(23) WASHER 6-16-1.5(24) COLLAR 6.2-9-8.7(25) BOLT(26) BAND 135(27) PTT SOLENOID SWITCH (A)(28) BOLT(29) STAY(30) BOLT(31) SOLENOID SWITCH CORD (A) L=300(32) TERMINAL CAP(33) SOLENOID SWITCH CORD (B) L=150(34) TERMINAL CAP(34) TERMINAL CAP(35) EXTENSION CORD (PTT)(36) BRACKET(37) RUBBER MOUNT11.8-14-1.5(38) WASHER 6-16-1.5(38) WASHER 6-16-1.5(39) COLLAR 6.2-9-8.7(40) BOLT(41) BAND 135(42) IGNITION COIL W/R-CAP(43) PLUG CAP W/RESISTANCE(44) BOLT(45) OIL PRESSURE SWITCH(46) STARTER MOTOR ASSY(47) PINION ASSY(48) WASHER(49) BRUSH HOLDER ASSY(50) SCREW(51) BUSHING(52) BUSHING(53) O-RING(54) WASHER(55) SPRING WASHER(55) SPRING WASHER(56) NUT(56) NUT(57) BOLT(58) SPRING WASHER(59) WASHER(60) STARTER MOTOR BAND(61) DAMPER(62) BOLT(63) BOLT(64) STARTER SOLENOID(65) BOLT(65) BOLT(66) STARTER SOLENOID BRACKET(67) BOLT(68) RECTIFIER COMPLETE(69) CLAMP 6.5-47.5P(69) CLAMP 6.5-47.5P(70) BAND MOUNT(71) BAND 203(72) BOLT(73) BATTERY CABLE(74) PROTECTOR o10.7-320(75) BOLT(76) TERMINAL CAP(77) STARTER CABLE L=270(78) PROTECTOR o10.7-180(79) TERMINAL CAP(80) TERMINAL CAP(81) PROTECTOR o24-70(82) BAND 158(83) PROTECTOR(84) FUSE WIRE ASSY L=185(85) FUSE 20A(85) FUSE 20A(86) FUSE WIRE ASSY L=720(87) FUSE 20A(87) FUSE 20A(88) FUSE HOLDER BRACKET(89) BAND 135(90) CORD ASSY(91) BAND 135(92) CABLE TERMINAL HOLDER(93) COLLAR 6-8-6(94) BOLT(95) BOLT(96) COVER(97) WIRING DIAGRAM DECAL(97) WIRING DIAGRAM DECAL



Parts List
2014 :: 20 HP :: 4 Stroke Nissan NSF20C :: MAGNETO & ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP (WITH RING GEAR) 3BJ061910M 3BJ-06191-0 $145.14 1
(2) ALTERNATOR 3BJ060230M 3BJ-06023-0 $116.01 1
(3) PULSER COIL 3BJ060710M 3BJ-06071-0 $32.39 1
(4) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR MF $1.50 2
(5) KEY 3T5101310M 3T5-10131-0 MAGNETO $1.56 1
(6) NUT 16-P1.5 9311211600M 931121-1600 $3.04 1
(7) WASHER 16-27-3.2 3H8001330M 3H8-00133-0 $1.47 1
(8) BOLT 9101035514M 910103-5514 $0.90 2
(9) SCREW 9215036630M 921503-6630 $1.06 3
(10) WASHER 9402030600M 940203-0600 $0.46 3
(11) COIL BRACKET 3V6060080M 3V6-06008-0 $23.97 1
(12) BOLT 6-25 PRE-COATED 3AD068640M 3AD-06864-0 $1.50 3
(13) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(14) CD UNIT 3BJ060601M 3BJ-06060-0 CU7275 $176.70 1
(15) BOLT 6-16 PRECOATED 3V1601080M 3V1-60108-0 $1.43 2
(16) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(17) C.D. UNIT CORD ASSY 3BJ061670M 3BJ-06167-0 $85.42 1
(18) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(19) BOLT 9101E35612M 910103-5612 $1.07 1
(20) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR MF $1.50 5
(20) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EF $1.50 4
(20) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EFT/EPT $1.50 3
(20) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EP $1.50 2
(20) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EP/EPT $1.50 2
(21) C.D. UNIT BRACKET 3BJ060610M 3BJ-06061-0 $0.00 1 Sold Out View More Details
(22) RUBBER MOUNT 3AC069200M 3AC-06920-0 $1.04 4
(23) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 8 Sold Out View More Details
(24) COLLAR 6.2-9-8.7 3BJ063030M 3BJ-06303-0 $2.21 4
(25) BOLT 9101E30620M 9101E3-0620 $1.04 4
(26) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 $2.22 1
(27) POWER TILT SOLENOID SWITCH A 3Z0725800M 3Z0-72580-0 FOR EFT/EPT $126.92 1
(28) BOLT 9101E35620M 910113-5620 FOR EFT/EPT $1.30 2
(29) STAY 3BA761740M 3BA-76174-0 FOR EFT/EPT $4.93 1 Sold Out View More Details
(30) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EFT/EPT $1.15 1
(31) SOLENOID SWITCH CORD A 3BA725820M 3BA-72582-0 FOR EFT/EPT $6.07 1
(32) TERMINAL CAP 3Y1761450M 3Y1-76145-0 FOR EFT/EPT $2.25 1
(33) CORD B SOLENOID SWITCH 3C8725831M 3C8-72583-1 FOR EFT/EPT $4.83 1
(34) TERMINAL CAP 3Y1761450M 3Y1-76145-0 FOR EFT/EPT $2.25 2
(35) EXTENSION CORD (PTT) 3BJ725690M 3BJ-72569-0 FOR EPT $80.78 1
(36) PTT SOLENOID BRACKET 3BJ069010M 3BJ-06901-0 FOR EFT/EPT $36.05 1
(37) RUBBER MOUNT 3AC069200M 3AC-06920-0 FOR EFT/EPT $1.04 4
(38) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EFT/EPT $1.59 8 Sold Out View More Details
(39) COLLAR 6.2-9-8.7 3BJ063030M 3BJ-06303-0 FOR EFT/EPT $2.21 4
(40) BOLT 9101E30620M 9101E3-0620 FOR EFT/EPT $1.04 4
(41) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 FOR EFT/EPT $2.22 1
(42) IGNITION COIL 3BJ060400M 3BJ-06040-0 $58.91 1
(43) PLUG CAP (WITH RESISTANCE) 3AC069990M 3AC-06999-0 $14.73 2
(44) BOLT 9101E35625M 910113-5625 $1.47 2
(45) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(46) STARTER MOTOR 3C8760101M 3C8-76010-1 FOR EF/EP & EPT/EFT $491.52 1 Sold Out View More Details
(47) PINION ASSY 3C8760150M 3C8-76015-0 $167.77 1
(48) WASHER 3C8750150M 3C8-75015-0 $5.69 1
(49) BRUSH HOLDER ASSY 3C8750140M 3C8-75014-0 $59.83 1
(50) SCREW 9215216408M 921521-6408 $0.63 2
(51) BUSHING 1 3C8750160M 3C8-75016-0 $3.39 1
(52) BUSHING 2 3C8750170M 3C8-75017-0 $3.39 1
(53) O-RING 3C8750180M 3C8-75018-0 $1.21 1
(54) WASHER 9401030600M 940103-0600 $0.70 1
(55) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(56) NUT 9302030600M 930203-0600 $0.00 2 Sold Out View More Details
(57) BOLT 3C8750190M 3C8-75019-0 $8.97 2
(58) SPRING WASHER 9413210500M 941321-0500 $0.00 2 Sold Out View More Details
(59) WASHER 9402210500M 940221-0500 $0.00 2 Sold Out View More Details
(60) STARTER MOTOR BAND 3BJ760090M 3BJ-76009-0 FOR EF/EP & EPT/EFT $8.72 1 Sold Out View More Details
(61) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 $3.39 1 Sold Out View More Details
(62) BOLT 9101E35825M 9101E3-5825 $1.89 2
(63) BOLT 9101E35818M 9101E3-5818 $1.64 2
(64) STARTER SOLENOID 3BJ760400M 3BJ-76040-0 FOR EF/EP & EPT/EFT $63.32 1
(65) BOLT 9101035610M 910103-5610 $1.02 2
(66) STARTER SOLENOID BRACKET 3BJ760430M 3BJ-76043-0 $14.73 1
(67) BOLT 9101035612M 910103-5612 $1.07 1
(68) RECTIFIER COMPLETE 3BJ760601M 3BJ-76060-0 FOR EF/EP & EPT/EFT $75.70 1
(69) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(70) BAND MOUNT 3BJ761640M 3BJ-76164-0 $0.00 1 Sold Out View More Details
(71) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 1 Sold Out View More Details
(72) BOLT 9101035625M 910103-5625 $1.47 2
(73) BATTERY CABLE 3BH761200M 3BH-76120-0 FOR EF/EP & EPT/EFT $65.41 1
(74) PROTECTOR ø 10.7-320 3BJ061330M 3BJ-06133-0 BATTERY CABLE $0.00 1 Sold Out View More Details
(75) BOLT 9101035612M 910103-5612 $1.07 1
(76) TERMINAL CAP 3BJ761450M 3BJ-76145-0 RED $2.71 1
(77) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 FOR EF/EP & EPT/EFT $24.89 1
(78) PROTECTOR ø 10.7-180 3BA061330M 3BA-06133-0 STARTER CABLE $2.53 1
(79) TERMINAL CAP 3Y0761450M 3Y0-76145-0 RED $2.25 1
(80) TERMINAL CAP 3AA761450M 3AA-76145-0 RED $2.25 1
(81) PROTECTOR 3V1061330M 3V1-06133-0 FOR MF $3.62 1
(82) LEAD WIRE BAND 150 369843980M 369-84398-0 FOR MF $1.67 1
(83) PROTECTOR ø 10.7-75 3BH061330M 3BH-06133-0 $0.00 1 Sold Out View More Details
(84) FUSE CABLE 3V1760660M 3V1-76066-0 FOR EF/EP & EPT/EFT $32.81 1
(85) FUSE (20A) 3T5762470M 3T5-76247-0 $2.99 2
(86) FUSE CABLE 3BJ760660M 3BJ-76066-0 FOR EF/EP & EPT/EFT $44.14 1
(87) FUSE (20A) 3T5762470M 3T5-76247-0 $2.99 2
(88) FUSE HOLDER BRACKET 3BJ760640M 3BJ-76064-0 $8.00 1
(89) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 $2.22 1
(90) CORD ASSY 3BJ761100M 3BJ-76110-0 FOR EP/EPT $72.16 1
(91) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 $2.22 1
(92) CABLE TERMINAL HOLDER 3BJ062811M 3BJ-06281-0 FOR EF/EP & EPT/EFT / COLLAR $15.16 1
(93) COLLAR 6-8-6 174350120M 174-35012-0 FOR EF/EP & EPT/EFT $2.86 1
(94) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EF/EP & EPT/EFT / UPPER $1.15 1
(95) BOLT 9101E35612M 910103-5612 FOR EF/EP & EPT/EFT / LOWER $1.07 1
(96) COVER 3BJ069021M 3BJ069021M FOR EF/EP & EPT/EFT $7.37 1
(97) WIRING DIAGRAM DECAL 3BJ720281M 3BJ-72028-1 FOR EF/EFT $4.03 1
(97) WIRING DIAGRAM DECAL 3BK-72028-2 NA FOR EP/EPT $0.00 1 Sold Out View More Details
