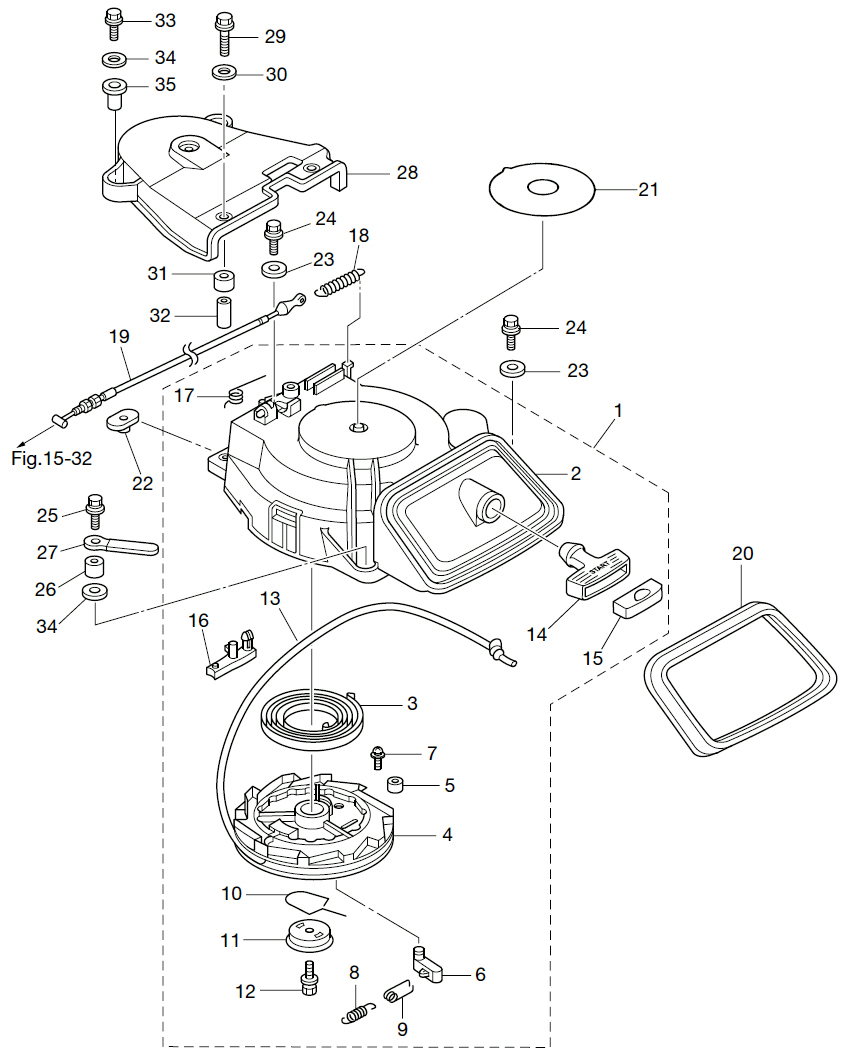

7. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER ASSY(2) STARTER CASE(3) STARTER SPRING(4) REEL(5) BUSHING(6) RATCHET(7) TAPPING SCREW(8) RETURN SPRING(9) RETURN SPRING(10) FRICTION SPRING(11) FRICTION PLATE(12) BOLT(13) STARTER ROPE o5-1800(14) STARTER HANDLE(15) ROPE ANCHOR(16) STARTER LOCK(17) STARTER LOCK SPRING(18) STARTER LOCK CAM SPRING(19) STARTER LOCK WIRE(20) STARTER SEAL(21) CAUTION DECAL (B)(22) NUT(23) WASHER 6-16-1.5(23) WASHER 6-16-1.5(24) PRE-COATED BOLT 6-20(24) PRE-COATED BOLT 6-20(25) PRE-COATED BOLT 6-30(26) COLLAR 6.5-10.5-10(27) CLAMP 6.5-47.5P(28) BELT COVER(29) BOLT(30) WASHER 6-16-1.5(31) RUBBER MOUNT(32) COLLAR 6.2-9-21(33) BOLT(34) WASHER 6-16-1.5(34) WASHER 6-16-1.5(35) COLLAR 6.1-9-7.4



Parts List
2014 :: 20 HP :: 4 Stroke Nissan NSF20C :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3BJ050900M 3BJ-05090-0 $147.23 1
(2) STARTER CASE 3BJ051050M 3BJ-05105-0 $85.42 1
(3) STARTER SPRING 3H8050040M 3H8-05004-0 $18.50 1
(4) REEL 3BJ051040M 3BJ-05104-0 $26.50 1
(5) BUSHING 3BJ051350M 3BJ-05135-0 $5.58 1
(6) RATCHET 3BJ050030M 3BJ-05003-0 $4.42 1
(7) TAPPING SCREW 3BJ059130M 3BJ-05913-0 $2.22 1
(8) RETURN SPRING 3R3050120M 3R3-05012-0 $4.31 1
(9) RATCHET GUIDE 3H8051231M 3H8-05123-1 $4.08 1 Sold Out View More Details
(10) FRICTION SPRING 3R3050070M 3R3-05007-0 $6.72 1
(11) FRICTION PLATE 3R3050060M 3R3-05006-0 $4.81 1
(12) BOLT STARTER SHAFT 3R3051380M 3R3-05138-0 $1.38 1
(13) STARTER ROPE 3R3050130M 3R3-05013-0 $9.25 1
(14) STARTER HANDLE 3BJ050190M 3BJ-05019-0 $8.79 1
(15) ROPE ANCHOR 3AB051310M 3AB-05131-0 $6.77 1
(16) STARTER LOCK 3R3052520M 3R3-05252-0 $4.03 1
(17) SPRING 3R3052160M 3R3-05216-0 $2.72 1
(18) STARTER LOCK CAM SPRING 3AC052580M 3AC-05258-0 $5.44 1
(19) STARTER LOCK CABLE 3BJ052070M 3BJ-05207-0 $38.18 1
(20) STARTER SEAL 3BJ675031M 3R3-67503-0 $14.08 1
(21) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(22) NUT 3F3760422M 3F3-76042-1 $1.66 2 Sold Out View More Details
(23) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 3 Sold Out View More Details
(24) PRE-COATED BOLT 6-20 3AL601080M 3AL-60108-0 $1.68 2
(25) PRE-COATED BOLT 6-30 3AC068640M 3AC-06864-0 $1.56 1
(26) COLLAR 6.5-10.5-10 3H6636191M 3H6-63619-1 $4.19 1
(27) CLAMP 6.5-47.5P 309069720M 309-06972-0 STARTER LOCK CABLE $2.07 1
(28) BELT COVER 3R3063080M 3R3-06308-0 $8.66 1
(29) BOLT 9101E30630M 910114-5630 $1.21 2
(30) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(31) RUBBER MOUNT 9-16-9 3R3063020M 3R3-06302-0 $2.71 2 Sold Out View More Details
(32) COLLAR 6.2-9-21 3R3063031M 3R3-06303-1 $1.47 2
(33) BOLT 9101E30620M 9101E3-0620 $1.04 2
(34) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(35) COLLAR 6.1-14-8.9 3BJ062830M 3BJ-06283-0 $4.42 2
