4. PULLEY & TIMING BELT

Click Here for Microfiche Usage Tip

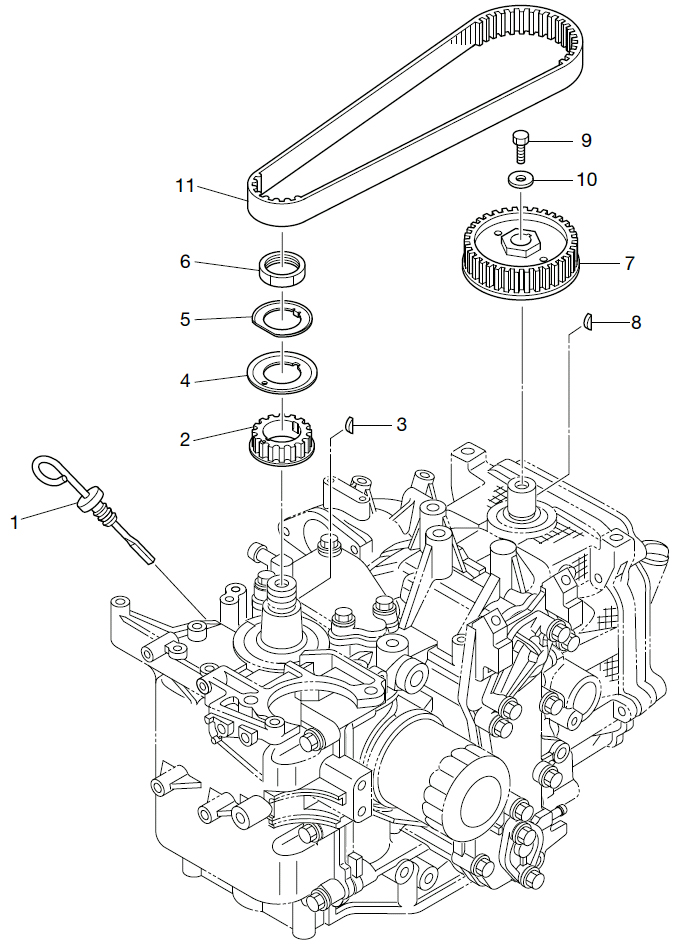

(1) OIL LEVEL GAUGE(2) DRIVE PULLEY(3) KEY(4) BELT GUIDE(5) LOCK WASHER(6) NUT(7) DRIVEN PULLEY(8) KEY(9) PRE-COATED BOLT 6-20(10) WASHER 6.5-19-3.2(11) TIMING BELT



Parts List
2014 :: 20 HP :: 4 Stroke Nissan NSF20C :: PULLEY & TIMING BELT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL LEVEL GAUGE 3AC074210M 3AC-07421-0 $17.65 1
(2) DRIVE PULLEY 3BJ100600M 3BJ-10060-0 TIMING PULLEY $44.14 1
(3) KEY 309001310M 309-00131-0 CRANKSHAFT $2.31 1
(4) BELT GUIDE 3BJ100630M 3BJ-10063-0 $4.15 1
(5) LOCK WASHER 3BJ100690M 3BJ-10069-0 $2.71 1
(6) NUT 3T5100682M 3T5-10068-2 $5.15 1
(7) DRIVEN PULLEY 3H8100622M 3H8-10062-2 CAMSHAFT PULLEY $48.39 1
(8) KEY 309001310M 309-00131-0 CRANKSHAFT $2.31 1
(9) BOLT 6-20 PRE-COATED 3AA601080M 3AA-60108-0 $1.45 1 Sold Out View More Details
(10) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(11) TIMING BELT 3H8100610M 3H8-10061-0 $13.23 1
