17. SHIFT

Click Here for Microfiche Usage Tip

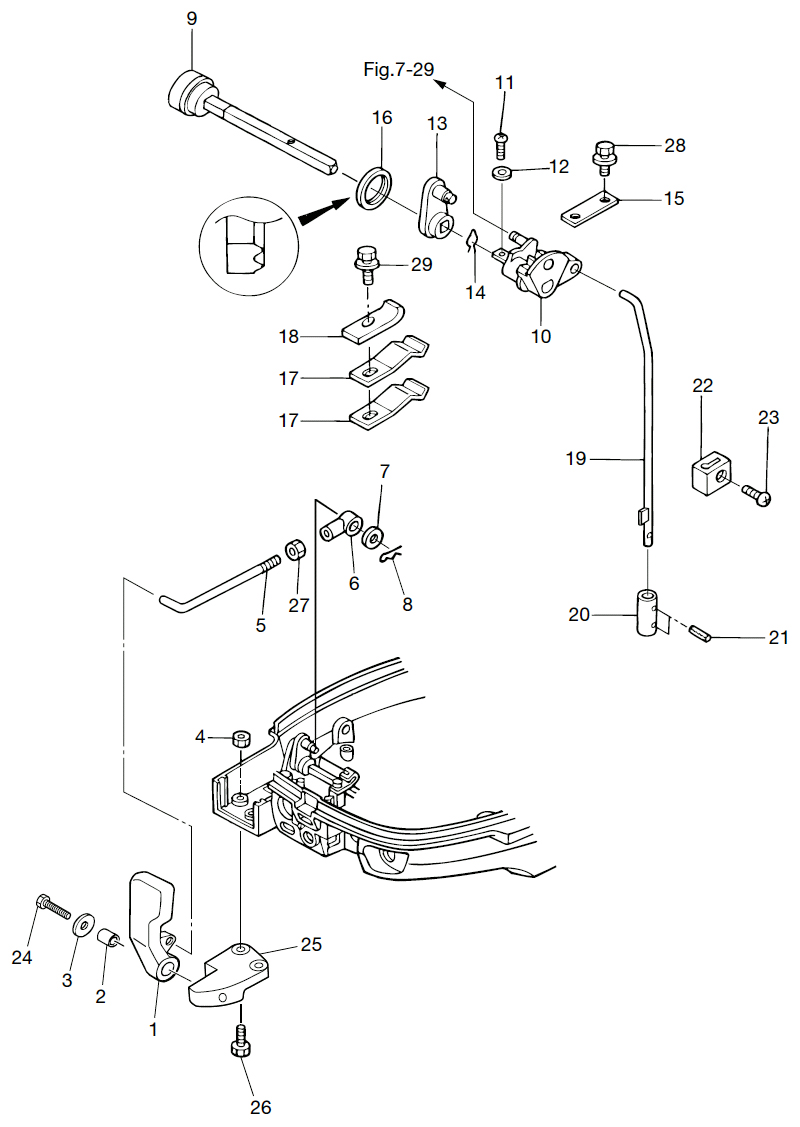

(1) SHIFT LEVER(2) COLLAR 6.5-10.5-10(3) WASHER 6.5-21-1(4) NUT(5) SHIFT LEVER ROD(6) CABLE JOINT(7) WASHER 8.5-18-1.6(8) SNAP PIN D=8(9) SHIFT LEVER SHAFT(10) SHIFT ROD LEVER(11) SCREW(12) WASHER(13) SHIFT LEVER (REMOTE CONTROL)(14) SNAP RETAINER D=8(15) HOLDER(16) SEAL RING 23-29-3.7(17) SHIFT LEVER STOPPER T=0.5(17) SHIFT LEVER STOPPER T=0.5(18) SHIFT LEVER STOPPER T=0.8(19) SHIFT ROD(20) SHIFT ROD JOINT(21) SPRING PIN 3-10(22) REVERSE LOCK LINK JOINT(23) SCREW(24) BOLT(25) SHIFT LEVER BRACKET(26) BOLT(27) NUT(28) BOLT(29) BOLT



Parts List
2014 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT LEVER 3Y3661100M 3Y3-66110-0 $21.35 1
(2) COLLAR 6.5-10.5-10 3H6636191M 3H6-63619-1 $4.19 1
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(4) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(5) SHIFT LEVER ROD 3Y3661340M 3Y3-66134-0 $4.38 1
(6) CABLE JOINT 3R0837150M 3R0-83715-0 $2.40 1
(7) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 1
(8) SNAP PIN D=8 9516030800M 951603-0800 $0.70 1
(9) SHIFT LEVER SHAFT 3AA661351M 3AA-66135-1 $4.06 1
(10) SHIFT ROD LEVER 3V1662250M 3V1-66225-0 $7.28 1
(11) SCREW 9215030414M 921503-0414 $0.64 1
(12) WASHER 9401030400M 940103-0400 $0.58 1
(13) SHIFT LEVER (EP) 3V1661290M 3V1-66129-0 $8.77 1
(14) SNAP RETAINER D=8 9517030800M 951703-0800 $0.83 1
(15) HOLDER 3V1661450M 3V1-66145-0 $2.30 1
(16) SEAL RING 23-29-3.7 3V1661870M 3V1-66187-0 $1.55 1
(17) SHIFT LEVER STOPPER 3Y1661130M 3Y1-66113-0 $2.26 2
(18) SHIFT LEVER STOPPER T=0.8 3Y1661170M 3Y1-66117-0 $3.05 1
(19) SHIFT ROD 3V1662111M 3V1-66211-1 $12.17 1
(20) SHIFT ROD JOINT 3V1662410M 3V1-66241-0 $4.03 1
(21) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 2
(22) REVERSE LOCK LINK JOINT 3V1663021M 3V1-66302-1 $2.48 1
(23) SCREW 9215030612M 921513-0612 $0.93 1
(24) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(25) SHIFT LEVER BRACKET 3Y3Q674800 3Y3Q67480-0 $30.92 1
(26) BOLT 9101E35625M 910113-5625 $1.47 2
(27) NUT 9301030500M 930103-0500 $0.86 1
(28) BOLT 9101E35612M 910103-5612 $1.07 2
(29) BOLT 9101E35612M 910103-5612 $1.07 1
