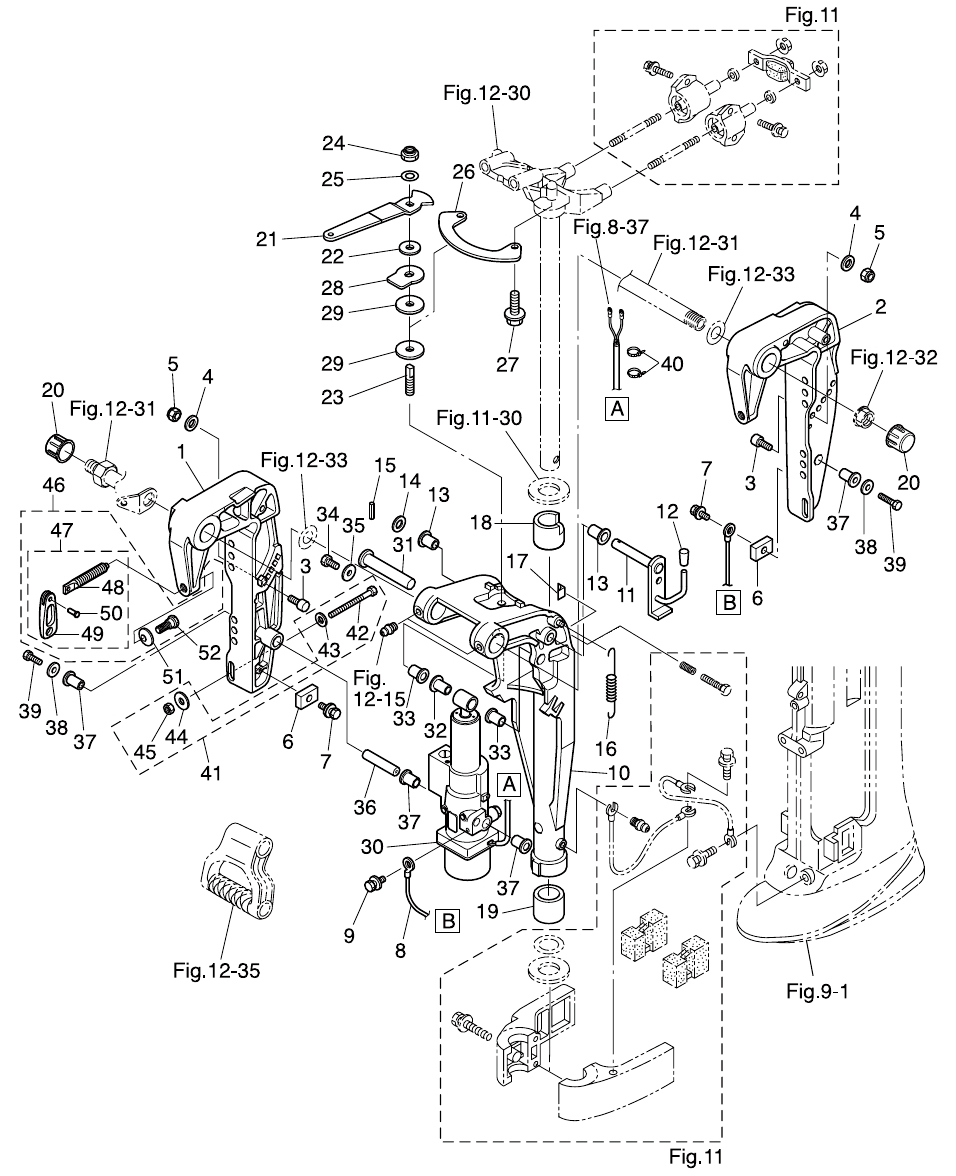

13. BRACKET (EFT & EPT MODEL)

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (PTT-R)(2) CLAMP BRACKET (PTT-L)(3) TRIM LOCK PIN(3) TRIM LOCK PIN(4) WASHER 8.1-16-1.5(4) WASHER 8.1-16-1.5(5) NYLON NUT 8-P1.25(5) NYLON NUT 8-P1.25(6) ANODE(6) ANODE(7) BOLT(7) BOLT(8) GROUND L=130(9) BOLT(10) SWIVEL BRACKET ASSY(11) TILT STOPPER(12) TILT STOPPER GRIP(13) COLLAR 10.2-12-12(13) COLLAR 10.2-12-12(14) WASHER(15) SPRING PIN 3.5-16(16) TILT STOPPER SPRING(17) FRICTION PIECE(18) BUSHING 24-30-30(19) BUSHING 24-30-30(20) CAP NUT(20) CAP NUT(21) FRICTION LEVER(22) WASHER 8.1-20-0.8(23) BOLT(24) NYLON NUT 8-P1.25(25) WASHER(26) PLATE(27) BOLT(28) WASHER(29) DISC(29) DISC(30) PT ASSY(31) CYLINDER PIN (UPPER)(32) BUSHING 13-16-31(33) BUSHING 13-17-19.5(33) BUSHING 13-17-19.5(34) BOLT(35) WASHER 6.5-23-1.5(36) CYLINDER PIN (LOWER)(37) BUSHING 13-16-31(37) BUSHING 13-16-31(37) BUSHING 13-16-31(37) BUSHING 13-16-31(38) WASHER 8.5-28-1(38) WASHER 8.5-28-1(39) BOLT(39) BOLT(40) BAND 203(41) RIGGING BOLT SET(42) BOLT(43) WASHER(44) WASHER(45) NYLON NUT 8-P1.25(46) CLAMP SCREW KIT(47) CLAMP SCREW ASSY(48) CLAMP SCREW(49) CLAMP SCREW HANDLE(50) RIVET 3-22(51) CLAMP SCREW PAD(52) SHOULDER BOLT



Parts List
2014 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: BRACKET (EFT & EPT MODEL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (PTT-RIGHT) 3Z0Q772112 3Z0Q77211-2 STARBOARD SIDE $168.25 1
(2) CLAMP BRACKET (PTT-LEFT) 3Z0Q772120 3Z0Q77212-0 PORT SIDE $168.25 1
(3) TRIM LOCK PIN 3Z0771150M 3Z0-77115-0 $11.09 2
(4) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.29 2
(5) NYLON NUT (2T) M8 P1.25 3V5624420M 3V5-62442-0 $5.25 2
(6) ANODE 3H6602180M 3H6-60218-0 $5.53 2
(7) BOLT 9101035616M 910103-5616 $1.15 2
(8) GROUND CABLE 398623961M 398-62396-1 PT ASSY-CLAMP BRACKET $5.75 1 Sold Out View More Details
(9) BOLT 9101035612M 910103-5612 $1.07 1
(10) SWIVEL BRACKET ASSY 3V1Q772080 3V1Q77208-0 $175.29 1
(11) TILT STOPPER 3Z0624762M 3Z0-62476-2 $57.41 1
(12) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(13) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(14) WASHER 9401E31000M 940113-1000 $1.50 1
(15) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(16) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(17) FRICTION PIECE 3Z0630350M 3Z0-63035-0 $9.62 1
(18) BUSHING 24-30-30 3Z0624170M 3Z0-62417-0 $4.17 1
(19) BUSHING 24-30-30 350624170M 350-62417-0 $6.65 1
(20) CAP BRACKET BOLT 346621270M 346-62127-0 FOR EFT $2.31 2
(21) CO- PILOT HANDLE 3AA624410M 3AA-62441-0 FOR EFT $12.91 1
(22) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR EFT $1.48 1
(23) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR EFT $6.74 1
(24) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(25) WASHER 9401E30800M 9401E3-0800 $0.65 1
(26) CO-PILOT PLATE 3AA624470M 3AA-62447-0 FOR EFT $5.67 1
(27) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EFT $1.15 2
(28) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR EFT $5.59 1
(29) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR EFT $7.91 2
(30) PT ASSY 3Z0Q771511 3Z0Q77151-1 SEE FIG.14 $946.98 1
(31) CYLINDER PIN (UPPER) 3R0770711M 3R0-77071-1 $8.58 1
(32) BUSHING 13-16-31 3Z0770760M 3Z0-77076-0 $1.45 1
(33) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 $1.57 2
(34) BOLT 9101E30612M 9101E3-0612 $0.84 1
(35) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 1
(36) CYLINDER PIN (LOWER) 3Z0771011M 3Z0-77101-1 $36.05 1
(37) BUSHING 13-16-31 3Z0770760M 3Z0-77076-0 $1.45 4
(38) WASHER 8.5-28-1 307621161M 307-62116-1 $1.93 2
(39) BOLT 9101E30820M 9101E3-0820 $1.87 2
(40) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 2 Sold Out View More Details
(41) RIGGING BOLT SET 3V2721200M 3V2-72120-0 $34.19 1
(42) BOLT 9101E30885M 9101E3-0885 $3.50 4
(43) WASHER 9401E30800M 9401E3-0800 $0.65 4
(44) WASHER 8.5-34-3 3Z0613340M 3Z0-61334-0 $3.91 4
(45) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 4
(46) CLAMP SCREW KIT 3E3Q621050 3E3Q62105-0 $56.36 2
(47) CLAMP SCREW ASSY 3E3Q621080 3E3Q62108-0 $80.68 1
(48) CLAMP SCREW 3E3621060M 3E3-62106-0 $54.83 1
(49) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 $7.57 1
(50) RIVET 3-22 3C8621042M 3C8-62104-2 $0.92 1
(51) CLAMP SCREW PAD 332621011M 332-62101-1 $4.31 1
(52) SHOULDER BOLT 3C8621070M 3C8-62107-0 $8.58 1 Sold Out View More Details
