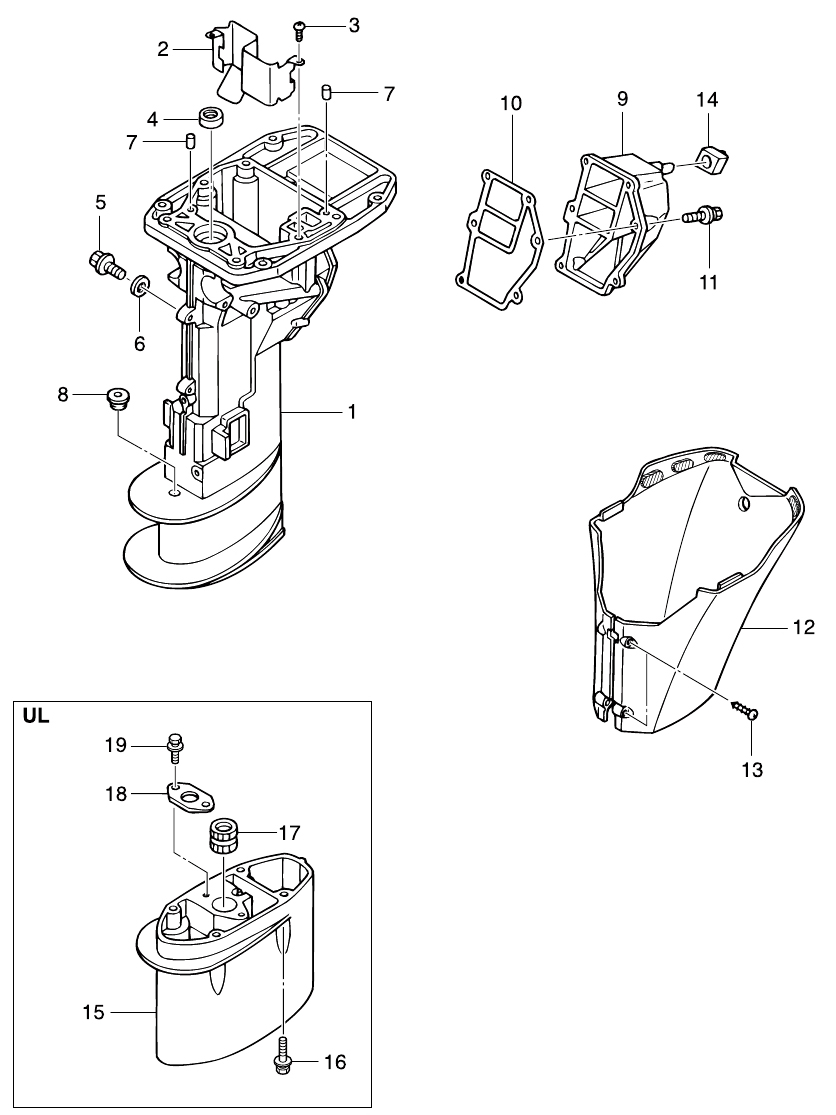

9. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) DRIVE SHAFT HOUSING ASSY (S)(1) DRIVE SHAFT HOUSING ASSY (L)(2) GUIDE PLATE(3) SCREW(4) OIL SEAL 12-28-5(5) DRAIN BOLT 14-20(6) WASHER 14.5-24-1(7) DOWEL PIN 6-12(7) DOWEL PIN 6-12(8) GROMMET(9) IDLE EXHAUST PORT COVER(10) IDLE EXHAUST PORT GASKET(11) BOLT(12) APRON ASSY(13) TAPPING SCREW 5-30(14) GROMMET(15) EXTENSION HOUSING(16) BOLT 6-35(17) DRIVE SHAFT BUSHING(18) STOPPER(19) BOLT



Parts List
2014 :: 9.8 HP :: 4 Stroke Tohatsu MFS9.8A3 :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING ASSY (S) 3V1Q610202 3V1Q610202 FOR TRANSOM S $198.78 1
(1) DRIVE SHAFT HOUSING ASSY (L) 3V1Q610301 3V1Q610301 FOR TRANSOM L & UL $215.97 1
(2) GUIDE PLATE 3V1074401M 3V1-07440-1 $9.64 1
(3) SCREW 9215036510M 921503-6510 $0.49 2
(4) OIL SEAL 12-28-5 3B2012150M 3B2-01215-0 $5.69 1
(5) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.32 1
(6) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.83 1
(7) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(8) GROMMET 369660431M 369-66043-1 $1.57 1
(9) IDLE EXHAUST PORT COVER 3V1612080M 3V1-61208-0 $0.00 1 Sold Out View More Details
(10) IDLE EXHAUST PORT COVER GASKET 3V1612200M 3V1-61220-0 $9.80 1
(11) BOLT 9101E35620M 910113-5620 $1.30 6
(12) APRON 3V1Q612250 3V1Q61225-0 $147.15 1
(13) TAPPING SCREW 5-30 3F3024230M 3F3-02423-0 $1.41 2
(14) IDLE EXHAUST PORT GROMMET 3V1612120M 3V1-61212-0 $2.95 1
(15) EXTENSION HOUSING UL 3B2Q611102 3B2Q61110-2 FOR TRANSOM UL $199.32 1
(16) BOLT 6-35 3V2600010M 3V1-60001-0 FOR TRANSOM UL $3.43 4
(17) DRIVE SHAFT BUSHING 3B2600031M 3B2-60003-1 FOR TRANSOM UL $62.11 1
(18) BUSHING STOPPER 3V1643320M 3V1-64332-0 FOR TRANSOM UL $5.18 1 Sold Out View More Details
(19) BOLT 9101E35612M 910103-5612 FOR TRANSOM UL $1.07 2
