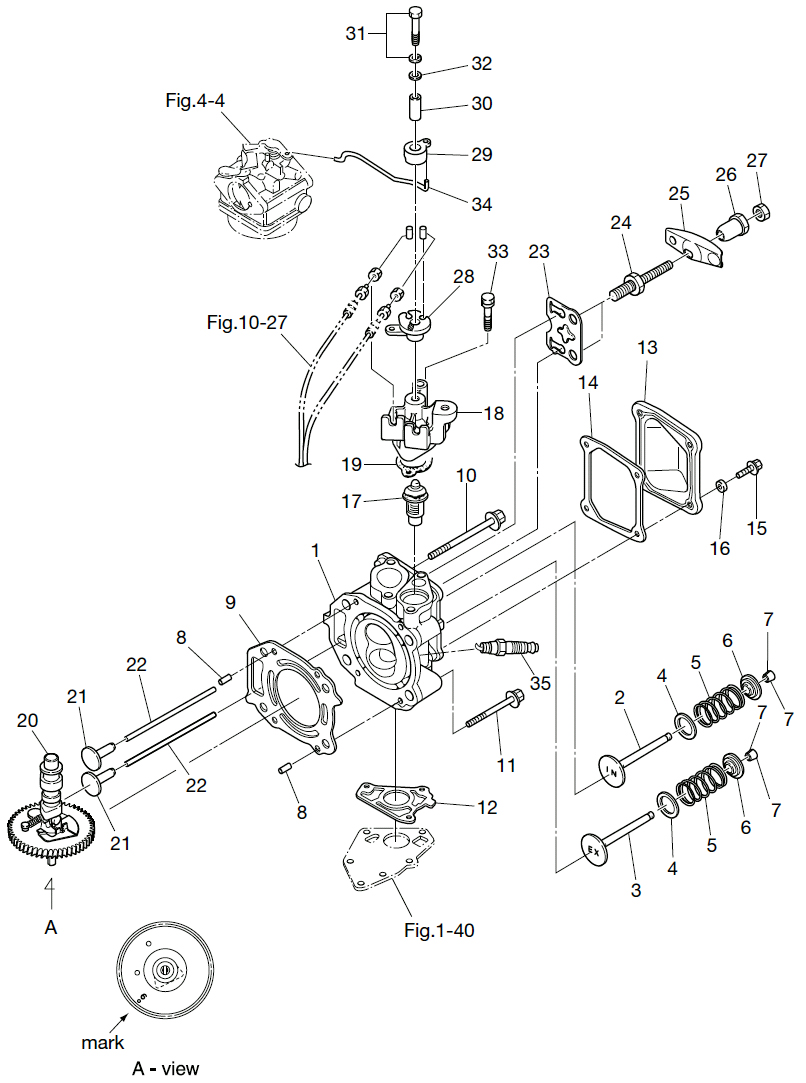

3. CYLINDER HEAD & VALVE & CAMSHAFT

Click Here for Microfiche Usage Tip
(1) CYLINDER HEAD ASSY(2) INTAKE VALVE(3) EXHAUST VALVE(4) VALVE SPRING SEAT(4) VALVE SPRING SEAT(5) VALVE SPRING L=35(5) VALVE SPRING L=35(6) RETAINER(6) RETAINER(7) COTTER(7) COTTER(7) COTTER(7) COTTER(8) DOWEL PIN 6-12(8) DOWEL PIN 6-12(9) CYLINDER HEAD GASKET(10) CYLINDER HEAD BOLT 8-90(11) CYLINDER HEAD BOLT 8-60(12) EXHAUST COVER GASKET(13) CYLINDER HEAD COVER(14) CYLINDER HEAD COVER GASKET(15) BOLT(16) WASHER 6-16-1.5(17) THERMOSTAT(18) THERMOSTAT CAP(19) THERMOSTAT CAP GASKET(20) CAMSHAFT ASSY(21) LIFTER(21) LIFTER(22) PUSH ROD(22) PUSH ROD(23) PLATE(24) PIVOT BOLT(25) ROCKER ARM(26) PIVOT(27) ADJUSTING NUT(28) THROTTLE DRUM(29) THROTTLE OPENER(30) COLLAR(31) BOLT(32) WASHER 6-16-1.5(33) BOLT(34) THROTTLE ROD(35) SPARK PLUG (DCPR6E)



Parts List
2014 :: 6 HP :: 4 Stroke Nissan NSF6C :: CYLINDER HEAD & VALVE & CAMSHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER HEAD 3R4B010011 3R4B01001-1 $237.88 1
(2) INTAKE VALVE 3GR079010M 3GR-07901-0 $22.69 1
(3) EXHAUST VALVE 3GR079020M 3GR-07902-0 $19.01 1
(4) VALVE SPRING SEAT 3H6072050M 3H6-07205-0 $1.30 2
(5) VALVE SPRING 3AE072030M 3AE-07203-0 $3.43 2
(6) RETAINER 3H6072210M 3H6-07221-0 $4.40 2
(7) COTTER 3H6072230M 3H6-07223-0 $2.48 4
(8) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(9) CYLINDER HEAD GASKET 3H6010051M 3H6-01005-1 $9.29 1
(10) CYLINDER HEAD BOLT 3H6010120M 3H6-01012-0 $2.01 2
(11) CYLINDER HEAD BOLT 3H6010130M 3H6-01013-0 $1.53 2
(12) EXHAUST COVER GASKET (OUTER) 3H6023060M 3H6-02306-0 $3.20 1
(13) CYLINDER HEAD COVER 3H6B010210 3H6B01021-0 $25.08 1
(14) CYLINDER HEAD COVER GASKET 3H6010240M 3H6-01024-0 $2.77 1
(15) BOLT 9101210616M 910121-0616 $0.98 4
(16) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(17) THERMOSTAT 3H6010300M 3H6-01030-0 MARK 52B PRV $32.67 1
(18) THERMOSTAT CAP 3GRB010310 3GRB01031-0 $31.70 1
(19) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(20) CAMSHAFT ASSY 3R4070101M 3R4-07010-0 MARK 6 $125.82 1
(21) LIFTER 3H6072310M 3H6-07231-0 $4.98 2
(22) PUSH ROD 3H6072320M 3H6-07232-0 $3.63 2
(23) PUSH ROD PLATE 3H6072330M 3H6-07233-0 $2.58 1
(24) PIVOT BOLT 3H6072340M 3H6-07234-0 $1.71 2
(25) ROCKER ARM 3GR079350M 3GR-07935-0 $6.51 2
(26) ROCKER ARM PIVOT 3H6072360M 3H6-07236-0 $3.82 2
(27) ADJUSTING NUT 3H6079370M 3H6-07237-0 $1.11 2
(28) THROTTLE DRUM 3GR636110M 3GR-63611-0 $3.17 1
(29) THROTTLE OPENER 3GR636120M 3GR-63612-0 $3.04 1
(30) COLLAR 6.5-10.5-22.6 3H6636180M 3H6-63618-0 $4.28 1
(31) BOLT 9101036635M 910103-6635 $1.09 1 Sold Out View More Details
(32) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 1
(33) BOLT 9101036645M 910103-6645 $1.18 2
(34) THROTTLE ROD 3H6636170M 3H6-63617-0 $3.85 1
(35) SPARK PLUG 970111103M 9701-1-1103 NGK $6.50 1
