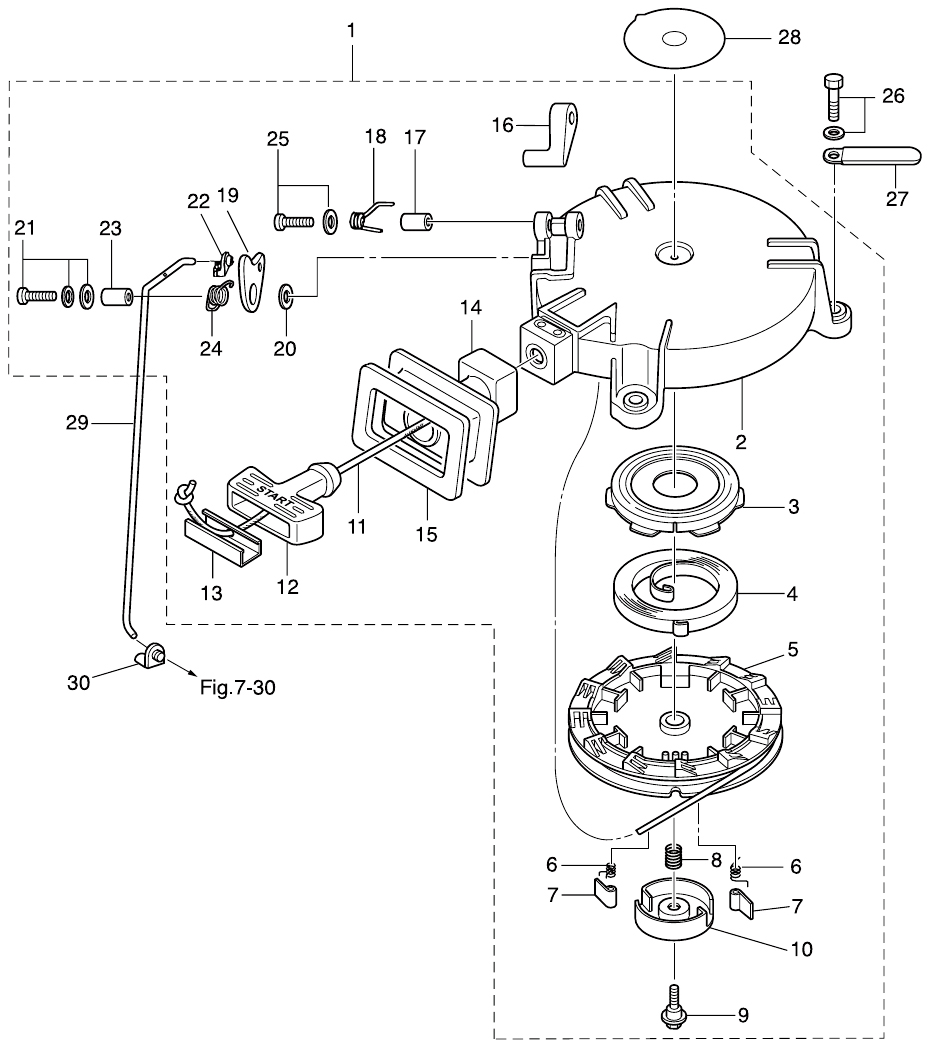

5. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER ASSY(2) STARTER CASE(3) STARTER SPRING CASE(4) STARTER SPRING(5) REEL(6) RETURN SPRING(6) RETURN SPRING(7) RATCHET(7) RATCHET(8) FRICTION SPRING(9) BOLT(10) FRICTION PLATE(11) STARTER ROPE o4.5-1620(12) STARTER HANDLE(13) ROPE ANCHOR(14) SEALING PLATE(15) STARTER SEAL(16) STARTER LOCK(17) COLLAR 4-6-21(18) STARTER LOCK SPRING(19) STARTER LOCK CAM(20) WASHER(21) SCREW(22) ROD SNAP 3.5-2(23) COLLAR 6.1-8-6.5(24) STARTER LOCK CAM SPRING(25) SCREW(26) PRE-COATED BOLT 6-25(27) CLAMP 6.5-47.5P(28) CAUTION DECAL (B)(29) STARTER LOCK ROD(30) ROD SNAP 3.5-2



Parts List
2014 :: 5 HP :: 4 Stroke Tohatsu MFS5C :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER ASSY 3GR050901M 3GR050901M $130.74 1
(2) STARTER CASE 3R1051050M 3R1-05105-0 $44.80 1
(3) STARTER SPRING CASE 3R1051250M 3R1-05125-0 $5.99 1
(4) STARTER SPRING (T=0.6) (OLD) 3R1050040M 3R1-05004-0 $16.24 1
(5) REEL 3R1051040M 3R1-05104-0 $43.73 1
(6) RETURN SPRING 3R1050120M 3H6-05012-0 $2.22 2
(7) RATCHET 3R1050032M 3R1-05003-2 $3.14 2
(8) FRICTION SPRING 3R1050070M 369-05007-0 $1.59 1
(9) STARTER SHAFT BOLT 3R1051381M 3R1-05138-1 $3.04 1
(10) FRICTION PLATE 3R1050062M 3R1-05006-2 $6.97 1
(11) STARTER ROPE 3R1050130M 3R1-05013-0 $8.29 1
(12) STARTER HANDLE (OLD) 3R1050190M 3H6-05019-0 $7.00 1
(13) ROPE ANCHOR 3R1051311M 3R1-05131-0 $4.78 1
(14) SEALING PLATE 3GR051160M 3GR-05116-0 $16.79 1
(15) STARTER SEAL 3GR675030M 3GR-67503-0 $9.04 1
(16) STARTER LOCK 3GR052520M 3GR-05252-0 $2.54 1
(17) COLLAR 4-6-21 3R1052550M 3R1-05255-0 $1.85 1
(18) SPRING STARTER LOCK 3R1052160M 338-05216-0 $1.27 1
(19) STARTER LOCK CAM 3GR052530M 3GR-05253-0 $2.10 1
(20) WASHER 9401030600M 940103-0600 $0.70 1
(21) SCREW 9215037616M 921503-7616 $1.36 1
(22) ROD SNAP 3.5-2 3R1052230M 3R1-05223-0 $1.45 1 Sold Out View More Details
(23) COLLAR 6.1-8-6.5 3R1052150M 3R1-05215-0 $2.08 1
(24) STARTER LOCK CAM SPRING 3R1052580M 3R1-05258-0 $1.27 1
(25) SCREW 9215035430M 921503-5430 $0.93 1
(26) BOLT 6-25 PRE-COATED 3AD068640M 3AD-06864-0 $1.50 3
(27) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(28) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(29) STARTER LOCK ROD 3GR052171M 3GR052171M $17.57 1
(30) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 1
