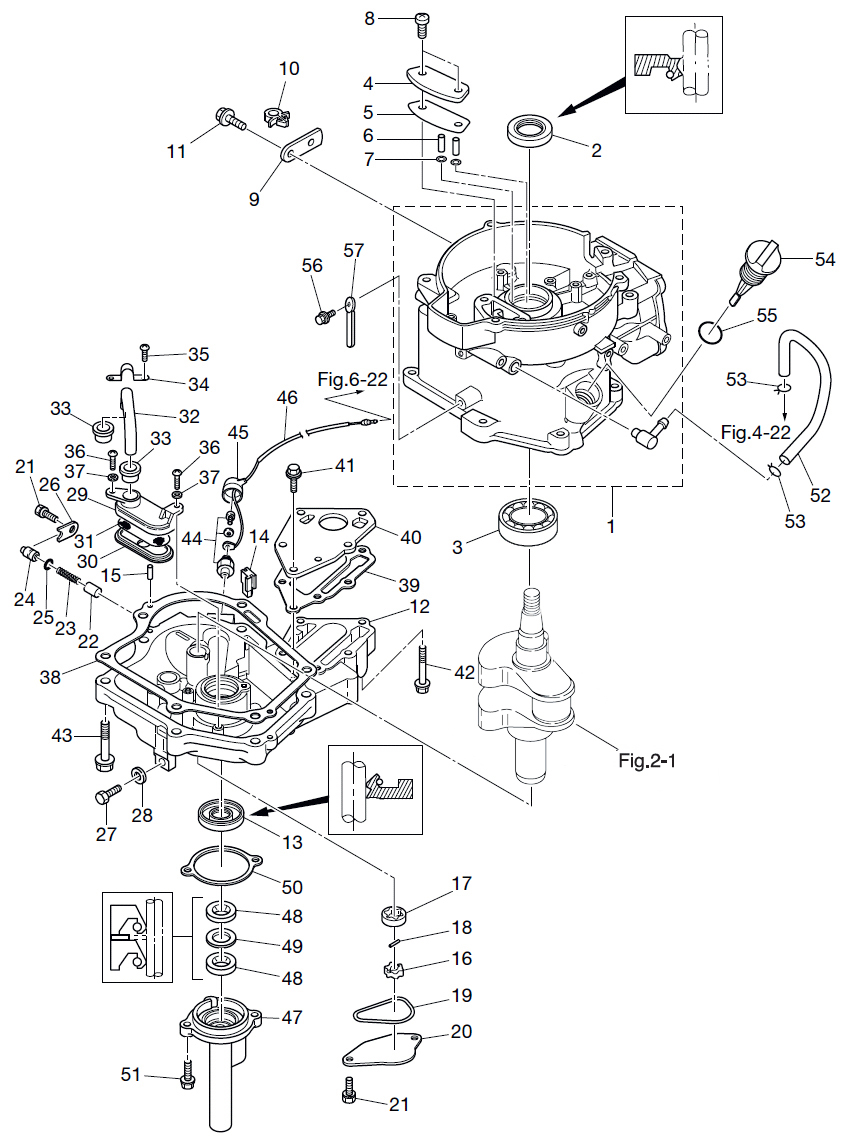

1. CYLINDER & OIL PAN

Click Here for Microfiche Usage Tip
(1) CYLINDER BLOCK (SERVICE)(2) OIL SEAL 20-35-7(3) BALL BEARING 6205(4) BREATHER CHAMBER COVER(5) GASKET(6) COLLAR(7) WAVE WASHER D=5(8) SCREW(9) CABLE HOLDER(10) CLAMP 6-9.5L(11) BOLT(12) OILPAN SUB-ASSY(13) OIL SEAL 25-40-8(14) GROMMET(15) DOWEL PIN 6-12(16) OIL PUMP ROTOR (INNER)(17) OIL PUMP ROTOR (OUTER)(18) PIN(19) O-RING o3.1(20) OIL PUMP COVER(21) BOLT(21) BOLT(22) PLUNGER CONTROL(23) SPRING(24) SEAT(25) O-RING 1.9-6.8(26) PLUNGER COVER(27) DRAIN BOLT 10-14 P1.25(28) WASHER 10.2-19-1(29) STRAINER BODY(30) STRAINER CAP(31) MESH(32) PIPE(33) SEAL(33) SEAL(34) STRAINER STOPPER(35) SCREW(36) BOLT 5-16(36) BOLT 5-16(37) WASHER(37) WASHER(38) OILPAN GASKET(39) EXHAUST COVER GASKET(40) EXHAUST COVER (INNER)(41) BOLT(42) BOLT(43) BOLT(44) OIL PRESSURE SWITCH(45) GROMMET(46) OIL PRESSURE SWITCH LEAD WIRE L=240(47) CRANKCASE HEAD(48) OIL SEAL 10.1-25-7(48) OIL SEAL 10.1-25-7(49) SPACER 19-24.8-1(50) CRANKCASE HEAD GASKET(51) BOLT(52) BREATHER HOSE(53) CLIP o12(53) CLIP o12(54) OIL LEVEL GAUGE(55) O-RING 2.6-18.7(56) BOLT(57) CLAMP 6.5-47.5P



Parts List
2014 :: 5 HP :: 4 Stroke Tohatsu MFS5C :: CYLINDER & OIL PAN
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER BLOCK (SERVICE) 3GRB011841 3GRB01184-0 $331.73 1
(2) OIL SEAL 20-35-7 3AB001210M 3AB-00121-0 $12.36 1
(3) BALL BEARING 6205 960136205M 9601-3-6205 $17.28 1
(4) BREATHER CHAMBER COVER 3ASB074310 3ASB07431-0 $0.00 1 Sold Out View More Details
(5) BREATHER CHAMBER COVER GASKET 3AS074320M 3AS-07432-0 $1.93 1
(6) BREATHER COLLAR 3R1074390M 3R1-07439-0 $1.55 2
(7) WAVE WASHER D=5 9414030500M 941403-0500 $0.55 2 Sold Out View More Details
(8) SCREW 9215216616M 921521-6616 $0.81 2
(9) CABLE HOLDER 3GR635050M 3GR-63505-0 $3.60 1 Sold Out View More Details
(10) CLAMP 6-9.5L 3GR069730M 3GR-06973-0 $1.90 1
(11) BOLT 9101035612M 910103-5612 $1.07 1
(12) OILPAN SUB-ASSY 3AS077090M 3H6B07401-0 $210.91 1
(13) OIL SEAL 25-40-8 3GR001220M 3GR-00122-0 $12.56 1
(14) OIL PAN GROMMET 3H6074040M 3H6-07404-0 $2.71 1
(15) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(16) OIL PUMP ROTOR (INNER) 3H6076010M 3H6-07601-0 $4.97 1
(17) OIL PUMP ROTOR (OUTER) 3H6076020M 3H6-07602-0 $5.15 1
(18) OIL PUMP PIN 3H6076030M 3H6-07603-0 $0.97 1
(19) OIL PUMP O-RING (ø 3.1) 3R1076050M 3R1-07605-0 $2.51 1
(20) OIL PUMP COVER 3H6076060M 3H6-07606-0 $2.86 1
(21) BOLT 9101216616M 910121-6616 OIL PUMP COVER / PLUNGER COVER $0.84 3
(22) PLUNGER CONTROL 3H6076210M 3H6-07621-0 $3.39 1
(23) PRESSURE SPRING 3H6076220M 3H6-07622-0 $1.43 1
(24) SPRING SEAT 3H6076230M 3H6-07623-0 $4.19 1
(25) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 1
(26) PLUNGER COVER 3H6671150M 3H6-67115-0 $0.92 1
(27) DRAIN BOLT 10-14 P1.25 3H6077051M 3H6-07405-0 $4.15 1
(28) WASHER 10.2-19-1 3H6074060M 3H6-07406-0 $1.30 1
(29) STRAINER BODY 3H6074110M 3H6-07411-0 $3.82 1
(30) STRAINER CAP 3H6074120M 3H6-07412-0 $3.14 1
(31) STRAINER MESH 3H6074130M 3H6-07413-0 $2.82 1
(32) STRAINER PIPE 3H6074150M 3H6-07415-0 $4.28 1
(33) STRAINER SEAL 3H6074160M 3H6-07416-0 $2.25 2
(34) STRAINER STOPPER 3H6074170M 3H6-07417-0 $1.22 1
(35) SCREW 9215216512M 921521-6512 $0.81 1
(36) BOLT 5-16 PRE-COATED 3C8024200M 3C8-02420-0 $1.85 2
(37) WASHER 9401210500M 940121-0500 $0.83 2
(38) OIL PAN GASKET 3H6074020M 3H6-07402-0 $8.70 1
(39) EXHAUST COVER GASKET (INNER) 3H6023050M 3H6-02305-0 $4.38 1
(40) EXHAUST COVER (INNER) 3H6023021M 3H6-02302-1 $14.08 1
(41) BOLT 9101F45620M 9101F4-5620 $1.53 3
(42) BOLT 9101F45640M 9101F4-5640 $0.76 3
(43) BOLT 9101245840M 910124-5840 $1.34 6
(44) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(45) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(46) OIL PRESSURE SWITCH LEAD WIRE L=240 3GR076130M 3GR-07613-0 $4.98 1
(47) CRANK CASE HEAD 369012104M 369-01210-4 $22.31 1
(48) OIL SEAL 10.1-25-7 3GR012150M 3GR-01215-0 $7.66 2
(49) SPACER 19-24.8-1 369012170M 369-01217-0 $1.30 1
(50) CRANK CASE HEAD GASKET 369012140M 369-01214-0 $12.31 1
(51) BOLT 9101035620M 910103-5620 $1.30 2
(52) BREATHER HOSE 3R1074350M 3R1-07435-0 $3.87 1
(53) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(54) OIL LEVEL GAUGE 3H6074210M 3H6-07421-0 $3.05 1
(55) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 $1.57 1
(56) BOLT 9101035612M 910103-5612 $1.07 1
(57) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
