6. MAGNETO

Click Here for Microfiche Usage Tip

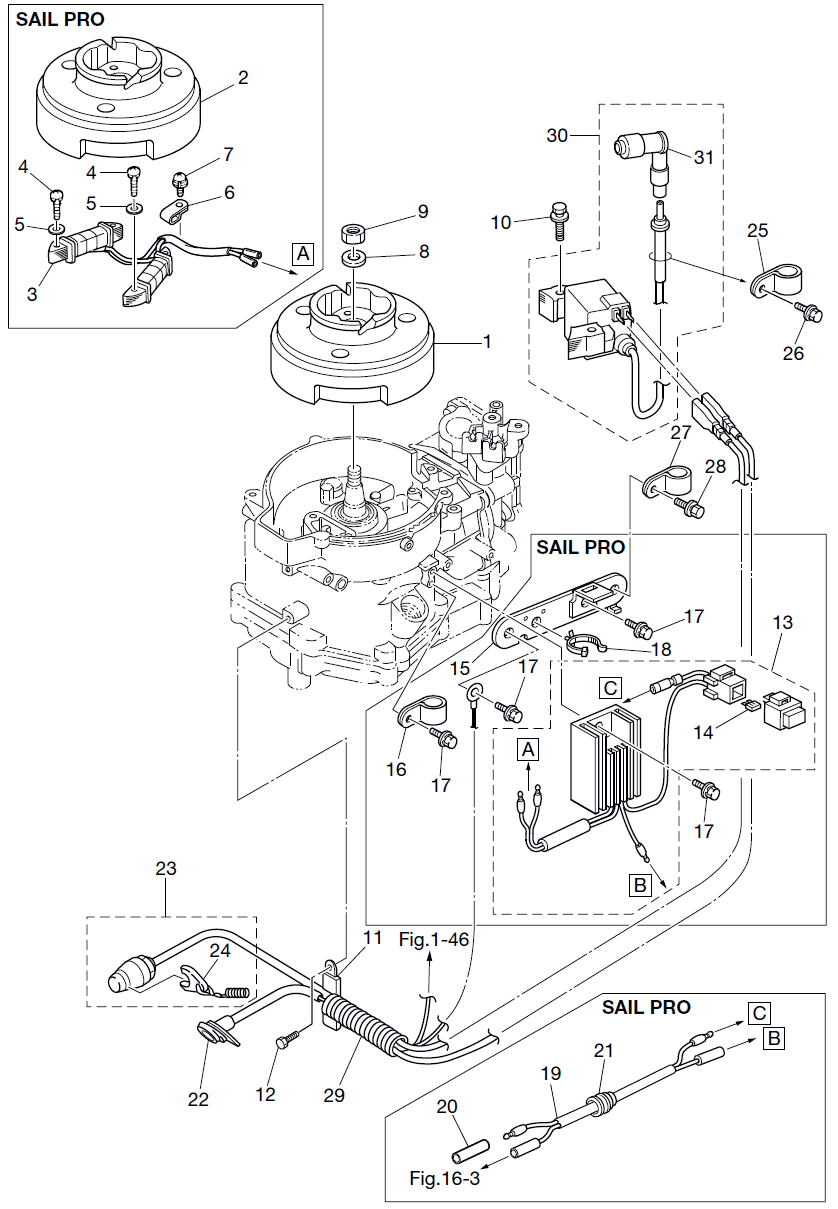

(1) FLYWHEEL(2) FLYWHEEL(3) ALTERNATOR ASSY(4) SCREW(4) SCREW(5) WASHER(5) WASHER(6) CLAMP 4.2-3-8(7) SCREW(8) WASHER(9) NUT 12-P1.25(10) BOLT(11) CLAMP 6.5-47.5P(12) BOLT(13) RECTIFIER COMPLETE(14) FUSE 10A(15) ELECTRIC BRACKET ASSY(16) CLAMP 6.5-14L(17) BOLT(17) BOLT(17) BOLT(17) BOLT(18) BAND 135(19) BATTERY CABLE L=494(20) CABLE TERMINAL PLUG(21) GROMMET 17-3(22) PILOT LAMP ASSY(23) STOP SWITCH ASSY(24) STOP SWITCH LANYARD ASSY(25) CLAMP 6.5-14L(26) BOLT(27) CLAMP 6.5-14L(28) BOLT(29) PROTECTOR(30) IGNITER W/R-CAP(31) PLUG CAP W/RESISTANCE



Parts List
2014 :: 4 HP :: 4 Stroke Nissan NSF4C :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP MF54 (MARK 48) 3AS060090M 3AS-06009-0 MF54 MARK 48 / STD $0.00 1 Sold Out View More Details
(2) FLYWHEEL CUP MFS54 (MARK 50) 3AS060010M 3AS-06001-0 MF54 MARK 50 / FOR SAIL PRO ALTERNATER $175.63 0
(3) ALTERNATOR ASSY 3GR060230M 3GR-06023-0 FOR SAIL PRO / 12V60W $76.04 0
(4) SCREW 9215030525M 921503-0525 FOR SAIL PRO $0.90 0
(5) WASHER 9401030500M 940103-0500 FOR SAIL PRO $0.53 0
(6) CLAMP 4.2-3-8 369069150M 369-06915-0 FOR SAIL PRO $2.31 0
(7) SCREW 9215216408M 921521-6408 FOR SAIL PRO $0.63 0
(8) WASHER 9401211200M 940121-1200 $0.97 1
(9) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(10) BOLT 9101035630M 910113-5630 $1.15 2
(11) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(12) BOLT 9101035612M 910103-5612 $1.07 1
(13) RECTIFIER COMPLETE 3GR760600M 3GR-76060-0 FOR SAIL PRO $123.60 0
(14) FUSE 10A 3GR762460M 3GR-76246-0 FOR SAIL PRO $4.00 0
(15) ELECTRIC BRACKET ASSY 3GR069000M 3GR-06900-0 FOR SAIL PRO $17.43 0 Sold Out View More Details
(16) CLAMP 6.5-14L 345069150M 345-06915-0 FOR SAIL PRO $4.63 0
(17) BOLT 9101035614M 910113-5614 FOR SAIL PRO $1.07 0
(18) LEAD WIRE BAND 135 3BJ843980M 3BJ-84398-0 FOR SAIL PRO $2.22 0
(19) BATTERY CABLE L=494 399761200M 399-76120-0 FOR SAIL PRO $16.24 0
(20) CABLE TERMINAL PLUG 3H6760370M 3H6-76037-0 FOR SAIL PRO $1.93 0
(21) GROMMET 17 - 3 345662260M 345-66226-0 FOR SAIL PRO $3.91 0 Sold Out View More Details
(22) PILOT LAMP ASSY 3GR710400M 3GR-71040-0 $22.69 1
(23) STOP SWITCH ASSY 3GR068700M 3GR-06870-0 $45.96 1
(24) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(25) CLAMP 6.5-14L 345069150M 345-06915-0 FOR SAIL PRO $4.63 0
(26) BOLT 9101035612M 910103-5612 $1.07 1
(27) CLAMP 6.5-14L 345069150M 345-06915-0 FOR SAIL PRO $4.63 0
(28) BOLT 9101035612M 910103-5612 $1.07 1
(29) PROTECTOR 3H6061330M 3H6-06133-0 $2.53 1
(30) IGNITER W/R-CAP 3GR060410M 3GR-06041-0 $152.12 1
(31) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 1
