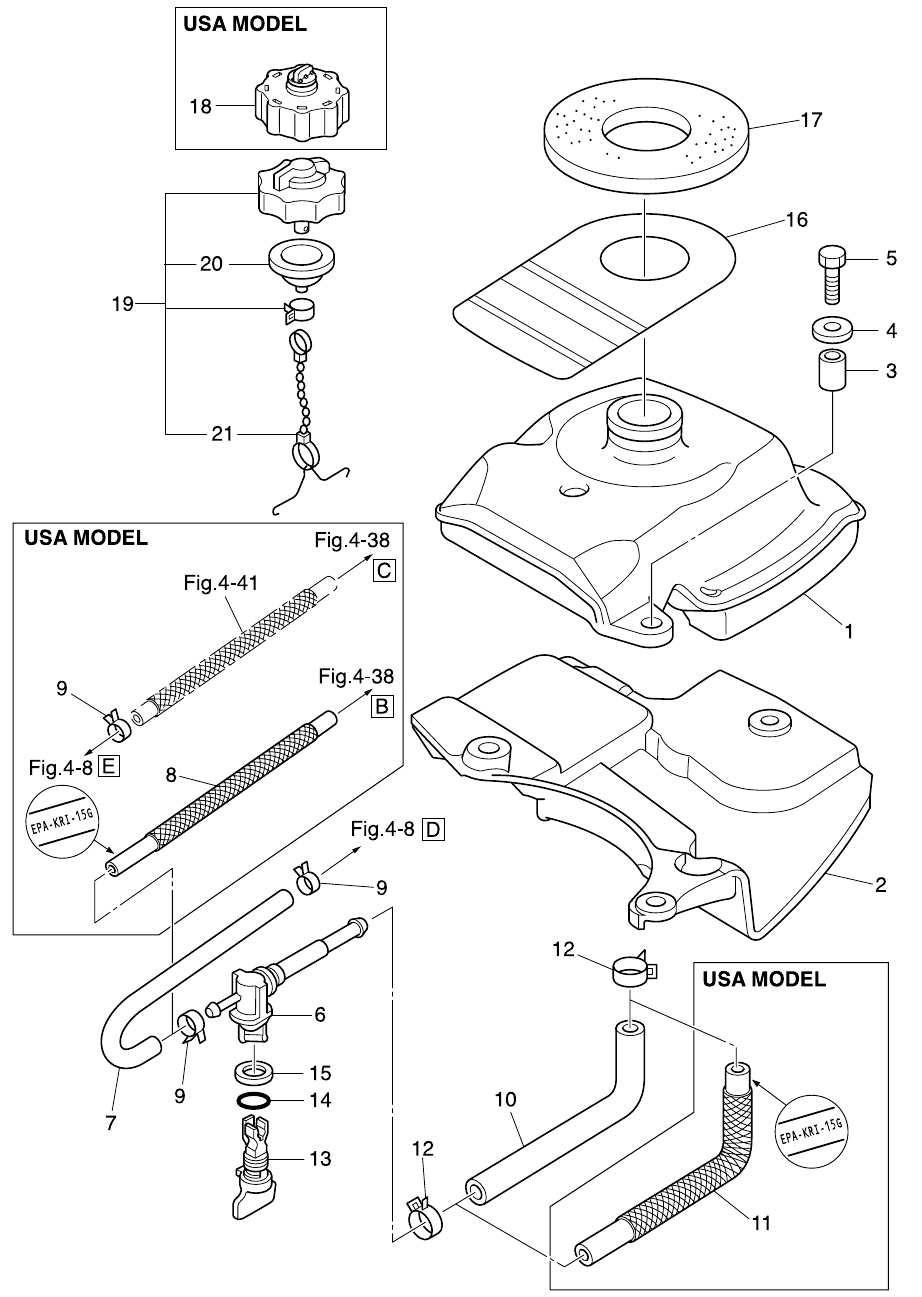

15. FUEL TANK

Click Here for Microfiche Usage Tip
(1) FUEL TANK ASSY(1) FUEL TANK ASSY(2) COVER(3) COLLAR 6.2-9-10.7(4) WASHER 6-16-1.5(5) BOLT(6) FUEL COCK ASSY(7) FUEL HOSE 155-20-20(8) FUEL HOSE W/PROTECTOR L=340(9) CLIP 9.4(9) CLIP 9.4(9) CLIP 9.4(10) FUEL HOSE L=215(11) FUEL HOSE W/PROTECTOR L=215(12) CLIP 15(12) CLIP 15(13) FUEL COCK KNOB(14) O-RING 2-10(15) SEAL RING(16) CAUTION TAG (B)(17) FUEL TANK SEAL(18) FUEL TANK CAP ASSY(19) FUEL TANK CAP ASSY(20) TANK FILLER CAP GASKET(21) CAP HOOK



Parts List
2014 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK ASSY 3GT703101M 3GT703101M LOW PERMEATION PARTS / USA EPA-YZK-YK4 $72.85 1
(1) FUEL TANK ASSY 3AB703103M 3AB-70310-0 STD $72.85 1
(2) COVER 3AB068461M 3AB-06846-0 $22.03 1
(3) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.87 3
(4) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 3
(5) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $1.01 3
(6) FUEL COCK 369703110M 369-70311-0 FUEL VALVE $31.97 1
(7) FUEL HOSE 155-20-20 3GT703260M 3GT-70326-0 FUEL VALVE-CARBURETOR / STD $5.92 1
(8) FUEL HOSE W/PROTECTOR L=340 3GT021650M 3GT-02165-0 FUEL VALVE-FUEL PUMP / USA EPA-KRI-15G $17.63 1
(9) CLIP ø 9.5 3AB351430M 121-35143-0 $1.39 2
(10) FUEL HOSE L=215 3GT703250M 3GT-70325-0 FUEL TANK- FUEL VALVE / STD $10.58 1
(11) FUEL HOSE W/PROTECTOR L=215 3GT021750M 3GT-02175-0 FUEL TANK- FUEL VALVE / USA EPA-KRI-15G $30.65 1
(12) CLIP 15 3AB022151M 3AB-02215-1 $2.90 2
(13) FUEL COCK KNOB 3GT700620M 3GT-70062-0 FUEL VALVE $4.19 1
(14) O-RING 2-10 3G9661360M 3G9-66136-0 $1.70 1
(15) SEAL RING 369700630M 369-70063-0 $2.74 1
(16) CAUTION TAG B 3AB721830M 3AB-72183-0 $4.69 1
(17) FUEL TANK SEAL 3AB700361M 3AB-70036-1 $8.61 1
(18) FUEL TANK CAP ASSY 3GT703210M 3GT-70321-0 LOW PERMEATION PARTS / USA EPA-ITX-DRN $35.86 1
(19) FUEL TANK CAP ASSY 3R6703201M 3R6-70320-0 STD $15.46 1
(20) TANK CAP GASKET 309700213M 309-70021-3 $3.91 1
(21) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.82 1
