5. THROTTLE

Click Here for Microfiche Usage Tip

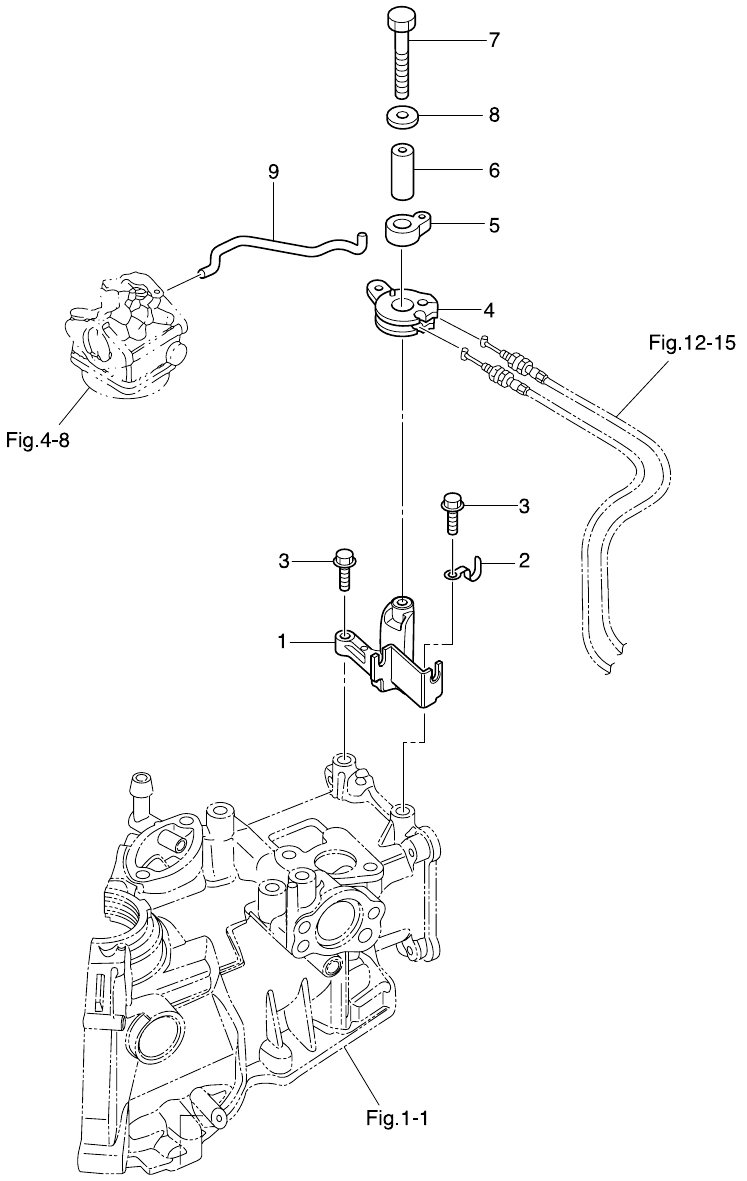

(1) THROTTLE WIRE BRACKET(2) CLAMP 6.5-67P(3) BOLT(3) BOLT(4) THROTTLE DRUM(5) THROTTLE OPENER(6) COLLAR(7) BOLT(8) WASHER 6-16-1.5(9) THROTTLE ROD



Parts List
2014 :: 3.5 HP :: 4 Stroke Tohatsu MFS3.5B :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) THROTTLE WIRE BRACKET 3ABB635080 3AB-63508-0 $18.23 1
(2) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(3) BOLT 9101E35625M 910113-5625 $1.47 2
(4) THROTTLE DRUM 3H6636110M 3H6-63611-0 $3.55 1
(5) THROTTLE OPENER 3H6636120M 3H6-63612-0 $1.71 1
(6) COLLAR 6.5-10.5-22.6 3H6636180M 3H6-63618-0 $4.28 1
(7) BOLT 9161E30635M 9161E3-0635 $0.00 1 Sold Out View More Details
(8) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 1
(9) THROTTLE ROD 3AB636170M 3AB-63617-0 $3.46 1
