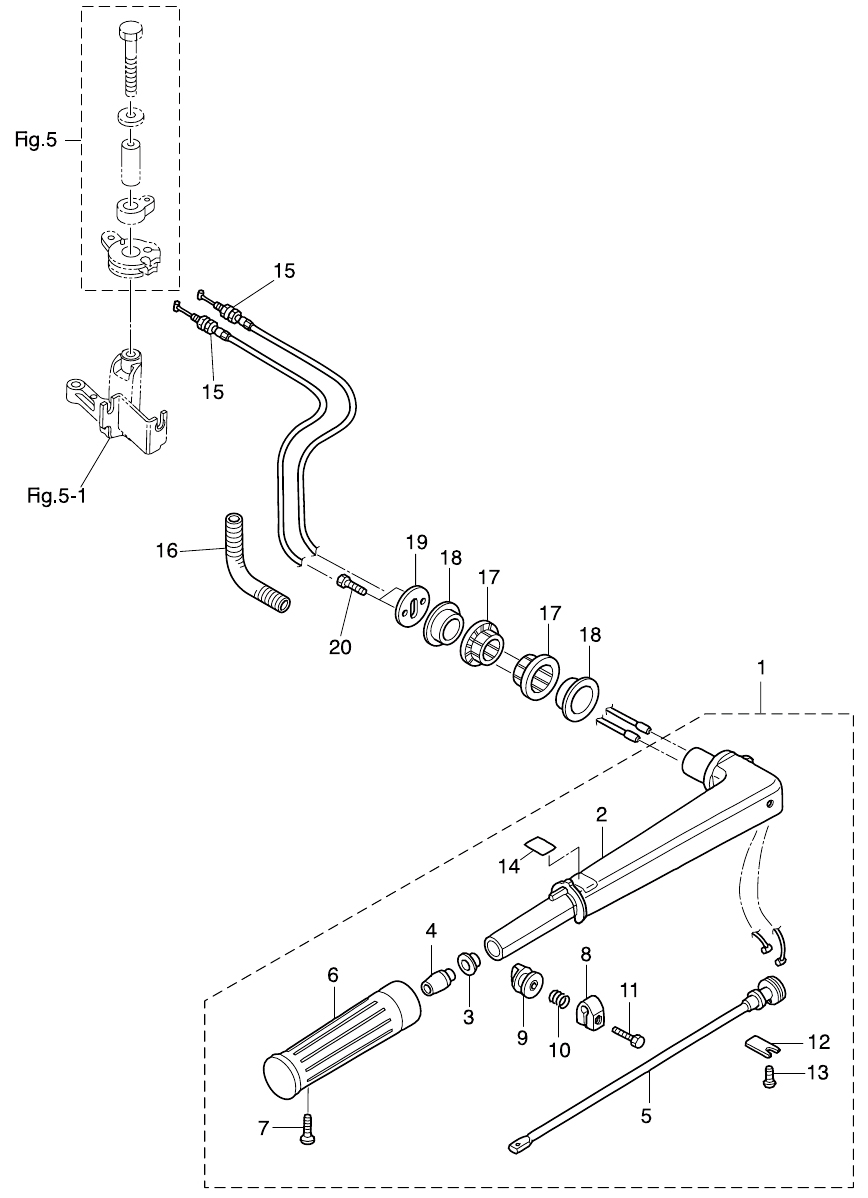

12. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE ASSY(2) TILLER HANDLE(3) BUSHING 14-15.8-7(4) THROTTLE SHAFT DAMPER(5) THROTTLE SHAFT(6) GRIP(7) SCREW(8) FRICTION PIECE(9) ADJUSTING NUT(10) SPRING(11) BOLT(12) THROTTLE SHAFT SUPPORT(13) SCREW(14) THROTTLE DECAL(15) THROTTLE WIRE(15) THROTTLE WIRE(16) FUEL HOSE PROTECTOR(17) BUSHING(17) BUSHING(18) BUSHING 32-34-11.8(18) BUSHING 32-34-11.8(19) COVER(20) BOLT



Parts List
2014 :: 2.5 HP :: 4 Stroke Tohatsu MFS2.5B :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE ASSY 3GTQ630030 3GTQ630030 $119.06 1
(2) TILLER HANDLE 3V1Q630113 3V1Q63011-0 $49.18 1
(3) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 $1.27 1
(4) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(5) THROTTLE SHAFT 3V1630410M 3V1-63041-0 $12.14 1
(6) GRIP 3R3630120M 3R3-63012-0 $16.97 1
(7) SCREW 9208E30518M 9208E3-0518 $0.92 1
(8) FRICTION PIECE 3V1630351M 3V1-63035-0 $2.58 1
(9) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(10) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(11) BOLT 9101030625M 910113-0625 $0.95 1
(12) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(13) SCREW 9215030612M 921513-0612 $0.93 1
(14) THROTTLE DECAL 3V9720190M 3V9-72019-0 $2.19 1
(15) THROTTLE CABLE 3V1636000M 3V1-63600-0 $17.26 2
(16) FUEL HOSE PROTECTOR 3H9703130M 3H9-70313-0 $2.31 1
(17) BUSHING 3AB631020M 3AB-63102-0 $2.82 2
(18) BUSHING 32-34-11.8 3BR631021M 3BR-63102-1 $0.00 2 Sold Out View More Details
(19) COVER 3AB631070M 3AB-63107-0 $3.46 1 Sold Out View More Details
(20) BOLT 9101E30616M 9101E3-0616 $0.98 2
