15. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip

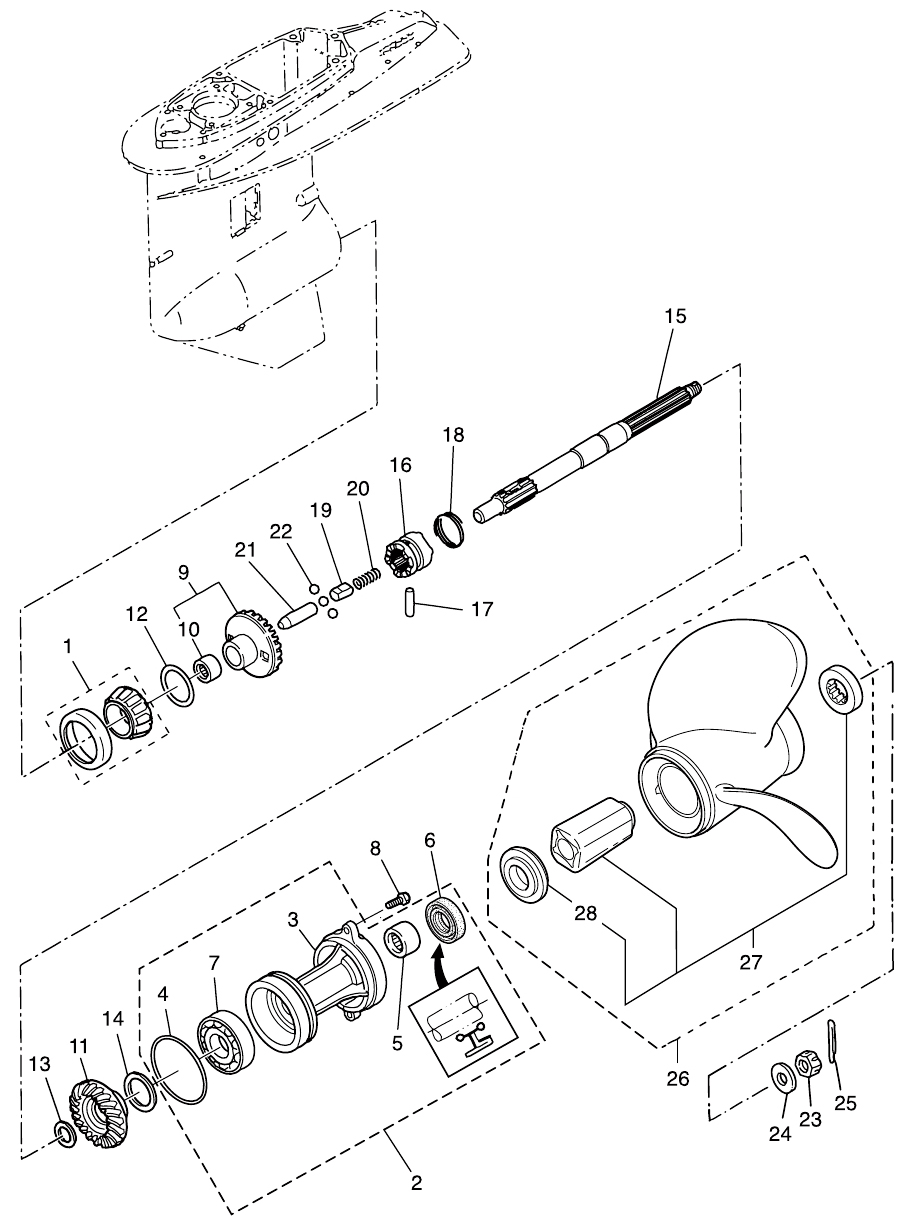

(1) TAPERED ROLLER BEARING 30209(2) PROPELLER SHAFT HOUSING ASSY(3) PROPELLER SHAFT HOUSING(4) O-RING 3.1-94.4(5) ROLLER BEARING 30-40-30(6) OIL SEAL 30-50-12(7) BALL BEARING 6208(8) PRE-COATED BOLT 8-30(9) BEVEL GEAR ASSY (A)(10) ROLLER BEARING 25-32-26(11) BEVEL GEAR C(12) SHIM 47-57-0.15(12) SHIM 47-57-0.1(13) WASHER T=3.2(13) WASHER T=3.0(13) WASHER T=2.8(14) SHIM 42-50-0.15(14) SHIM 42-50-0.1(15) PROPELLER SHAFT(16) CLUTCH(17) PIN(18) SNAP(19) SPRING RETAINER L=30.5(20) SPRING(21) PUSH ROD(22) BALL(23) PROPELLER NUT(24) WASHER 17-32-3(25) SPLIT PIN 3-25(26) PROPELLER ASSY (9")(26) PROPELLER ASSY (11")(26) PROPELLER ASSY (13")(26) PROPELLER ASSY (15")(26) PROPELLER ASSY (17")(26) PROPELLER ASSY (19")(26) PROPELLER ASSY (21")(27) PROPELLER HUB KIT(28) FORWARD THRUST WASHER



Parts List
2013 :: 115 HP :: TLDI Tohatsu MD115A2 :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 30209 3C7602150M 3C7-60215-0 $61.67 1
(2) PROPELLER SHAFT HOUSING ASSY 3B7Q873231 3B7Q87323-1 $157.69 1
(3) PROPELLER SHAFT HOUSING 3B7Q601011 3B7S60101-1 $80.99 1
(4) O-RING 3.1-94.4 3B7601030M 3B7-60103-0 $4.54 1
(5) NEEDLE BEARING 30-40-30 3B7602110M 3B7-60211-0 $33.06 1
(6) OIL SEAL 30-50-12 3B7601110M 3B7-60111-0 $11.18 1
(7) BEARING 6208 960106208M 9601-0-6208 $30.77 1
(8) PRE-COATED BOLT 8-30 3C7601082M 3C7-60108-0 $5.92 2
(9) BEVEL GEAR A 3C7640100M 3C7-64010-0 $368.18 1
(10) NEEDLE BEARING 25-32-26 3B7640110M 3B7-64011-0 $34.51 1
(11) BEVEL GEAR C 3T1640930M 3T1-64093-0 $162.62 1
(12) SHIM 47-57-0.15 3B7640150M 3B7-64015-0 $0.87 0
(12) SHIM 47-57-0.1 3B7640160M 3B7-64016-0 $1.42 0
(13) BEVEL GEAR C WASHER 3B7640320M 3B7-64032-0 $34.08 0
(13) BEVEL GEAR C WASHER 3B7640340M 3B7-64034-0 $34.08 0
(13) BEVEL GEAR C WASHER 3B7640350M 3B7-64035-0 $7.23 0
(14) SHIM 42-50-0.15 3B7640360M 3B7-64036-0 $0.92 0 Sold Out View More Details
(14) SHIM 42-50-0.1 3B7640370M 3B7-64037-0 $0.87 0 Sold Out View More Details
(15) PROPELLER SHAFT 3B7642110M 3B7-64211-0 $295.84 1 Sold Out View More Details
(16) CLUTCH 3T1642152M 3T1-64215-2 $222.87 1
(17) CLUTCH PIN 3B7642180M 3B7-64218-0 $3.39 1
(18) CLUTCH PIN SNAP 3B7642191M 3B7-64219-1 $5.18 1
(19) SPRING RETAINER L=30.5 3T1642220M 3T1-64222-0 $11.00 1
(20) CLUTCH SPRING 346642210M 346-64221-0 $1.61 1
(21) PUSH ROD 3T1642230M 3T1-64223-0 $10.08 1
(22) BALL 3T1642240M 3T1-64224-0 $1.27 3
(23) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
(24) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(25) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
(26) PROPELLER ASSY (9) 3HKB645180 3HKB645180 OPT 3 X 356 X 229 $0.00 1 Sold Out View More Details
(26) PROPELLER ASSY (11) 3HKB645230 3HKB645230 OPT 3 X 356 X 279 $0.00 1 Sold Out View More Details
(26) PROPELLER ASSY (13) 3HKB645270 3HKB645270 OPT 3 X 349 X 330 $142.37 1
(26) PROPELLER ASSY (15) 3HKB645320 3HKB645320 OPT 3 X 343 X 381 $142.37 1
(26) PROPELLER ASSY (17) 3HKB645360 3HKB645360 OPT 3 X 337 X 432 $142.37 1
(26) PROPELLER ASSY (19) 3HKB645410 3HKB645410 OPT 3 X 335 X 483 $142.37 1
(26) PROPELLER ASSY (21) 3HKB645450 3HKB645450 OPT 3 X 335 X 533 $142.37 1
(27) PROPELLER HUB KIT 3HK642380M 3HK642380M OPT $48.72 1
(28) FORWARD THRUST WASHER 3HK642350M 3HK642350M OPT $70.30 1
