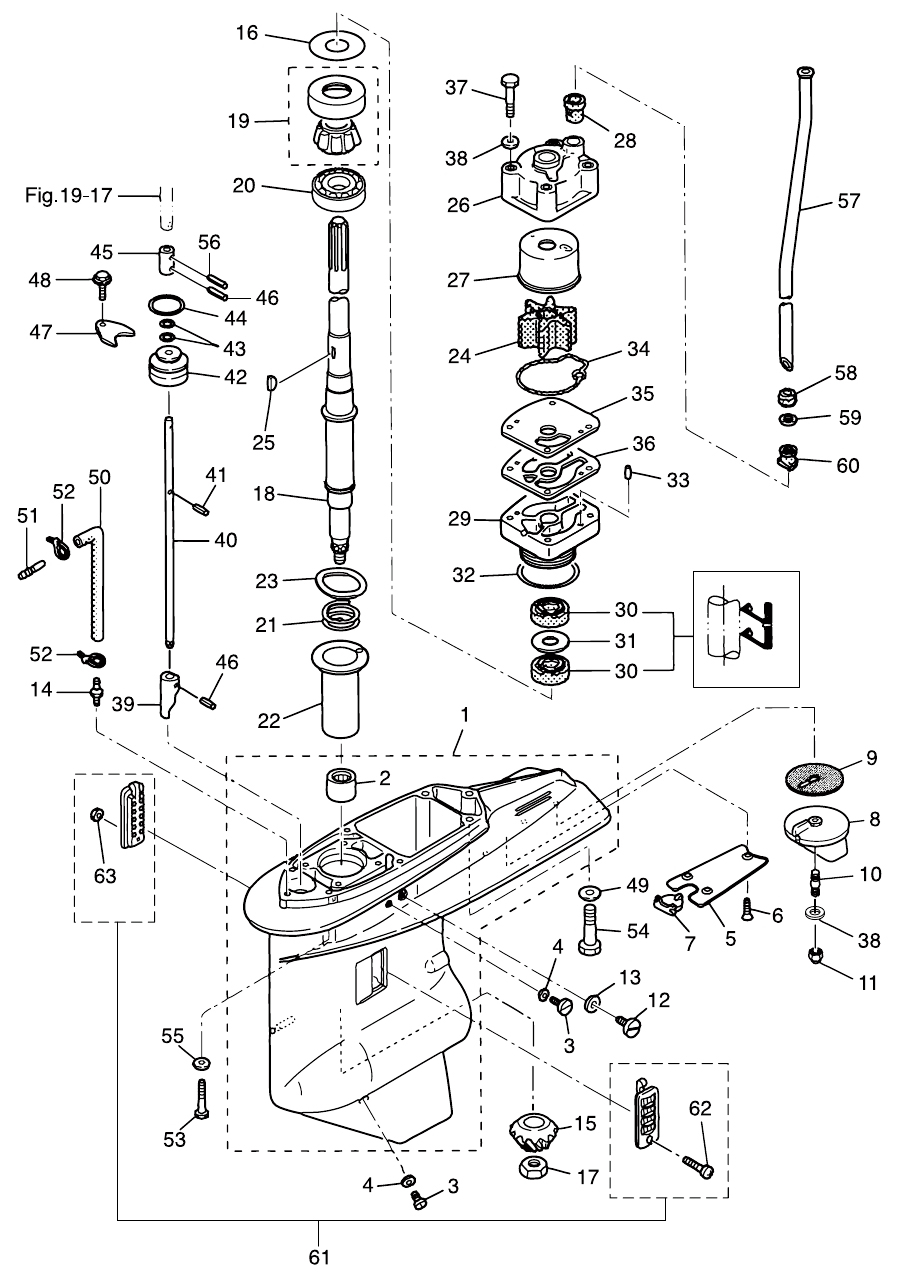

14. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(2) ROLLER BEARING 28.6-38.1-3(3) PLUG 8-8(3) PLUG 8-8(4) GASKET 8.1-15-1(4) GASKET 8.1-15-1(5) GEAR CASE PLATE(6) SCREW(7) GEAR CASE PLATE PLUG(8) TRIM TAB(9) TRIM TAB GASKET(10) STUD(11) NYLON NUT 8-P1.25(12) PLUG(13) GASKET 10.1-15-1(14) NIPPLE 6-1/8(15) BEVEL GEAR B(16) SHIM 52-60.5-0.3(16) SHIM 52-60.5-0.15(16) SHIM 52-60.5-0.1(17) NUT(18) DRIVE SHAFT (L)(18) DRIVE SHAFT (UL)(19) TAPERED ROLLER BEARING 0506(20) BALL BEARING 16007(21) DRIVE SHAFT SPRING(22) DRIVE SHAFT SPRING GUIDE(23) WAVE WASHER D=47.2(24) WATER PUMP IMPELLER(25) KEY(26) PUMP CASE SUB-ASSY (UPPER)(27) PUMP CASE LINER(28) WATER PIPE SEAL (LOWER)(29) PUMP CASE (LOWER)(30) OIL SEAL 22-42-7(30) OIL SEAL 22-42-7(31) SHIM 35-41.9-0.5(32) O-RING 3.1-54.4(33) DOWEL PIN 4-10(34) PUMP CASE GASKET(35) WATER PUMP GUIDE PLATE(36) GUIDE PLATE GASKET(37) BOLT(38) WASHER(38) WASHER(39) CLUTCH CAM(40) CAM ROD (L)(40) CAM ROD (UL)(41) SPRING PIN 3.5-10(42) CAM ROD BUSHING(43) O-RING 1.9-6.8(44) O-RING 3.5-27.7(45) SHIFT ROD JOINT(46) SPRING PIN 3.5-16(46) SPRING PIN 3.5-16(47) STOPPER(48) BOLT(49) WASHER(50) HOSE(50) HOSE(51) NIPPLE 6-6(52) BAND 100(52) BAND 100(53) BOLT 8-35(54) BOLT 10-40(55) WASHER(56) SPRING PIN 3.5-16(57) WATER PIPE (L)(57) WATER PIPE (UL)(58) WATER PIPE SEAL (UPPER)(59) COLLAR 18-20-4.5(60) WATER PIPE AUXILIARY MOUNT(61) WATER STRAINER SET(62) SCREW(63) NYLON NUT 4-P0.7



Parts List
2013 :: 115 HP :: TLDI Tohatsu MD115A2 :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3C7Q600006 3C7Q60000-6 $772.97 1
(2) NEEDLE BEARING 28.6-38.1-31.8 3C7602111M 3C7-60211-1 $55.07 1
(3) WATER PLUG 332600052M 332-60005-2 $5.07 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(5) GEAR CASE PLATE 3B7600121M 3B7-60012-1 $13.90 1
(6) SCREW 9216E30614M 921613-0614 $0.69 3
(7) GEAR CASE PLATE PLUG 3B7600130M 3B7-60013-0 $2.56 1
(8) TRIM TAB 3B7602171M 3B7-60217-1 $26.40 1
(9) TRIM TAB 3B7602190M 3B7-60219-0 $3.40 1
(10) STUD BOLT 9153030825M 915303-0825 $3.51 1
(11) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(12) WATER PLUG 3B7600151M 3B7-60015-1 $5.29 1
(13) GASKET 10.1-15-1 3B7600161M 3B7-60016-0 $2.31 1
(14) NIPPLE 6-1/8 3C7600170M 3C7-60017-0 SPEEDOMETER $3.27 1
(15) BEVEL GEAR B 3C7640200M 3C7-64020-0 $165.19 1
(16) SHIM 52-60.5-0.3 353640140M 353-64014-0 $1.14 0
(16) SHIM 52-60.5-0.15 353640150M 353-64015-0 $1.23 0
(16) SHIM 52-60.5-0.1 353640160M 353-64016-0 $1.49 0
(17) BEVEL GEAR B NUT 3B7640270M 3B7-64027-0 $10.41 1
(18) DRIVE SHAFT (L) 3C7643023M 3C7-64302-2 FOR TRANSOM L $543.87 1
(18) DRIVE SHAFT (UL) 3C7643033M 3C7-64303-2 FOR TRANSOM UL $562.96 1
(19) BEARING 0506 3C7602130M 3C7-60213-0 $44.07 1
(20) BEARING 16007 3C7602140M 3C7-60214-0 $26.40 1
(21) DRIVE SHAFT SPRING 3C7643271M 3C7-64327-0 $5.29 1 Sold Out View More Details
(22) DRIVE SHAFT SPRING GUIDE 3C7643280M 3C7-64328-0 $8.05 1
(23) WAVE WASHER D=47.2 3C7602100M 3C7-60210-0 $4.38 1
(24) WATER PUMP IMPELLER 3C7650211M 3C7-65021-1 $24.25 1
(25) KEY 3B7650221M 3B7650221M PUMP IMPELLER $10.98 1
(26) PUMP CASE (UPPER) 3C7650160M 3C7-65016-0 $48.67 1
(27) PUMP CASE LINER 3C7650110M 3C7-65011-0 $19.84 1
(28) WATER PIPE SEAL (LOWER) 3C7650140M 3C7-65014-0 $2.31 1
(29) PUMP CASE (LOWER) 3C7650172M 3C7-65017-2 $96.69 1
(30) OIL SEAL 22-42-7 3C7602231M 3C7-60223-1 $4.95 2
(31) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 1
(32) O-RING 3.1-54.4 3B7650150M 3B7-65015-0 $3.91 1
(33) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(34) PUMP CASE SEAL 3C7650180M 3C7-65018-0 $3.39 1
(35) WATER PUMP GUIDE PLATE 3C7650250M 3C7-65025-0 $13.51 1
(36) GUIDE PLATE GASKET 3C7650290M 3C7-65029-0 $2.56 1
(37) BOLT 9161E30885M 916113-0885 $3.50 4
(38) WASHER 9401030800M 940113-0800 TRIM TAB / PUMP CASE $0.84 5
(39) CLUTCH CAM 3B7660111M 3B7-66011-1 $52.86 1
(40) CAM ROD L 3B7660131M 3B7-66013-1 FOR TRANSOM L $20.02 1
(40) CAM ROD UL 3B7660141M 3B7-66014-1 FOR TRANSOM UL $21.90 1
(41) SPRING PIN 3.5-10 9514033510M 951403-3510 $0.49 1
(42) CAM ROD BUSHING 3B7660311M 3B7-66031-1 $23.01 1
(43) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(44) O-RING 3.5-27.7 3B7660230M 3B7-66023-0 $2.76 1
(45) SHIFT ROD JOINT 353662411M 353-66241-1 $8.20 1
(46) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 2
(47) STOPPER 353660240M 353-66024-0 $4.40 1
(48) BOLT 9101036612M 910103-6612 $1.16 1
(49) WASHER 9402E31000M 940213-1000 $1.04 3
(50) SPEEDOMETER PIPE L 98AL40800M 98AL-4-0800 FOR TRANSOM L / 98AL-401000 $8.81 1
(50) SPEEDOMETER PIPE UL 98AL40920M 98AL-4-0920 FOR TRANSOM UL / 98AL-401000 $8.81 1
(51) NIPPLE 6-6 3C7600180M 3C7-60018-0 $3.00 1
(52) LEAD WIRE BAND 100 353843980M 353-84398-0 $0.84 2
(53) BOLT 8-35 3T1600011M 916189-0835 $5.35 4
(54) BOLT 10-40 3B7600015M 3B7-60001-2 $8.33 3
(55) WASHER 9401E30800M 9401E3-0800 $0.65 4
(56) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(57) WATER PIPE L 3C7651100M 3C7-65110-0 FOR TRANSOM L $22.54 1
(57) WATER PIPE UL 3C7651200M 3C7-65120-0 FOR TRANSOM UL $25.33 1
(58) WATER PIPE SEAL (UPPER) 3C7652060M 3C7-65206-0 $2.56 1
(59) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(60) WATER PIPE AUXILIARY MOUNT 3C7652040M 3C7-65204-0 $2.56 1
(61) WATER STRAINER SET 3C7602051M 3A1-60235-0 $13.35 1
(62) SCREW 9215030445M 921503-0445 $1.13 1
(63) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 1
