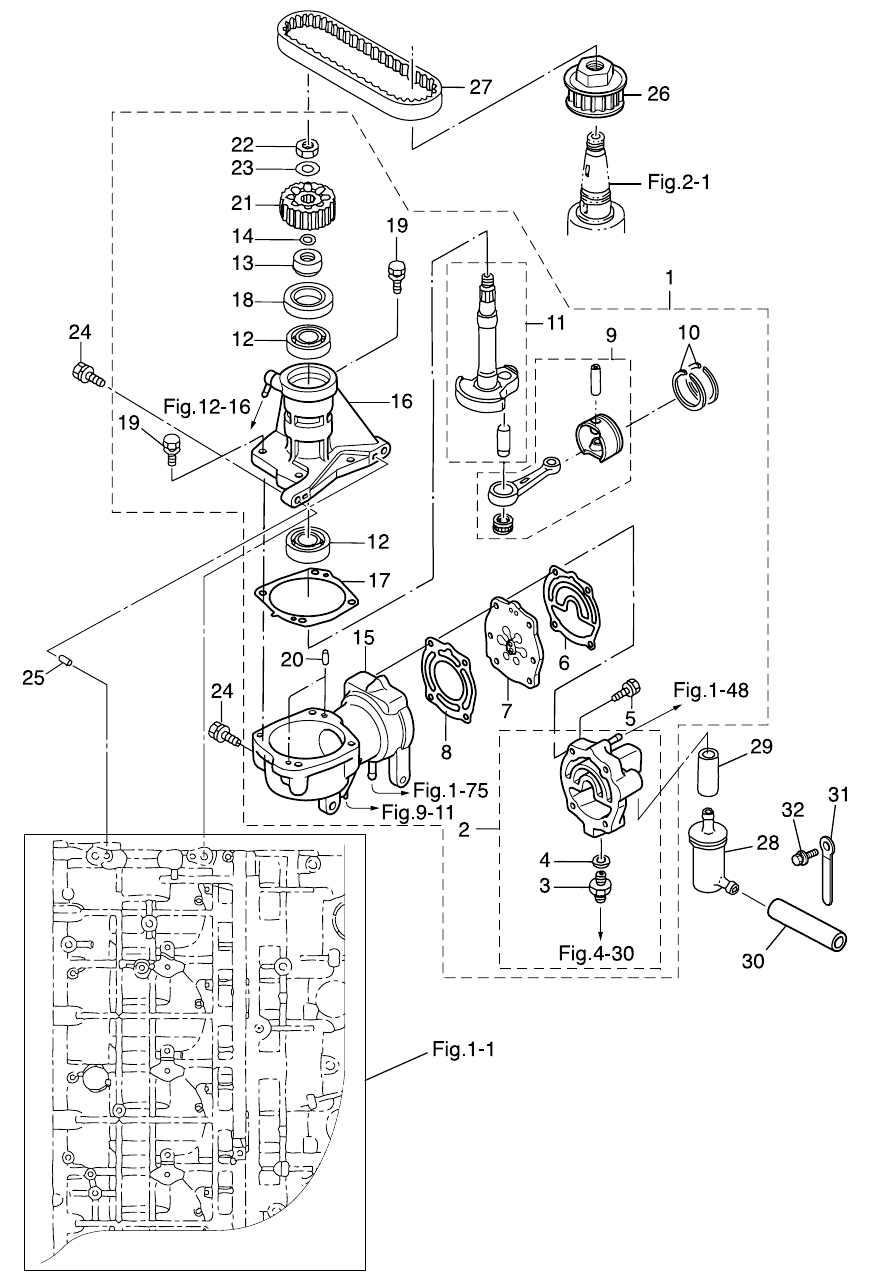

5. AIR COMPRESSOR

Click Here for Microfiche Usage Tip
(1) AIR COMPRESSOR ASSY(2) COMPRESSOR HEAD ASSY(3) ADAPTER(4) WASHER 10.2-17-2(5) BOLT(6) GASKET(7) REED VALVE ASSY(8) GASKET(9) PISTON & CONNECTING ROD ASSY(10) AIR COMPRESSOR PISTON RING(11) COMPRESSOR CRANKSHAFT ASSY(12) BALL BEARING 6203(12) BALL BEARING 6203(13) COLLAR 13.5-25-13(14) O-RING 1.9-13(15) AIR COMPRESSOR CYLINDER ASSY(16) AIR COMPRESSOR HOUSING ASSY(17) GASKET(18) OIL SEAL 25-45-8(19) BOLT(19) BOLT(20) DOWEL PIN 4-10(21) DRIVEN PULLEY(22) NUT 10-P1.25(23) WASHER 10.5-20-3.2(24) BOLT(24) BOLT(25) DOWEL PIN 6-12(26) DRIVE PULLEY(27) DRIVE BELT(28) AIR FILTER ASSY(29) HOSE(30) HOSE(31) CLAMP 6.5-67P(32) BOLT



Parts List
2013 :: 115 HP :: TLDI Tohatsu MD115A2 :: AIR COMPRESSOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR COMPRESSOR ASSY 3HKB100002 3HKB10000-2 $1,220.24 1
(2) COMPRESSOR HEAD ASSY 3HKB100090 3HKB10009-0 $215.81 1
(3) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(4) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(5) BOLT 9101F45635M 9101F4-5635 $1.96 4 Sold Out View More Details
(6) COMPRESSOR HEAD GASKET 3T1100120M 3T1-10012-0 $5.29 1
(7) REED VALVE ASSY 3HK100101M 3HK-10010-1 $117.24 1
(8) VALVE SEAT GASKET 3T1100190M 3T1-10019-0 $5.29 1
(9) PISTON & CONNECTING ROD 3T1873300M 3T1-87330-0 $107.79 1
(10) PISTON RING 3T1100250M 3T1-10025-0 $7.27 2 Sold Out View More Details
(11) COMPRESSOR CRANKSHAFT ASSY 3T1873311M 3T1-87331-1 $119.15 1
(12) BEARING 6203 960106203M 9601-0-6203 $16.50 2
(13) COLLAR 13.5-25-13 3T1100420M 3T1-10042-0 $26.50 1
(14) O-RING 13-1.9 3T5100460M 3T5-10046-0 $0.81 1
(15) COMPRESSOR CYLINDER 3T1B100480 3T1B10048-0 $150.02 1
(16) COMPRESSOR HOUSING 3T1B100490 3T1B10049-0 $385.42 1
(17) COMPRESSOR HOUSING GASKET 3T1100540M 3T1-10054-0 $5.29 1
(18) OIL SEAL 25-45-7 3T5100410M 3T5-10041-0 $13.26 1
(19) BOLT 9101035625M 910103-5625 $1.47 4
(20) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(21) DRIVEN PULLEY 3T1100620M 3T1-10062-0 $57.48 1
(22) MAGNETO NUT (10P-1.25) 309001320M 309-00132-0 DRIVEN PULLEY $1.61 1
(23) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 1
(24) BOLT 9101037835M 910103-7835 $2.22 4
(25) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(26) DRIVE PULLEY 3T1100600M 3T1-10060-0 $176.70 1
(27) DRIVE BELT 3T1100610M 3T1-10061-0 $44.14 1
(28) AIR FILTER ASSY 3GF101300M 3GF-10130-0 $20.82 1
(29) HOSE 98AT130060M 98AT130-055 AIR COMPRESSOR-AIR FILTER $0.00 1 Sold Out View More Details
(30) HOSE 98AT130140M 98AT130-140 $0.00 1 Sold Out View More Details
(31) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
(32) BOLT 9101036612M 910103-6612 $1.16 1
