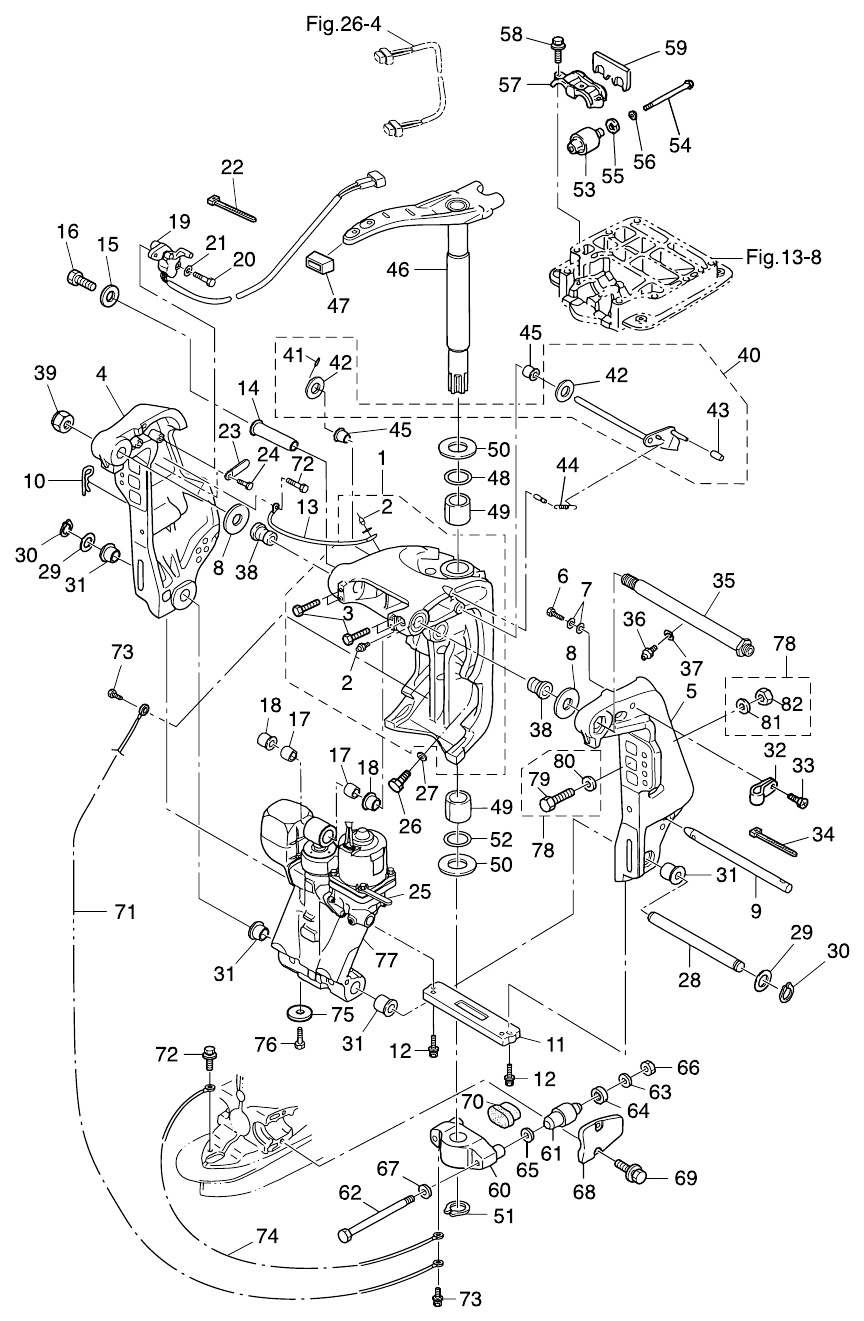

16. BRACKET

Click Here for Microfiche Usage Tip
(1) SWIVEL BRACKET ASSY(2) GREASE FITTING(2) GREASE FITTING(3) BOLT(4) CLAMP BRACKET (R)(5) CLAMP BRACKET (L)(6) BOLT(7) WASHER(8) WASHER 25.7-50-1(8) WASHER 25.7-50-1(9) THRUST ROD(10) PIN(11) ANODE(12) BOLT(12) BOLT(13) GROUND L=130(14) CYLINDER PIN (UPPER)(15) WASHER 6.5-23-1.5(16) BOLT(17) BUSHING 18-24-19(17) BUSHING 18-24-19(18) BUSHING 18-20-20.5(18) BUSHING 18-20-20.5(19) TRIM SENSOR L=1700(20) BOLT(21) WASHER 6-16-1.5(22) BAND 100(23) CLAMP 6.5-47.5P(24) BOLT 6-12(25) CLAMP 6.5-47.5P(26) BOLT 12-20 P1.75(27) WASHER(28) CYLINDER PIN (LOWER)(29) WASHER 22.6-30-2(29) WASHER 22.6-30-2(30) C-RING D=22(30) C-RING D=22(31) BUSHING 22-25.4-23.5(31) BUSHING 22-25.4-23.5(31) BUSHING 22-25.4-23.5(31) BUSHING 22-25.4-23.5(32) CLAMP 6.5-14L(33) SCREW(34) BAND 104(35) SWIVEL BRACKET SHAFT ASSY(36) GREASE FITTING(37) WASHER(38) BUSHING 25.6-28.6-40(38) BUSHING 25.6-28.6-40(39) NYLON NUT 7/8-14(40) TILT STOPPER ASSY(41) SPRING PIN 3.5-16(42) WASHER 10.5-18-2(42) WASHER 10.5-18-2(43) TILT STOPPER GRIP(44) TILT STOPPER SPRING(45) COLLAR 10.2-12-12(45) COLLAR 10.2-12-12(46) STEERING SHAFT ASSY(47) STEERING ARM DAMPER L=40(48) SEAL RING(49) BUSHING 32-40-45(49) BUSHING 32-40-45(50) THRUST PLATE (UPPER)(50) THRUST PLATE (UPPER)(51) C-RING D=32(52) O-RING 4.5-32(53) RUBBER MOUNT (UPPER)(54) BOLT(55) DAMPER 21-36-5(56) WASHER 12.2-36-3(57) MOUNT HOLDING PLATE (UPPER)(58) BOLT(59) DAMPER (UPPER)(60) MOUNT BRACKET(61) RUBBER MOUNT (LOWER)(62) BOLT(63) WASHER 13-34-3(64) DAMPER 21-36-5(65) WASHER 12.2-25-2(66) NUT 12-P1.5(67) WASHER(68) MOUNT HOLDING PLATE (LOWER)(69) BOLT 8-25(70) DAMPER (LOWER)(71) GROUND L=210(72) BOLT(72) BOLT(73) BOLT(73) BOLT(74) GROUND L=110(75) ANODE(76) BOLT(77) PTT ASSY(78) RIGGING BOLT SET(78) RIGGING BOLT SET(79) BOLT 12-105 P1.25(80) WASHER 13-34-3(81) WASHER(82) NUT 12-P1.25



Parts List
2013 :: 115 HP :: TLDI Nissan NSD115A2 :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET ASSY 3E0Q623133 3E0Q62313-3 $463.29 1 Sold Out View More Details
(2) GREASE FITTING 344671771M 344-67177-0 $2.56 4 Sold Out View More Details
(3) BOLT 9101E35612M 910103-5612 $1.07 4
(4) CLAMP BRACKET (RIGHT) 3E0Q621120 3E0Q62112-0 STARBOARD SIDE $0.00 1 Sold Out View More Details
(5) CLAMP BRACKET (LEFT) 3E0Q621131 3E0Q62113-1 PORT SIDE $183.61 1
(6) BOLT 9102E31020M 9102E3-1020 $3.11 1
(7) WASHER 9402E31000M 940213-1000 $1.04 2
(8) WASHER 25.7-50-1 3E0621161M 3E0621160M $1.52 2
(9) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(10) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(11) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(12) BOLT 9101036630M 910103-6630 $1.30 2
(13) GROUND CABLE 398623961M 398-62396-1 SWIVEL BRACKET-CLAMP BRACKET $5.75 1 Sold Out View More Details
(14) CYLINDER PIN (UPPER) 3C8770711M 3C8-77071-1 $10.81 1 Sold Out View More Details
(15) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 1
(16) BOLT 9101E30612M 9101E3-0612 $0.84 1
(17) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.07 2
(18) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.31 2
(19) TRIM SENSOR 3T1725740M 3T1-72574-0 $184.05 1
(20) BOLT 9101E30620M 9101E3-0620 $1.04 2
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(22) LEAD WIRE BAND 100 353843980M 353-84398-0 $0.84 2
(23) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(24) BOLT 9101030612M 910113-0612 $0.84 1
(25) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(26) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.76 2 Sold Out View More Details
(27) WASHER 9401031200M 940103-1200 $0.51 2
(28) CYLINDER PIN (LOWER) 3E0771011M 3E0-77101-0 $49.09 1
(29) WASHER 22.6-30-2 346624121M 346-62412-1 $2.08 1
(30) C-RING D=22 9451032200M 945103-2200 $1.85 2
(31) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.31 4
(32) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(33) SCREW 9215035612M 921503-5612 $0.86 1
(34) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(35) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 $107.87 1 Sold Out View More Details
(36) GREASE FITTING 344671771M 344-67177-0 $2.56 1 Sold Out View More Details
(37) WASHER 9401030600M 940103-0600 $0.70 1
(38) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.31 2
(39) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(40) TILT STOPPER ASSY 3Y9624311M 3E0S62431-1 $53.45 1
(41) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(42) WASHER 10.5-18-2 3T1613150M 3T1-61315-0 $0.00 2 Sold Out View More Details
(43) TILT STOPPER GRIP 3Y9624330M 3Y9-62433-0 $3.74 1
(44) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.63 1 Sold Out View More Details
(45) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(46) STEERING SHAFT ASSY 3C7Q620101 3C7Q62010-1 $0.00 1 Sold Out View More Details
(47) STEERING ARM DAMPER B 3B7620960M 3B7-62096-0 $23.01 1 Sold Out View More Details
(48) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(49) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $7.59 2
(50) THRUST PLATE 3B7624231M 3B7-62423-1 $3.13 2
(51) C-RING D=32 9451033200M 945103-3200 $2.01 1
(52) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.00 1
(53) RUBBER MOUNT (UPPER) 3C7613010M 3C7-61301-0 $71.35 2
(54) BOLT 3C7613072M 3C7-61307-2 $8.19 2
(55) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(56) WASHER 12.2-36-3 3C7613350M 3C7-61335-0 $3.27 2
(57) MOUNT HOLDING PLATE (UPPER) 3C7613411M 3C7-61341-1 $26.50 1
(58) BOLT 9101E35835M 910113-5835 $3.28 3
(59) DAMPER (UPPER) 3C7613390M 3C7-61339-0 $15.46 1
(60) MOUNT BRACKET 3C7Q614112 3C7Q61411-2 $0.00 1 Sold Out View More Details
(61) RUBBER MOUNT (LOWER) 353613022M 353613022M $55.20 2
(62) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $15.81 2
(63) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(64) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(65) WASHER 12.2-25-2 353613151M 353-61315-1 $3.20 2
(66) NUT 12-P1.5 3B7613240M 3B7-61324-0 $4.78 2
(67) WASHER 9402E31200M 940203-1200 $2.10 2
(68) MOUNT HOLDING PLATE (LOWER) 3B7Q613420 3B7Q61342-0 $27.54 2
(69) BOLT 8-25 3N4613430M 3N4-61343-0 $1.62 4
(70) RUBBER DAMPER (LOWER) 3C7613360M 3C7-61336-0 $11.02 1
(71) GROUND CABLE 3C8623961M 3C8-62396-0 MOUNT BRACKET-SWIVEL BRACKET $4.56 1
(72) BOLT 9101E35612M 910103-5612 $1.07 1
(73) BOLT 9101035612M 910103-5612 $1.07 2
(74) GROUNG CABLE 3A3623961M 3A3-62396-0 MOUNT BRACKET-DRIVE SHAFT HOUSING $17.85 1
(75) ANODE 369602181M 369-60218-1 $7.42 1
(76) BOLT 9101035616M 910103-5616 $1.15 1
(77) POWER TRIM & TILT 3T1771501M 3T1-77150-1 SEE FIG.17 $2,971.55 1
(78) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $47.55 1
(79) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(80) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(81) WASHER 9401031200M 940103-1200 $0.51 4
(82) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
