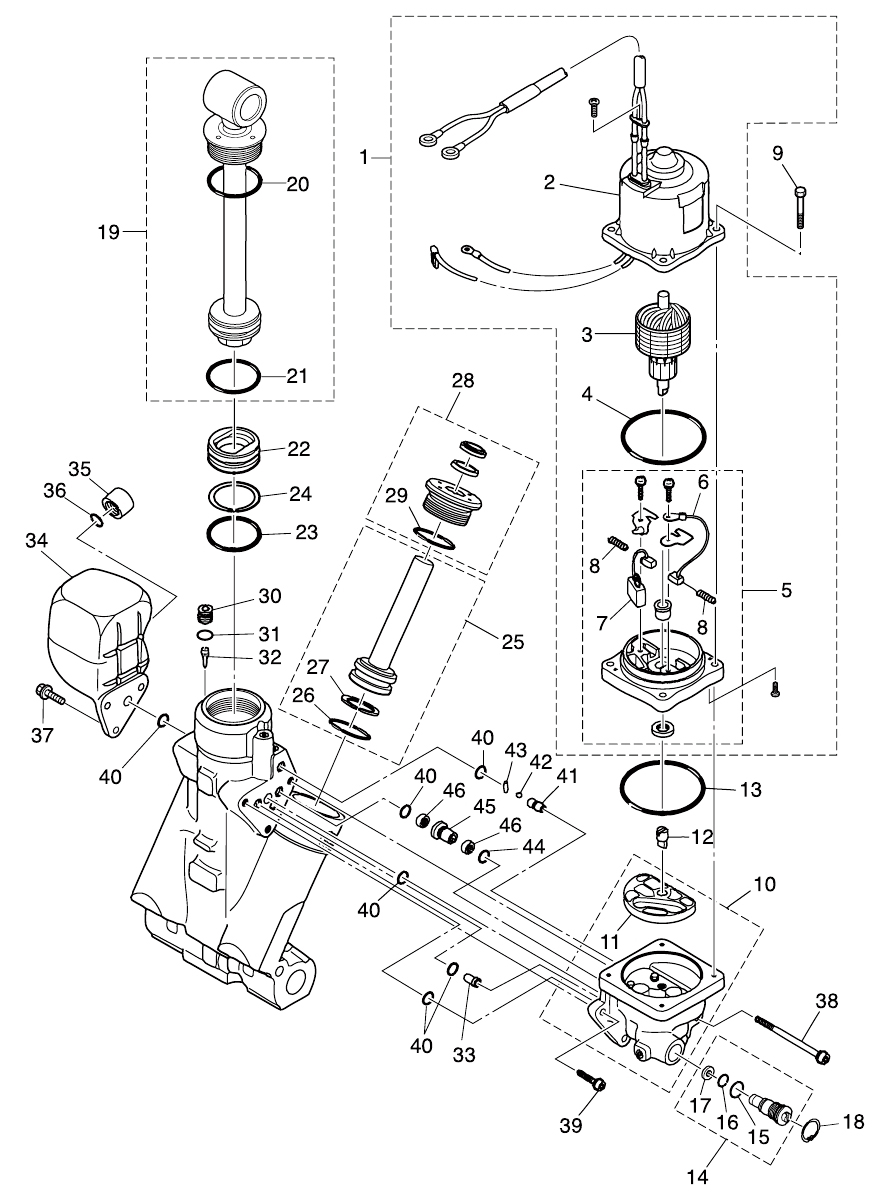

18. POWER TRIM & TILT

Click Here for Microfiche Usage Tip
(1) MOTOR ASSY(2) YOKE ASSY(3) ARMATURE ASSY(4) O-RING(5) MOTOR BRACKET ASSY(6) BRUSH(7) BREAKER(8) BRUSH SPRING(8) BRUSH SPRING(9) BOLT(10) PUMP(11) FILTER(12) COUPLING(13) O-RING 1.8-69.6(14) MANUAL VALVE(15) O-RING(16) O-RING(17) BACK-UP RING(18) C-RING(19) PISTON ROD ASSY(20) O-RING(21) O-RING(22) FREE PISTON(23) O-RING(24) BACK-UP RING(25) TRIM PISTON ASSY(26) O-RING(27) BACK-UP RING(28) ROD GUIDE SUB-ASSY(29) O-RING(30) PLUG(31) O-RING(32) FILTER(33) ORIFICE(34) RESERVE TANK(35) CAP(36) O-RING(37) BOLT(38) BOLT(39) BOLT(40) O-RING(40) O-RING(40) O-RING(40) O-RING(40) O-RING(41) ORIFICE(42) BALL(43) PIN(44) O-RING(45) VALVE SEAT(46) FILTER(46) FILTER

Displaying 1 to 46 (of 46 products)

Parts List
2013 :: 75 HP :: TLDI Tohatsu MD75C2 :: POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR 3T9771800M 3T9-77180-0 $477.03 1
(2) YOKE ASSY 3T9771950M 3T9-77195-0 $0.00 1 Sold Out View More Details
(3) ARMATURE ASSY 3E0771900M 3E0-77190-0 $0.00 1 Sold Out View More Details
(4) MOTOR O-RING 353771821M 353-77182-1 $8.61 1
(5) MOTOR BRACKET 3E0771920M 3E0-77192-0 $201.81 1
(6) BRUSH 3E0771830M 3E0-77183-0 $82.12 1
(7) BREAKER 353771910M 353-77191-0 $0.00 1 Sold Out View More Details
(8) BRUSH SPRING 3E0771840M 3E0-77184-0 $0.00 2 Sold Out View More Details
(9) BOLT 3E0771991M 3E0-77199-0 $8.05 4
(10) PUMP 3E0774301M 3E0-77430-0 $274.51 1
(11) FILTER B 3E0774340M 3E0-77434-0 $24.36 1
(12) COUPLING PUMP 3E0771630M 3E0-77163-0 $10.27 1
(13) O-RING 1.8-69.6 3B7771670M 3B7-77167-0 $6.79 1
(14) MANUAL VALVE 3E0771761M 3E0-77176-1 $76.23 1
(15) O-RING 3B7774110M 3B7-77411-0 $5.12 1
(16) PACKING 3E0774070M 3E0-77407-0 $8.05 1
(17) BACK-UP RING 3E0774080M 3E0-77408-0 $3.41 1
(18) C-RING 9450E31800M 9450E3-1800 $0.00 1 Sold Out View More Details
(19) PISTON ROD ASSY (TILT) 3E0773651M 3E0-77365-1 $300.04 1
(20) O-RING 3E0773830M 3E0-77383-0 $1.80 1
(21) O-RING 3B7773750M 3B7-77375-0 $3.22 1
(22) FREE PISTON 3B7773771M 3B7-77377-1 $0.00 1 Sold Out View More Details
(23) O-RING 3B7773750M 3B7-77375-0 $3.22 1
(24) BACK-UP RING 3B7773760M 3B7-77376-0 $7.87 1
(25) TRIM PISTON ASSY 3E0773880M 3E0-77388-0 $89.85 2 Sold Out View More Details
(26) O-RING 3B7773920M 3B7-77392-0 $2.95 2
(27) BACK-UP RING 3B7773930M 3B7-77393-0 $7.39 2
(28) ROD GUIDE SUB ASSY (TRIM) 3E0773950M 3E0-77395-0 $69.06 2
(29) O-RING 3E0773980M 3E0-77398-0 $5.06 2
(30) PLUG 3E0774721M 3E0-77472-1 $10.75 1
(31) O-RING 3B7771790M 3B7-77179-0 $4.12 1
(32) FILTER 3E0774750M 3E0-77475-0 $9.66 1
(33) ORIFICE 3E0774790M 3E0-77479-0 $7.22 1
(34) RESERVOIR TANK 3E0771650M 3E0-77165-0 $87.18 1
(35) CAP 3E0771680M 3E0-77168-0 $6.42 1
(36) O-RING 3E0771690M 3E0-77169-0 $2.25 1
(37) BOLT 3E0771591M 3E0771591M $0.00 3 Sold Out View More Details
(38) BOLT 3E0774311M 3E0-77431-1 $7.31 1
(39) BOLT 3E0774321M 3E0-77432-1 $0.00 2 Sold Out View More Details
(40) O-RING 3E0771670M 3E0-77167-0 $3.43 6
(41) ORIFICE 3E0775570M 3E0-77557-0 $24.39 1
(42) BALL 3E0775580M 3E0-77558-0 $0.98 1
(43) PIN 3E0775590M 3E0-77559-0 $3.60 1
(44) O-RING 3B7771690M 3B7-77169-0 $5.38 1
(45) VALVE SEAT 3E0774530M 3E0-77453-0 $27.74 1
(46) FILTER 3E0774560M 3E0-77456-0 $7.31 2
Displaying 1 to 46 (of 46 products)
