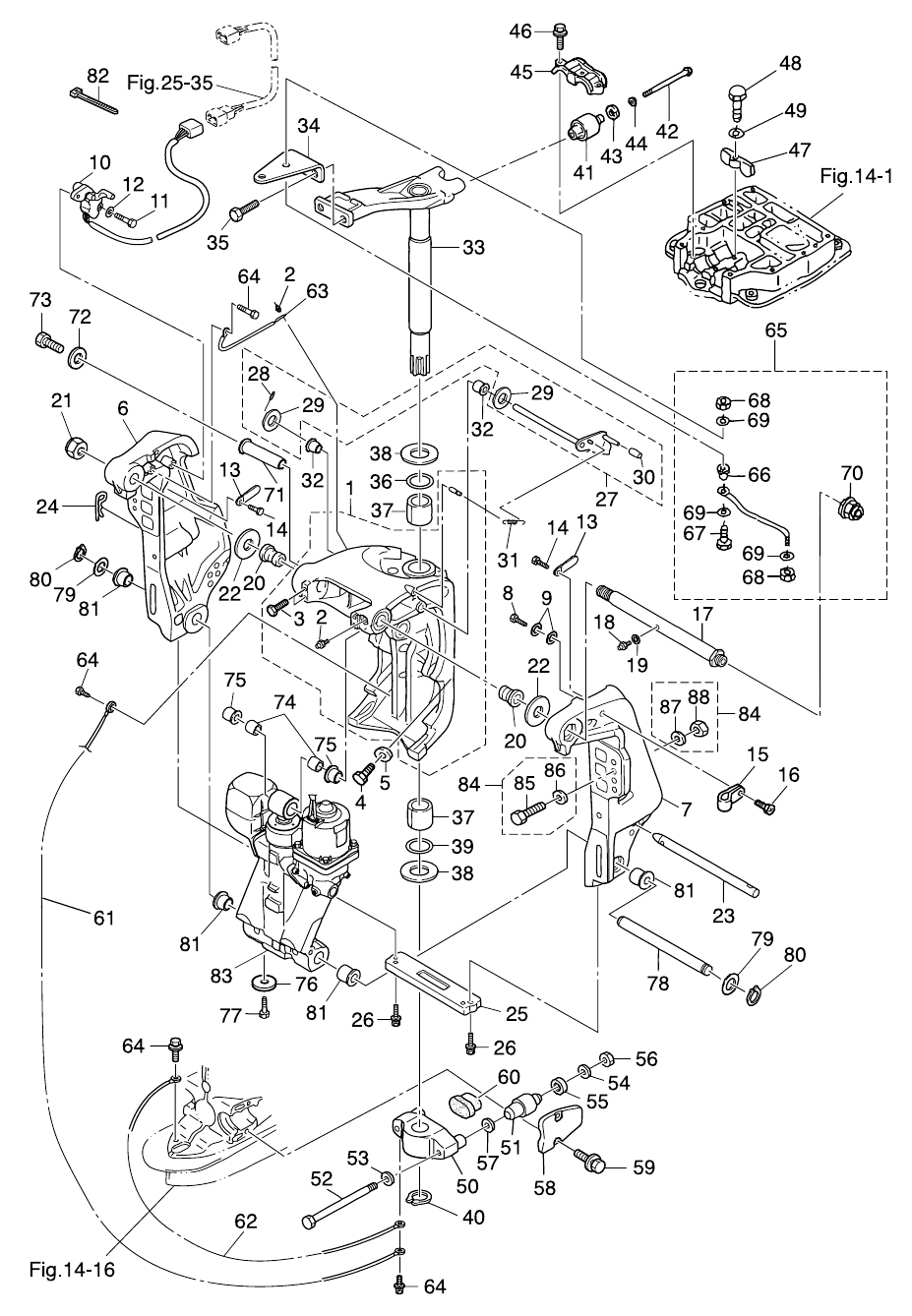

17. BRACKET

Click Here for Microfiche Usage Tip
(1) SWIVEL BRACKET ASSY(2) GREASE FITTING(2) GREASE FITTING(3) BOLT(4) BOLT 12-20 P1.75(5) WASHER(6) CLAMP BRACKET (R)(7) CLAMP BRACKET (L)(8) BOLT(9) WASHER(10) TRIM SENSOR L=1700(11) BOLT(12) WASHER 6-16-1.5(13) CLAMP 6.5-47.5P(13) CLAMP 6.5-47.5P(14) BOLT(14) BOLT(15) CLAMP 6.5-14L(16) SCREW(17) SWIVEL BRACKET SHAFT ASSY(18) GREASE FITTING(19) WASHER(20) BUSHING 25.6-28.6-40(20) BUSHING 25.6-28.6-40(21) NYLON NUT 7/8-14(22) WASHER 25.7-50-1(22) WASHER 25.7-50-1(23) THRUST ROD(24) PIN(25) ANODE(26) BOLT(26) BOLT(27) TILT STOPPER ASSY(28) SPRING PIN 3.5-16(29) WASHER 10.5-18-2(29) WASHER 10.5-18-2(30) TILT STOPPER GRIP(31) TILT STOPPER SPRING(32) COLLAR 10.2-12-12(32) COLLAR 10.2-12-12(33) STEERING SHAFT ASSY(34) STEERING HOOK PLATE(35) BOLT(36) SEAL RING(37) BUSHING 32-40-45(37) BUSHING 32-40-45(38) THRUST PLATE (UPPER)(38) THRUST PLATE (UPPER)(39) O-RING 4.5-32(40) C-RING(41) RUBBER MOUNT (UPPER)(42) BOLT 7/16-115(43) DAMPER 21-36-5(44) WASHER 11.5-32-3(45) MOUNT HOLDING PLATE (UPPER)(46) BOLT(47) DAMPER (UPPER)(48) BOLT(49) WASHER 6-16-1.5(50) MOUNT BRACKET(51) RUBBER MOUNT (LOWER)(52) BOLT(53) WASHER 12.2-25-2(54) WASHER 13-34-3(55) DAMPER 21-36-5(56) NUT 12-P1.5(57) WASHER(58) MOUNT HOLDING PLATE (LOWER)(59) BOLT 8-25(60) DAMPER (LOWER)(61) GROUND L=210(62) GROUND L=110(63) GROUND L=130(64) BOLT(64) BOLT(64) BOLT(64) BOLT(65) DRAG LINK ASSY(66) SPACER(67) BOLT 3/8-50(68) NYLON NUT 3/8-24UNF(68) NYLON NUT 3/8-24UNF(69) WASHER 9.6-18-2(69) WASHER 9.6-18-2(69) WASHER 9.6-18-2(70) SEAL RING(71) CYLINDER PIN (UPPER)(72) WASHER 6.5-23-1.5(73) BOLT(74) BUSHING 18-24-19(75) BUSHING 18-20-20.5(75) BUSHING 18-20-20.5(76) ANODE(77) BOLT(78) CYLINDER PIN (LOWER)(79) WASHER 22.6-30-2(79) WASHER 22.6-30-2(80) C-RING(80) C-RING(81) BUSHING 22-25.4-23.5(81) BUSHING 22-25.4-23.5(81) BUSHING 22-25.4-23.5(81) BUSHING 22-25.4-23.5(82) BAND 104(83) PTT ASSY(84) RIGGING BOLT SET(84) RIGGING BOLT SET(85) BOLT 12-105 P1.25(86) WASHER 13-34-3(87) WASHER(88) NUT 12-P1.25

Displaying 1 to 87 (of 87 products)

Parts List
2013 :: 75 HP :: TLDI Tohatsu MD75C2 :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET ASSY 3E0Q623133 3E0Q62313-3 $495.72 1 Sold Out View More Details
(2) GREASE FITTING 344671771M 344-67177-0 $2.74 4
(3) BOLT 9101E35612M 910103-5612 $1.15 4
(4) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.95 2 Sold Out View More Details
(5) WASHER 9401031200M 940103-1200 $0.53 2
(6) CLAMP BRACKET (RIGHT) 3E0Q621120 3E0Q62112-0 STARBOARD SIDE $0.00 1 Sold Out View More Details
(7) CLAMP BRACKET (LEFT) 3E0Q621131 3E0Q62113-1 PORT SIDE $196.47 1
(8) BOLT 9102E31020M 9102E3-1020 $3.32 1
(9) WASHER 9402E31000M 940213-1000 $1.11 2
(10) TRIM SENSOR 3T1725740M 3T1-72574-0 $196.93 1
(11) BOLT 9101E30620M 9101E3-0620 $1.11 2 Sold Out View More Details
(12) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 2
(13) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 2
(14) BOLT 9101E30612M 9101E3-0612 $0.90 2
(15) CLAMP 6.5-14L 345069150M 345-06915-0 $4.95 1
(17) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 BRACKET BOLT $115.41 1
(18) GREASE FITTING 344671771M 344-67177-0 $2.74 1
(19) WASHER 9401030600M 940103-0600 $0.75 1
(20) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.48 2
(21) NYLON NUT 7/8 346621241M 346-62124-0 $22.63 1
(22) WASHER 25.7-50-1 3FW621160M 3FW-62116-0 $1.85 2 Sold Out View More Details
(23) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(24) R-PIN D=10 3B7621291M 3B7-62129-1 $11.56 1
(25) ANODE 3C7602182M 3C7-60218-2 $21.23 1
(26) BOLT 9101036630M 910103-6630 $1.39 2
(27) TILT STOPPER ASSY 3Y9624311M 3E0S62431-1 $57.19 1
(28) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.90 1
(29) WASHER 10.5-18-2 3T1613150M 3T1-61315-0 $0.00 2 Sold Out View More Details
(30) TILT STOPPER GRIP 3Y9624330M 3Y9-62433-0 $4.00 1
(31) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.95 1
(32) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.18 2
(33) STEERING SHAFT ASSY 3FWQ620101 3FWQ62010-1 $0.00 1 Sold Out View More Details
(34) STEERING HOOK PLATE 3FW838300M 3FW-83830-0 $34.13 1
(35) BOLT 9101031030M 910103-1030 $2.68 2
(36) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(37) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $8.12 2
(38) THRUST PLATE (UPPER) 3FW624230M 3FW-62423-0 $3.97 2 Sold Out View More Details
(39) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.22 1
(40) C-RING D=32 9451033200M 945103-3200 $2.14 1
(41) RUBBER MOUNT (UPPER) 3B7613010M 3B7-61301-0 $76.34 2 Sold Out View More Details
(42) BOLT 7/16-115 3B7613072M 3B7-61307-2 $10.82 2
(43) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(44) WASHER 11.5-32-3 3B7613350M 3B7-61335-0 $3.22 2
(45) MOUNT HOLDING PLATE (UPPER) 3B7613411M 3B7-61341-1 $47.15 1
(46) BOLT 9101E35835M 910113-5835 $3.51 3
(47) DAMPER (UPPER) 3B7613390M 3B7-61339-0 $7.11 1
(48) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $1.01 1
(49) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 1
(50) MOUNT BRACKET 3C7Q614112 3C7Q61411-2 $0.00 1 Sold Out View More Details
(51) RUBBER MOUNT (LOWER) 353613022M 353613022M $59.06 2
(52) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $16.91 2
(53) WASHER 12.2-25-2 353613151M 353-61315-1 $3.43 2
(54) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 2
(55) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(56) NUT 12-P1.5 3B7613240M 3B7-61324-0 $5.12 2
(57) WASHER 9402E31200M 940203-1200 $2.25 2
(58) MOUNT HOLDING PLATE (LOWER) 3B7Q613420 3B7Q61342-0 $29.47 2
(59) BOLT 8-25 3N4613430M 3N4-61343-0 $1.73 4
(60) RUBBER DAMPER (LOWER) 3C7613360M 3C7-61336-0 $11.79 1
(61) GROUND CABLE 3C8623961M 3C8-62396-0 MOUNT BRACKET-SWIVEL BRACKET $4.89 1 Sold Out View More Details
(62) GROUNG CABLE 3A3623961M 3A3-62396-0 MOUNT BRACKET-DRIVE SHAFT HOUSING $19.09 1
(63) GROUND CABLE 398623961M 398-62396-1 SWIVEL BRACKET-CLAMP BRACKET-R $6.15 1
(64) BOLT 9101035612M 910103-5612 $1.15 4 Sold Out View More Details
(65) DRAG LINK ASSY 3FW849050M 3FW-84905-0 $172.92 1
(66) SPACER 3FW849140M 3FW-84914-0 $8.84 1
(67) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $12.08 1
(68) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 2
(69) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 3
(70) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.74 1
(71) CYLINDER PIN (UPPER) 3C8770711M 3C8-77071-1 $11.56 1
(72) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.33 1
(73) BOLT 9101E30612M 9101E3-0612 $0.90 1
(74) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.21 2
(75) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.48 2
(76) ANODE 369602181M 369-60218-1 $7.94 1 Sold Out View More Details
(77) BOLT 9101035616M 910103-5616 $1.22 1
(78) CYLINDER PIN (LOWER) 3E0771011M 3E0-77101-0 $52.53 1
(79) WASHER 22.6-30-2 346624121M 346-62412-1 $2.24 1
(80) C-RING D=22 9451032200M 945103-2200 $1.98 2
(81) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.48 4
(82) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(83) POWER TRIM & TILT 3T9771501M 3T9-77150-1 SEE FIG.18 $2,636.32 1
(84) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $50.88 1
(85) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.78 4
(86) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 4
(87) WASHER 9401031200M 940103-1200 $0.53 4
(88) NUT P1.25 3C7621391M 3C7-62139-1 $1.73 4
Displaying 1 to 87 (of 87 products)
