11. ELECTRIC PARTS (STARTER MOTOR) (1)

Click Here for Microfiche Usage Tip

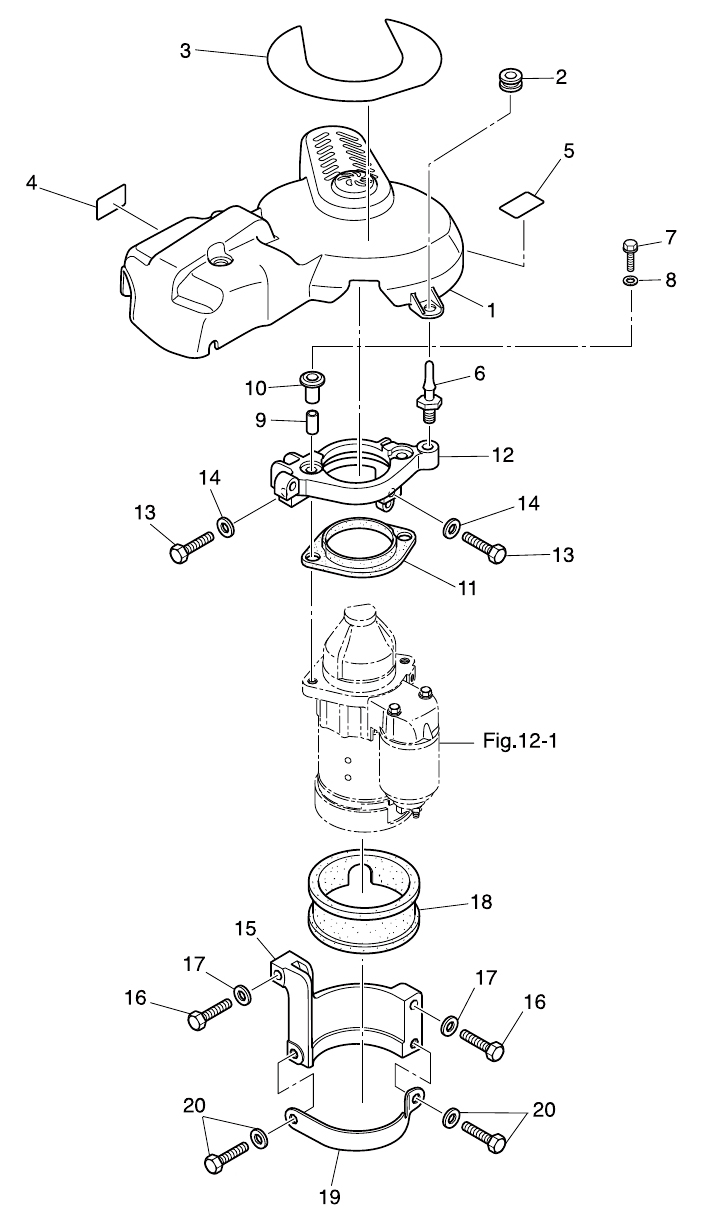

(1) RING GEAR COVER(2) GROMMET 16-2.5(3) CAUTION DECAL (B)(4) FUSE DECAL(5) SPARK PLUG DECAL (IZFR6Q)(6) HOOK(7) BOLT(8) WASHER 8.5-24-1.5(9) SPACER 8.4-12-21.5(10) STARTER MOTOR MOUNT(11) STARTER MOTOR MOUNT(12) STARTER MOTOR BRACKET(13) BOLT(13) BOLT(14) WASHER(14) WASHER(15) STARTER MOTOR BRACKET(16) BOLT(16) BOLT(17) WASHER(17) WASHER(18) DAMPER(19) STARTER MOTOR BAND(20) BOLT(20) BOLT



Parts List
2013 :: 75 HP :: TLDI Tohatsu MD75C2 :: ELECTRIC PARTS (STARTER MOTOR) (1)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RING GEAR COVER 3FW063010M 3FW-06301-0 $31.40 1
(2) GROMMET 16-2.5 3T1670050M 3T1-67005-0 $2.16 5
(3) CAUTION DECAL B 3T1721810M 3T1-72181-0 $0.00 1 Sold Out View More Details
(4) FUSE DECAL 3Y9721940M 3Y9-72194-0 $1.55 1
(5) SPARK PLUG DECAL (IZFR6Q) 3FW720260M 3FW-72026-0 $1.44 1
(6) RING GEAR COVER HOOK 1E0360560M 1E0-36056-0 CYLINDER STARTER BRACKET / ELECTRIC BRACKET $1.85 5
(7) BOLT 9101030840M 910103-0840 $3.17 2
(8) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(9) SPACER 8.4-12-21.5 3C7760031M 3C7-76003-1 $2.56 2
(10) STARTER MOTOR MOUNT A 3C7760040M 3C7-76004-0 $2.07 2
(11) STARTER MOTOR MOUNT 3FW760050M 3FW-76005-0 $8.74 1
(12) STARTER MOTOR BRACKET 3FWB760110 3FWB76011-0 $46.76 1
(13) BOLT 9161F40845M 9161F4-0845 $0.00 2 Sold Out View More Details
(14) WASHER 9401030800M 940113-0800 $0.84 2
(15) STARTER MOTOR BRACKET 3FWB760060 3FWB76006-0 $46.47 1
(16) BOLT 9161F40845M 9161F4-0845 $0.00 2 Sold Out View More Details
(17) WASHER 9401030800M 940113-0800 $0.84 2
(18) DAMPER 3FW760070M 3FW-76007-0 $10.77 1
(19) STARTER MOTOR BAND 3FW760090M 3FW-76009-0 $15.85 1
(20) BOLT 9101035820M 910103-5820 $1.71 2 Sold Out View More Details
