8. VAPOR SEPARATOR & FUEL LINE

Click Here for Microfiche Usage Tip

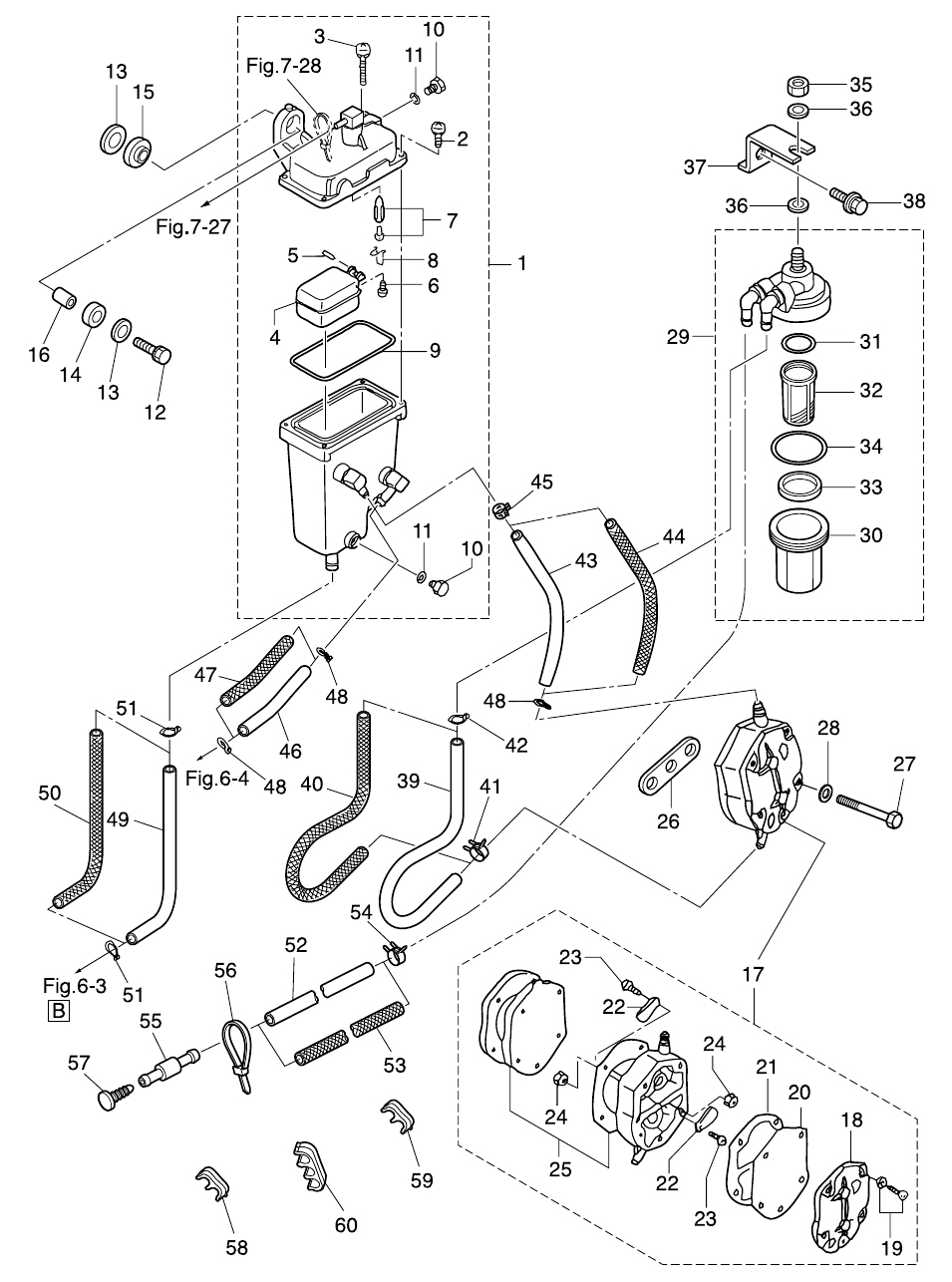

(1) VAPOR SEPARATOR ASSY(2) SCREW(3) SCREW(4) FLOAT(5) FLOAT ARM PIN(6) SCREW(7) FLOAT VALVE ASSY(8) CLIP(9) O-RING(10) DRAIN SCREW(10) DRAIN SCREW(11) O-RING(11) O-RING(12) BOLT(13) WASHER 6.5-21-1(13) WASHER 6.5-21-1(14) MOUNT 8.5-14-2.5(15) RUBBER MOUNT 8.5-14-2.5(16) SPACER 6.2-9-15.7(17) FUEL PUMP ASSY(18) PUMP COVER(19) SCREW(20) PUMP DIAPHRAGM(21) DIAPHRAGM GASKET(22) CHECK VALVE(22) CHECK VALVE(23) SCREW(23) SCREW(24) NUT(24) NUT(25) DIAPHRAGM GASKET SET(26) GASKET(27) BOLT(28) WASHER(29) FUEL FILTER ASSY(30) CUP(31) O-RING(32) FILTER(33) FLOAT(34) O-RING(35) NUT(36) WASHER(36) WASHER(37) PLATE(38) BOLT(39) FUEL HOSE L=280(40) FUEL HOSE W/PROTECTOR L=280(41) CLIP o11.3(42) CLIP o10(43) HOSE(44) FUEL HOSE W/PROTECTOR L=210(45) CLIP o9.4(46) HOSE(47) FUEL HOSE W/PROTECTOR L=75(48) CLIP o10(48) CLIP o10(48) CLIP o10(49) HOSE(50) FUEL HOSE W/PROTECTOR L=145(51) CLIP o12(51) CLIP o12(52) HOSE(53) FUEL HOSE W/PROTECTOR L=1200(54) CLIP o11.3(55) NIPPLE(56) BAND 104(57) PLUG(58) CLAMP o10(59) CLAMP o10(60) CLAMP o10



Parts List
2013 :: 75 HP :: TLDI Tohatsu MD75C2 :: VAPOR SEPARATOR & FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) VAPOR SEPARATOR ASSY 3T5101501M 3T5101500M V.S.T $200.01 1
(2) SCREW 9225316414M 922531-6414 $0.47 3
(3) SCREW 9215036430M 921503-6430 $0.00 1 Sold Out View More Details
(4) FLOAT 3T5032300M 3T5-03230-0 $24.02 1
(5) ARM PIN FLOAT 3F3032320M 3F3-03232-0 $2.19 1
(6) SCREW 9215030408M 921503-0408 $0.75 1
(7) FLOAT VALVE 3R3032390M 3R3-03239-0 VALVE PIN $11.64 1
(8) CLIP 344032440M 344-03244-0 $3.51 1
(9) O-RING 3T5032350M 3T5-03235-0 $5.34 1
(10) DRAIN SCREW 345032920M 345-03292-0 UPPER & LOWER $3.91 2
(11) O-RING 336032930M 336-03293-0 UPPER & LOWER $1.79 2
(12) BOLT 9101030630M 910103-0630 $1.21 2
(13) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(14) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(15) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(16) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(17) FUEL PUMP 356040001M 356-04000-1 $88.09 1
(18) PUMP COVER 334040040M 334-04004-0 $16.82 1
(19) SCREW 9225F26528M 9225F2-6528 $0.69 3
(20) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(21) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(22) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(23) SCREW 9217220306M 921722-0306 $0.88 2
(24) NUT 9302220300M 930222-0300 $0.86 2
(25) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(26) GASKET 346049012M 346049012M FUEL PUMP $2.71 1
(27) BOLT 9101030640M 910103-0640 $1.59 2
(28) WASHER 9402030600M 940203-0600 $0.46 2
(29) FUEL FILTER 3T1022300M 3T1-02230-0 $54.10 1 Sold Out View More Details
(30) CUP 3B7022370M 3B7-02237-0 $7.34 1
(31) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(32) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(33) FLOAT 3T5022290M 3T5-02229-0 $6.84 1
(34) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(35) NUT 9301030800M 930103-0800 $1.99 1
(36) WASHER 9401030800M 940113-0800 $0.84 2
(37) FILTER PLATE 3T5022390M 3T5-02239-0 $3.97 1
(38) BOLT 9101035616M 910103-5616 $1.15 1
(39) FUEL HOSE L=280 3FW022110M 3FW-02211-0 FUEL FILTER-FUEL PUMP / STD $6.10 1
(40) FUEL HOSE W/PROTECTOR L=280 3FW021650M 3FW-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(41) CLIP ø11.3 345701141M 345-70114-1 FUEL PUMP SIDE $2.82 1
(42) CLIP ø10 338022150M 338-02215-0 FUEL FILTER SIDE $1.41 1
(43) FUEL PIPE B 98AB50210M 98AB-5-0210 FUEL PUMP-V.S.T / STD 98AB-501000 $11.41 1
(44) FUEL HOSE W/PROTECTOR L=210 3GB021650M 3GB-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(45) CLIP ø 9.5 3AB351430M 121-35143-0 V.S.T SIDE $1.30 1
(46) HOSE 98AB50075M 98AB-50-075 FFP-V.S.T / STD 98AB-501000 $11.41 1
(47) FUEL HOSE W/PROTECTOR L=75 3GA021650M 3GF-02135-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $6.10 1
(48) CLIP ø10 338022150M 338-02215-0 FFP-V.S.T & FUEL PUMP SIDE $1.41 3
(49) HOSE 98AB70145M 98AB-70-145 FFP-V.S.T / STD 98AB-701000 $13.44 1
(50) FUEL HOSE W/PROTECTOR L=145 3FW021700M 3FW-02170-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $6.70 1 Sold Out View More Details
(51) CLIP ø 12 3C7022150M 3C7-02215-0 FFP-V.S.T $1.41 2
(52) HOSE 98AB701200M 98AB-701200 CONNECTOR-FUEL FILTER / STD 98AB-701000 X2 $13.44 1
(53) FUEL HOSE W/PROTECTOR L=1200 3KD021701M 3KD-02170-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(54) CLIP ø11.3 345701141M 345-70114-1 FUEL FILTER SIDE $2.82 1
(55) FUEL HOSE NIPPLE 3T1600180M 3T1-60018-0 $4.38 1
(56) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(57) FUEL HOSE NIPPLE PLUG 3T1038130M 3T1-03813-0 $0.00 1 Sold Out View More Details
(58) CLAMP ø10 3T1069170M 3T1-06917-0 $0.00 1 Sold Out View More Details
(59) HOSE CLAMP 3T1069150M 3T1-06915-0 $1.24 2 Sold Out View More Details
(60) HOSE CLAMP 3U1069150M 3U1-06915-0 $2.94 3 Sold Out View More Details
