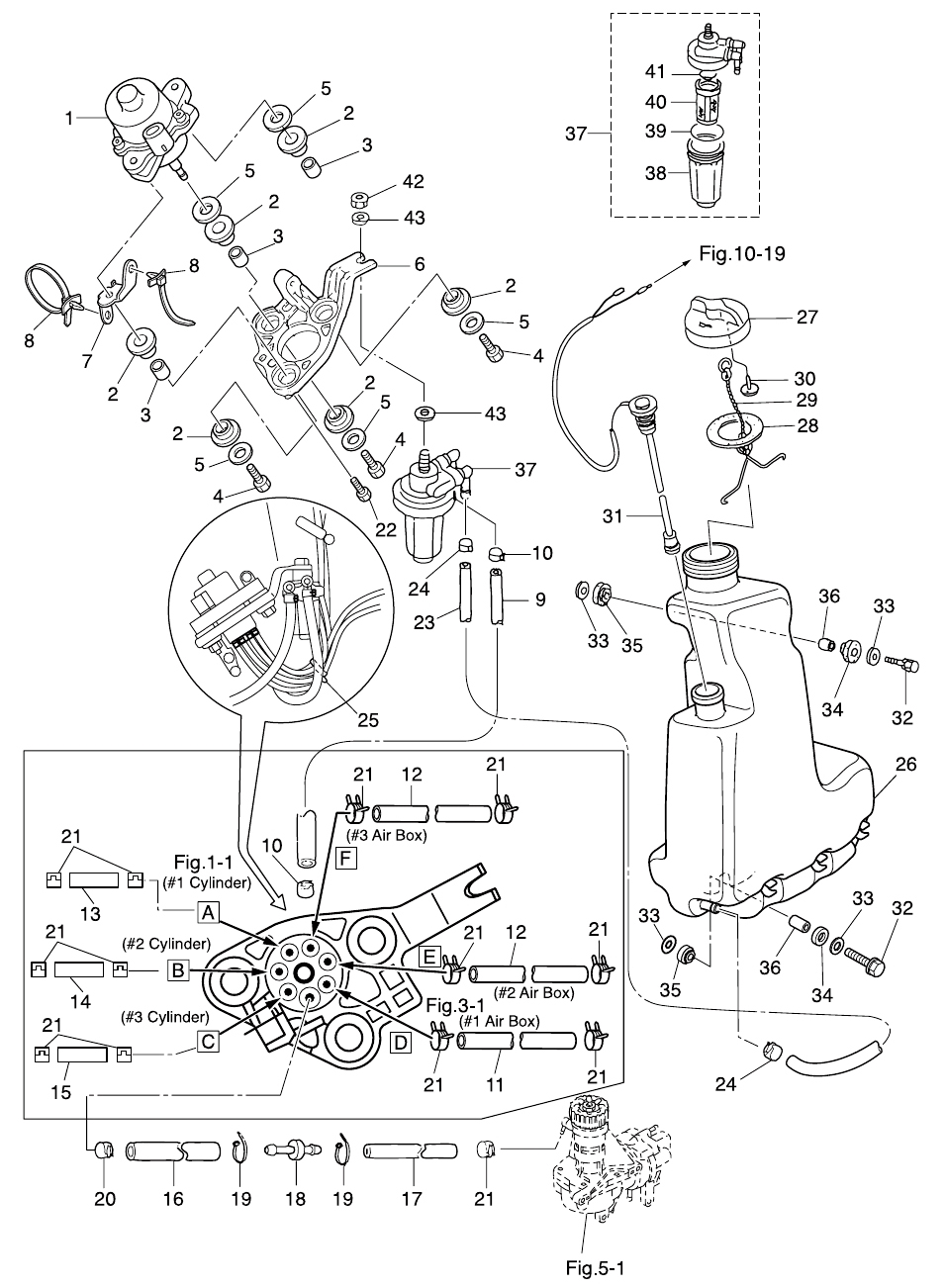

13. OIL PUMP

Click Here for Microfiche Usage Tip
(1) ELECTRIC OIL PUMP(2) MOUNT 12-18-2.5(2) MOUNT 12-18-2.5(2) MOUNT 12-18-2.5(2) MOUNT 12-18-2.5(2) MOUNT 12-18-2.5(2) MOUNT 12-18-2.5(3) SPACER 8.4-12-17(3) SPACER 8.4-12-17(3) SPACER 8.4-12-17(4) BOLT(4) BOLT(4) BOLT(5) WASHER 8.5-24-1.5(5) WASHER 8.5-24-1.5(5) WASHER 8.5-24-1.5(5) WASHER 8.5-24-1.5(5) WASHER 8.5-24-1.5(6) BRACKET(7) STAY(8) BAND 170(8) BAND 170(9) PIPE(10) CLIP o9.4(10) CLIP o9.4(11) PIPE(12) PIPE(12) PIPE(13) PIPE(14) PIPE(15) PIPE(16) PIPE(17) PIPE(18) JOINT(19) BAND 104(19) BAND 104(20) CLIP o7.8(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(21) CLIP o6.9(22) BOLT(23) PIPE(24) CLIP o9.4(24) CLIP o9.4(25) BAND 158(26) OIL TANK(27) OIL FILLER CAP(28) GASKET 36-52-2(29) CAP HOOK(30) OIL TANK CAP CHECK VALVE(31) OIL LEVEL SENSOR(32) BOLT(32) BOLT(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(33) WASHER 6.5-21-1(34) MOUNT 8.5-14-2.5(34) MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(35) RUBBER MOUNT 8.5-14-2.5(36) SPACER 6.2-9-15.7(36) SPACER 6.2-9-15.7(37) OIL FILTER ASSY(37) OIL FILTER ASSY(38) CUP(39) O-RING(40) FILTER(41) O-RING(42) NUT(43) WASHER(43) WASHER



Parts List
2013 :: 75 HP :: TLDI Nissan NSD75C2 :: OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ELECTRIC OIL PUMP 3T7090100M 3T7-09010-0 $383.64 1
(2) RUBBER MOUNT 12-18-2.5 345671130M 345-67113-0 $1.61 6
(3) SPACER 8.4-12-17 3C7671141M 3C7-67114-1 $2.31 3
(4) BOLT 9101030835M 910113-0835 $2.01 3
(5) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 5
(6) OIL PUMP BRACKET 3T7090720M 3T7-09072-0 $0.00 1 Sold Out View More Details
(7) STAY 3FY761740M 3FY-76174-0 $4.78 1 Sold Out View More Details
(8) LEAD WIRE BAND 170 3T1843980M 3T1-84398-0 $0.00 2 Sold Out View More Details
(9) PIPE 99AA60200M 99AA-6-0200 OIL FILTER-OIL PUMP / 99AA-6-1000 $12.80 1
(10) CLIP ø 9.5 3AB351430M 121-35143-0 OIL FILTER-OIL PUMP $1.30 2
(11) PIPE 99AA20560M 99AA-2-0560 OIL PUMP-#1AIR BOX / 99AA-2-1000 $13.60 1
(12) PIPE 99AA20380M 99AA-2-0380 OIL PUMP-#2 3AIR BOX / 99AA-2-1000 $13.60 2
(13) PIPE 99AA20395M 99AA-2-0395 OIL PUMP-#1CYLINDER / 99AA-2-1000 $13.60 1
(14) PIPE 99AA20275M 99AA-2-0275 OIL PUMP-#2CYLINDER / 99AA-2-1000 $13.60 1
(15) OIL PIPE 99AA20180M 99AA-2-0180 OIL PUMP-#3CYLINDER / 99AA-2-1000 $13.60 1
(16) OIL PIPE 99AA40040M 99AA-4-0040 99AA-4-1000 $11.51 1 Sold Out View More Details
(17) PIPE 99AA20465M 99AA-2-0465 99AA-2-1000 $13.60 1
(18) NIPPLE JOINT 3T7090760M 3T7-09076-0 REDUCER NIPPLE $0.00 1 Sold Out View More Details
(19) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(20) CLIP ø 7.8 151350020M 151-35002-0 $1.59 1
(21) CLIP ø 6.9 3B7090520M 3B7-09052-0 OIL PUMP / AIR COMPRESSOR $0.00 13 Sold Out View More Details
(22) BOLT 9101035630M 910113-5630 $1.15 2
(23) PIPE 99AA61150M 99AA-6-1150 OIL TANK-OIL FILTER / 99AA-6-1000 X2 $12.80 1
(24) CLIP ø 9.5 3AB351430M 121-35143-0 OIL TANK-OIL FILTER $1.30 2
(25) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 1
(26) OIL TANK 3FW710100M 3FW-71010-0 $89.56 1
(27) OIL TANK CAP 3C8710150M 3C8-71015-0 $10.12 1
(28) GASKET 36-52-2 3C8710160M 3C8-71016-0 $2.56 1
(29) TANK CAP HOOK 3C8710170M 3C8-71017-0 $10.12 1
(30) TANK CAP CHECK VALVE 3C8710180M 3C8-71018-0 $8.52 1
(31) OIL LEVEL SENSOR 3T5710200M 3T5-71020-0 $39.68 1
(32) BOLT 9101030630M 910103-0630 $1.21 3
(33) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(34) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(35) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(36) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 3
(37) OIL FILTER 3C7710300M 3C7-71030-0 $51.01 1
(38) CUP 3B7022370M 3B7-02237-0 $7.34 1
(39) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(40) FILTER 3C7710330M 3C7-71033-0 $12.70 1
(41) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(42) NUT 9301030800M 930103-0800 $1.99 1
(43) WASHER 9401030800M 940113-0800 $0.84 2
