9. MAGNETO

Click Here for Microfiche Usage Tip

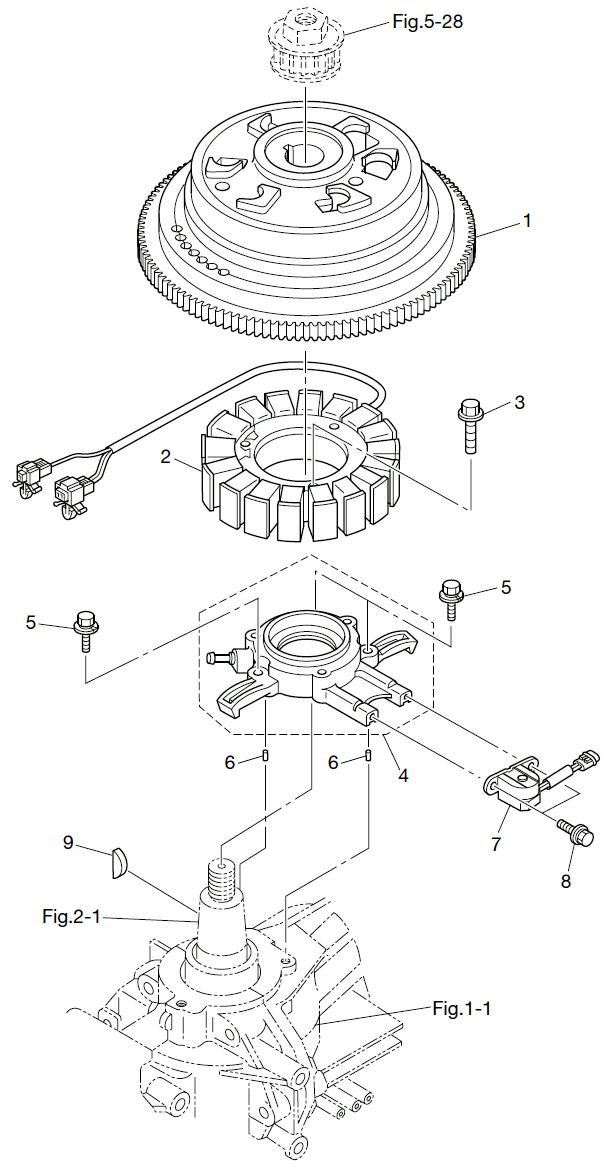

(1) FLYWHEEL W/GEAR(2) ALTERNATOR ASSY(3) BOLT(4) COIL BRACKET(5) BOLT(5) BOLT(6) DOWEL PIN 6-12(6) DOWEL PIN 6-12(7) PICK-UP COIL(8) BOLT(9) KEY



Parts List
2013 :: 75 HP :: TLDI Nissan NSD75C2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL W/GEAR 3FW060910M 3FW-06091-0 ZF9116 $0.00 1 Sold Out View More Details
(2) ALTERNATOR ASSY 3FW060230M 3FW-06023-0 $383.44 1 Sold Out View More Details
(3) BOLT 9101035630M 910113-5630 $1.15 3
(4) COIL BRACKET 3FW060080M 3FW-06008-0 $31.74 1
(5) BOLT 9101035630M 910113-5630 $1.15 4
(6) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(7) PICK-UP COIL 3T5061450M 3T5-06145-0 CRANK POSITION SENSOR $54.80 1
(8) BOLT 9101035512M 9101E3-5512 $0.00 2 Sold Out View More Details
(9) KEY MAGNETO 334001310M 334-00131-0 MAGNETO $3.39 1
