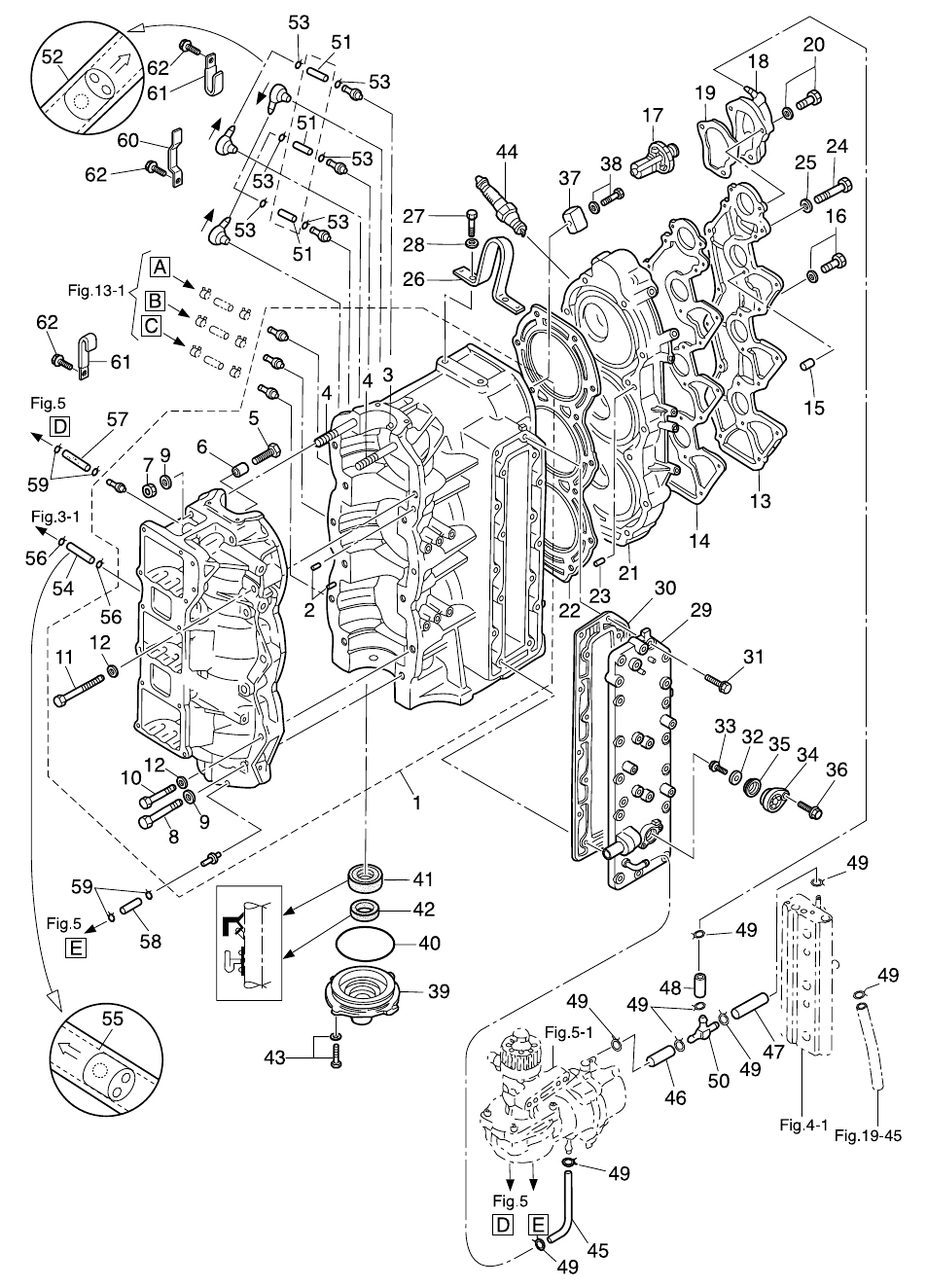

1. CYLINDER & CRANK CASE

Click Here for Microfiche Usage Tip
(1) CYL BLOCK & CRANKCASE ASSY(2) DOWEL PIN 6-12(3) DOWEL PIN(4) STUD(4) STUD(5) BOLT(6) COLLAR 6.2-9-9.3(7) NUT 10-P1.25(8) BOLT(9) WASHER 10.5-20-3.2(9) WASHER 10.5-20-3.2(10) BOLT(11) BOLT(12) WASHER 8.5-19.5-3.2(12) WASHER 8.5-19.5-3.2(13) CYLINDER HEAD COVER(14) CYLINDER HEAD COVER GASKET(15) DOWEL PIN 4-10(16) BOLT(17) THERMOSTAT(18) THERMOSTAT CAP ASSY(19) THERMOSTAT CAP GASKET(20) BOLT(21) CYLINDER HEAD(22) CYLINDER HEAD GASKET(23) DOWEL PIN 4-10(24) BOLT(25) WASHER 8.5-19.5-3.2(26) HANGER(27) BOLT(28) WASHER(29) EXHAUST COVER ASSY(30) EXHAUST COVER GASKET(31) BOLT(32) ANODE(33) BOLT(34) ANODE PLUG(35) SEAL RING(36) BOLT(37) ANODE(38) BOLT(39) CRANKCASE HEAD(40) O-RING 2-74.5(41) OIL SEAL 35-58-9(42) OIL SEAL 19.6-35-10(43) BOLT(44) SPARK PLUG (IZFR6Q)(45) HOSE(46) HOSE(47) HOSE(48) HOSE(49) CLIP o10(49) CLIP o10(49) CLIP o10(49) CLIP o10(49) CLIP o10(49) CLIP o10(49) CLIP o10(49) CLIP o10(50) NIPPLE ASSY (CHECK VALVE)(51) HOSE(51) HOSE(51) HOSE(52) CHECK VALVE(53) CLIP o7(53) CLIP o7(53) CLIP o7(53) CLIP o7(53) CLIP o7(53) CLIP o7(54) HOSE(55) CHECK VALVE(56) CLIP o7(56) CLIP o7(57) PIPE(58) PIPE(59) CLIP o6.9(59) CLIP o6.9(60) CLAMP(61) CLAMP(61) CLAMP(62) BOLT(62) BOLT(62) BOLT



Parts List
2013 :: 75 HP :: TLDI Nissan NSD75C2 :: CYLINDER & CRANK CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYL BLOCK & CRANKCASE ASSY 3FWB011001 3FWB01100-1 $2,376.57 1 Sold Out View More Details
(2) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(3) MAIN BEARING DOWEL PIN 3T9001170M 3T9-00117-0 $6.39 1
(4) STUD BOLT 9153241065M 915324-1065 $0.00 2 Sold Out View More Details
(5) BOLT 9101030618M 910103-0618 ADVANCER ARM STOPPER $0.00 1 Sold Out View More Details
(6) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 ADVANCER ARM STOPPER $4.06 1
(7) NUT 10-P 1.25 9311211000M 931121-1000 $1.47 2
(8) BOLT 9161291065M 916129-1065 $2.37 6
(9) WASHER 10.5-20-3.2 3B7011160M 3B7-01116-0 $0.75 8
(10) BOLT 9161240850M 916124-0850 $1.71 5
(11) BOLT 9161240865M 916124-0865 $1.76 1
(12) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 6
(13) CYLINDER HEAD COVER 3T9B010210 3T9B01021-0 $77.75 1
(14) CYLINDER HEAD COVER GASKET 3T9010240M 3T9-01024-0 $19.12 1
(15) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(16) BOLT 9101035625M 910103-5625 $1.47 3
(17) THERMOSTAT 3C7010300M 3C7-01030-0 PRV 60C $41.18 1
(18) THERMOSTAT CAP 3T9B010600 3T9B01060-0 NIPPLE $18.73 1
(19) THERMOSTAT CAP GASKET 3T9010321M 3T9-01032-0 $4.10 1
(20) BOLT 9101E35640M 910113-5640 $1.68 3
(21) CYLINDER HEAD 3FWB010910 3FWB01091-0 $407.93 1
(22) CYLINDER HEAD GASKET 3T9010050M 3T9-01005-0 $39.82 1
(23) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(24) BOLT 9161290875M 916129-0875 $1.71 14
(25) WASHER 8.5-19.5-3.2 345010150M 345-01015-0 $1.41 14
(26) HANGER 3C7015132M 3C7-01513-2 $0.00 1 Sold Out View More Details
(27) BOLT 9101140820M 910114-0820 $1.39 2
(28) WASHER 9401030800M 940113-0800 $0.84 2
(29) EXHAUST COVER ASSY 3FWB023000 3FWB02300-0 $0.00 1 Sold Out View More Details
(30) EXHAUST COVER GASKET 3FW023050M 3FW-02305-0 $9.37 1
(31) BOLT 9101E35625M 910113-5625 $1.47 16
(32) ANODE 369602181M 369-60218-1 $7.42 1
(33) BOLT 9101030616M 910113-0616 $0.98 1
(34) ANODE PLUG 3FW011430M 3FW-01143-0 $0.00 1 Sold Out View More Details
(35) SEAL RING 3FW011460M 3FW-01146-0 $20.59 1
(36) BOLT 9101035620M 910103-5620 $1.30 1
(37) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(38) BOLT 9101035630M 910113-5630 $1.15 1
(39) CRANKCASE HEAD 3B7012912M 3B7-01291-1 $44.46 1
(40) O-RING 2-74.5 171000530M 171-00053-0 $3.91 1
(41) OIL SEAL 35-58-9 3T9001210M 3T9-00121-0 $16.11 1
(42) OIL SEAL 19.6-35-10 3C7012150M 3C7-01215-0 $15.44 1
(43) BOLT 9101035620M 910103-5620 $1.30 2
(44) SPARK PLUG (IZFR6Q) 970111111M 9701-1-1111 NGK $28.10 3
(45) HOSE 98AB50780M 98AB-50-780 EXHAUST-AIR COMP / 98AB-501000 $11.41 1
(46) HOSE 98AB50065M 98AB-50-065 AIR COMP-T-NIPPLE / 98AB-501000 $11.41 1
(47) HOSE 98AB50065M 98AB-50-065 T-NIPPLE-AIR RAIL / 98AB-501000 $11.41 1
(48) HOSE 98AB50115M 98AB-50-115 THERMO CAP-T-NIPPLE / 98AB-501000 $11.41 1
(49) CLIP ø10 338022150M 338-02215-0 $1.41 9
(50) T-NIPPLE (WITH VALVE) 3T7011750M 3T7-01175-0 $7.74 1
(51) HOSE 98AL40185M 98AL-40-185 PASSAGE-CYLINDER / 98AL-401000 $8.81 3
(52) LINE CHECK VALVE 393011600M 393-01160-0 TRANSFER PASSAGE $4.31 3
(53) CLIP ø 7 338011330M 338-01133-0 TRANSFER PASSAGE $1.04 6
(54) HOSE 98AL40240M 98AL-40-240 AIR BOX-#2C/CASE / 98AL-401000 $8.81 1
(55) LINE CHECK VALVE 393011600M 393-01160-0 AIR BOX-#2C/CASE $4.31 1
(56) CLIP ø 7 338011330M 338-01133-0 AIR BOX-#2C/CASE $1.04 2
(57) PIPE 99AA20320M 99AA-2-0320 AIR COMP-#1C/CASE / 99AA-201000 $7.71 1
(58) PIPE 99AA20590M 99AA-2-0590 AIR COMP-#3C/CASE / 99AA-201000 $7.71 1
(59) CLIP ø 6.9 3B7090520M 3B7-09052-0 AIR COMP-#1 3C/CASE $0.00 4 Sold Out View More Details
(60) CLAMP 3FW069720M 3FW-06972-0 $3.40 1 Sold Out View More Details
(61) CLAMP 3FY069720M 3FY-06972-0 $3.40 2 Sold Out View More Details
(62) BOLT 9101035612M 910103-5612 $1.07 3
